U 3000 - Swisher Multi-Tool Engine Cover, Fan Cover, Reed Valve Parts Diagram

Multi-Tool

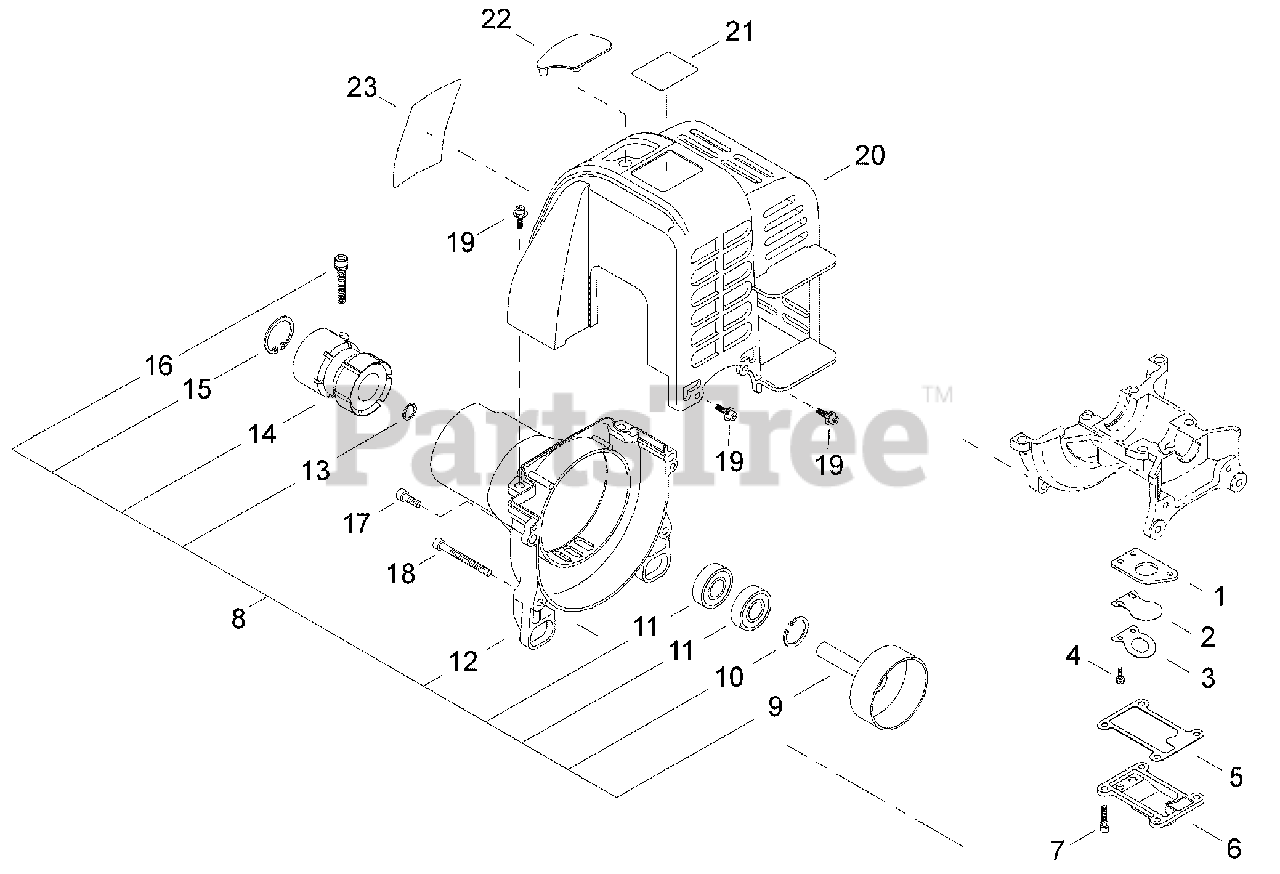

Engine Cover, Fan Cover, Reed Valve Parts Diagram

  • Title
1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$11.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 6

0

6

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$5.99

$

Usually ships in 2-4 days

0

7

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 60902-98022

FAN CASE ASSY
(Superseded to 60902-98023)

$76.99

$

Usually ships in 2-4 days

0

9

Echo 20087-31211

DRUM, CLUTCH
(Superseded to A556000960)

$23.99

$

In Stock, Qty 9

0

10

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

11

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 14

0

12

Echo 62901-31112

CASE, FAN
(Superseded to A172001840)

$50.99

$

Usually ships in 2-4 days

0

13

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

14

Echo 20087-31411

CUSHION
(Superseded to A575000190)

$16.99

$

In Stock, only 1 left!

0

15

Echo 02432-40170

RING, RETAINING - 40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

16

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

18

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

19

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0

20

Echo 62917-32110

COVER, ENGINE
(Superseded to A160001871)

$15.99

$

In Stock, only 1 left!

0

21

Echo 65029-91320

LABEL - MODEL U3000

$

$

Not available

22

Echo 62901-32312

COVER, SPARK PLUG
(Superseded to A429000140)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 62917-91330

LABEL - E4

$

$

Not available
