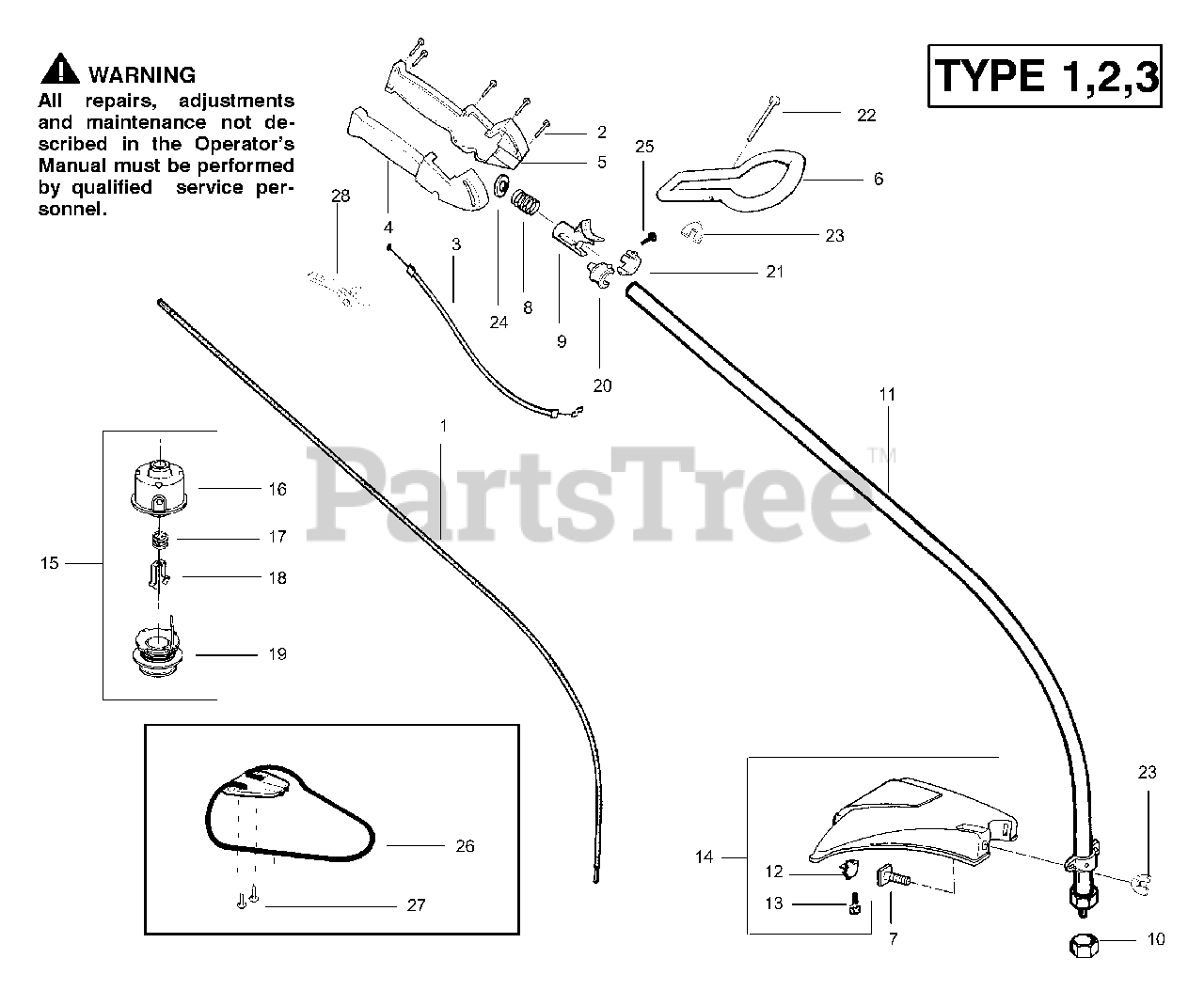

Twist'n Edge - Weed Eater String Trimmer, Type 3 Driveshaft & Cutting Head Parts Diagram

String Trimmer, Type 3

Driveshaft & Cutting Head Parts Diagram

  • Title

1

Poulan 530094551

Drive Shaft-Flex (Type 1)

$

$

Not available

1

Poulan 530053613

Drive Shaft-Flex (Type 2,3)

$

$

Not available

2

Poulan 530016179

Screw

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530049066

Assy-Throttle Cable (Type 1)
(Superseded to 530071550)

$12.99

$

Usually ships in 3-10 days

0

3

Poulan 530056493

Assy-Throttle Cable (Type 2,3)

$8.99

$

Usually ships in 3-10 days

0

4

Poulan 530047923

Throttle Hsg. (Right)

$

$

Not available

5

Poulan 530047924

Throttle Hsg. (Left)

$

$

Not available

6

Poulan 530047919

Assist Handle

$6.99

$

In Stock, only 2 left!

0

7

Poulan 530015820

Bolt-Shield

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530042084

Spring-Compression

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530054060

Actuator

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530094543

Dust Cup (Type 1)

$

$

Not available

10

Poulan 530095574

Dust Cup (Type 2,3)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530095703

Drive Shaft Hsg. Ass'y

$

$

Not available

11

Poulan 530095941

(Type 1)

$

$

Not available

11

Poulan 530095703

(Type 2,3)

$

$

Not available

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 16

0

14

Poulan 530069930

Shield Kit Ass'y.

Note: (Incl. 12 & 13)

$

$

Not available

15

Poulan 952701676

Cutting Head Ass'y.

Note: (Incl. 16-19)

$

$

Not available

16

Poulan 530095770

Hub Ass'y

$20.99

$

Usually ships in 3-10 days

0

17

Poulan 530401958

Spring-Return

$4.99

$

In Stock, Qty 6

0

18

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

19

Poulan 952701678

Spool w/Line

$

$

Not available

20

Poulan 530054159

Locator-left

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530054160

Locator-right

$8.99

$

Usually ships in 3-10 days

0

22

Poulan 530016173

Bolt-Handle

$

$

Not available

23

Poulan 530016118

Nut-Wing
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

24

Poulan 530016193

Washer

$

$

Not available

25

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

26

Poulan 530054459

Assy. wire form

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530016179

Screw

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530038682

Trigger

$3.49

$

In Stock, Qty 5

0

Poulan 530086930

Operator's Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530088832

(Type 1)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530086930

(Type 2,3)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530054863

Decal-Starting Instruction

Note: Not Shown

$

$

Not available
