TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Seat, Mount & Trailer Frame Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

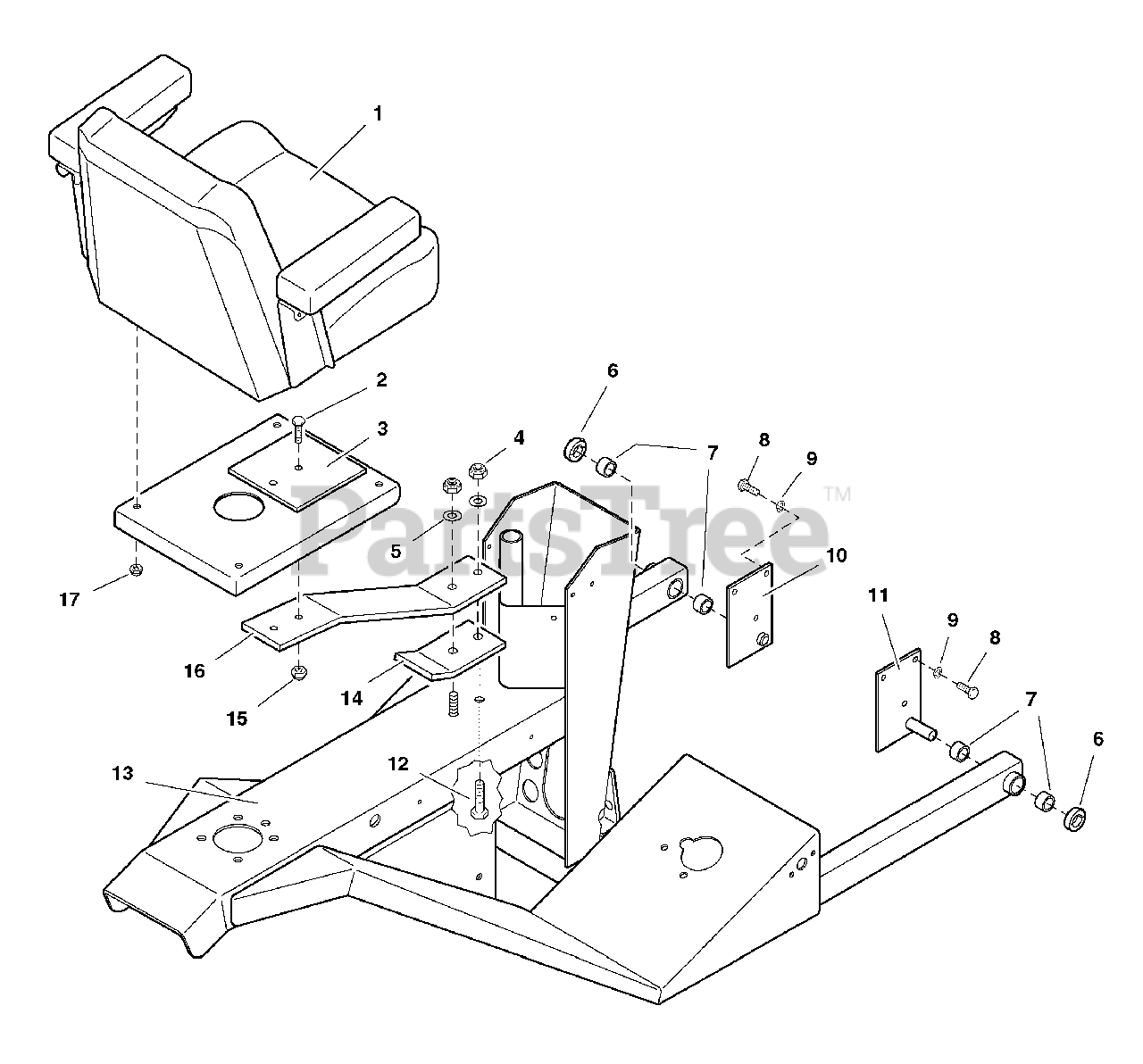

Seat, Mount & Trailer Frame Group Parts Diagram

  • Title

1

Simplicity 5022973SM

SEAT, Gray, Derby (complete)
(Superseded to 5022031SM)

$707.99

$

Usually ships in 2-12 days

0

*

Simplicity 5020930X3

SEAT ADJUSTER RAILS (set of 2)
(Superseded to 5020930X3SM)

$253.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

3

Simplicity 5045574CSM

PLATE, Seat Mount

$113.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025094

NUT, Hex, Nylon Lock, 7/16-20
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025157

WASHER, 7/16
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

6

Simplicity 5010477

COLLAR, Split, 3/4
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

7

Simplicity 5020876P

BUSHING, Plastic
(Superseded to 5023344SM)

$9.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 5025170SM

WASHER, Lock, 5/16

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5045570CSM

PIVOT BRACKET-LH

$

$

Not available

11

Simplicity 5045571CSM

PIVOT BRACKET-RH

$

$

Not available

12

Simplicity 502529114

CAPSCREW, Hex Hd, 7/16-20 x 1-3/4

$

$

Not available

13

Simplicity 5046180CSM

TRAILER FRAME

$

$

Not available

14

Simplicity 5041836KITSM

SUPPORT, Seat Spring

$97.99

$

In Stock, only 1 left!

0

15

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 5041836KITSM

SEAT SPRING

$97.99

$

In Stock, only 1 left!

0

17

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
