TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Motion Control Group - Trailer Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

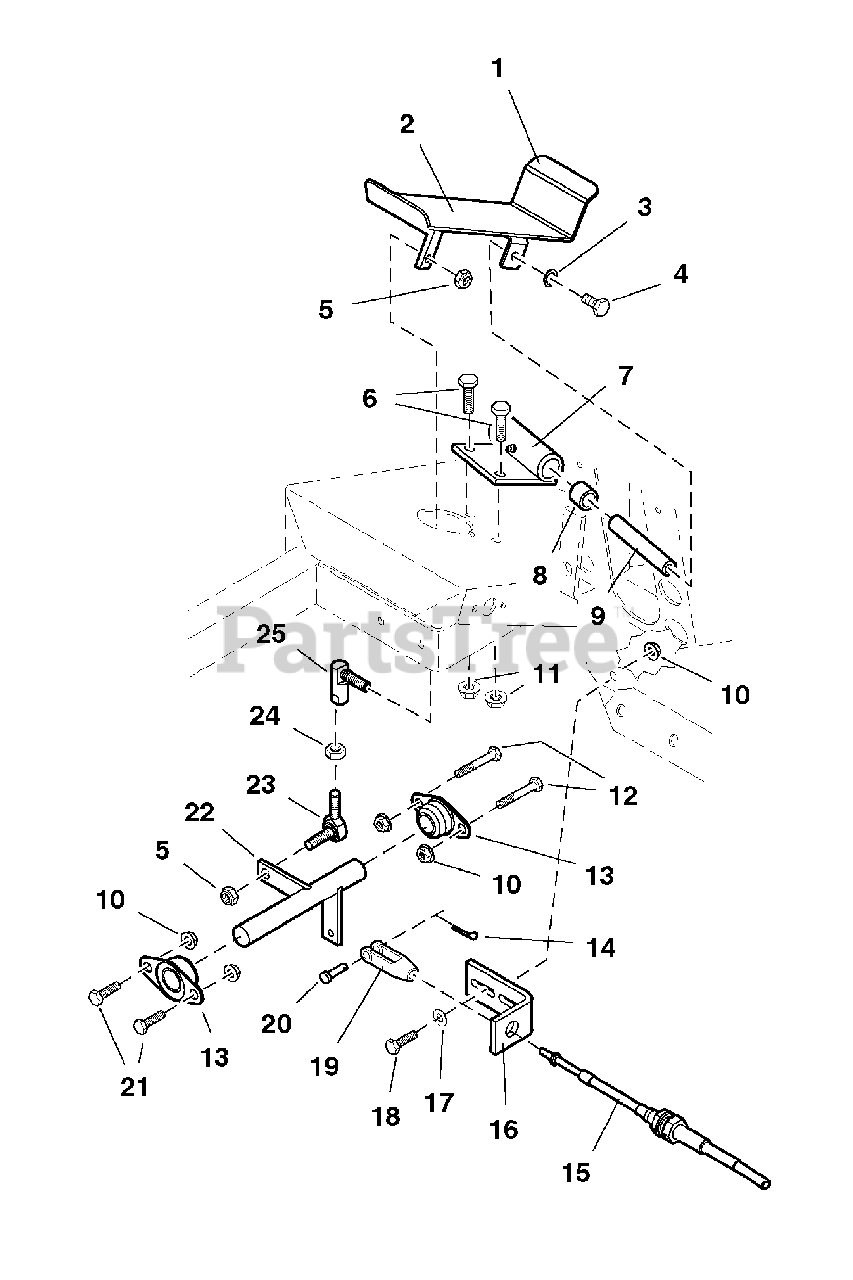

Motion Control Group - Trailer Parts Diagram

  • Title

1

Simplicity 5042185CSM

FOOT CONTROL PEDAL

$111.99

$

Usually ships in 2-12 days

0

2

Simplicity 5042281SM

SAFETY WALK

$9.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025171SM

WASHER, Lock, 3/8

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025097SM

NUT, Hex, Nylon Lock, 3/8-24

$

$

Not available

6

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

7

Simplicity 5042137CSM

FOOT PEDAL PIVOT MOUNT, complete (includes ref 8)

$91.99

$

Usually ships in 2-12 days

0

8

Simplicity 5020875PSM

BUSHING, Plastic

$17.99

$

Usually ships in 2-12 days

0

9

Simplicity 5042147SM

PEDAL PIVOT SHAFT

$20.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, Qty 12

0

11

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 5025011X20

CAPSCREW, Hex Hd, 5/16-18 x 2-1/2
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5021098SM

BUSHING, Flange

$13.99

$

In Stock, Qty 5

0

14

Simplicity 50252044

PIN, Cotter

$

$

Not available

15

Simplicity 5021089SM

SPEED CONTROL CABLE

$174.99

$

Usually ships in 2-12 days

0

16

Simplicity 5042170CSM

CABLE BRACKET

$25.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 5021104SM

CLEVIS, Plastic, 1/4-28

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 50252128

PIN, Clevis

$

$

Not available

21

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5042184CSM

BELL CRANK

$

$

Not available

23

Simplicity 5021049

BALL JOINT, 3/8-24 Male, Studded

$28.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025035SM

NUT, Hex, 3/8-24
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 5020805SM

BALL JOINT, 3/8-24 Female, Studded

$

$

Not available
