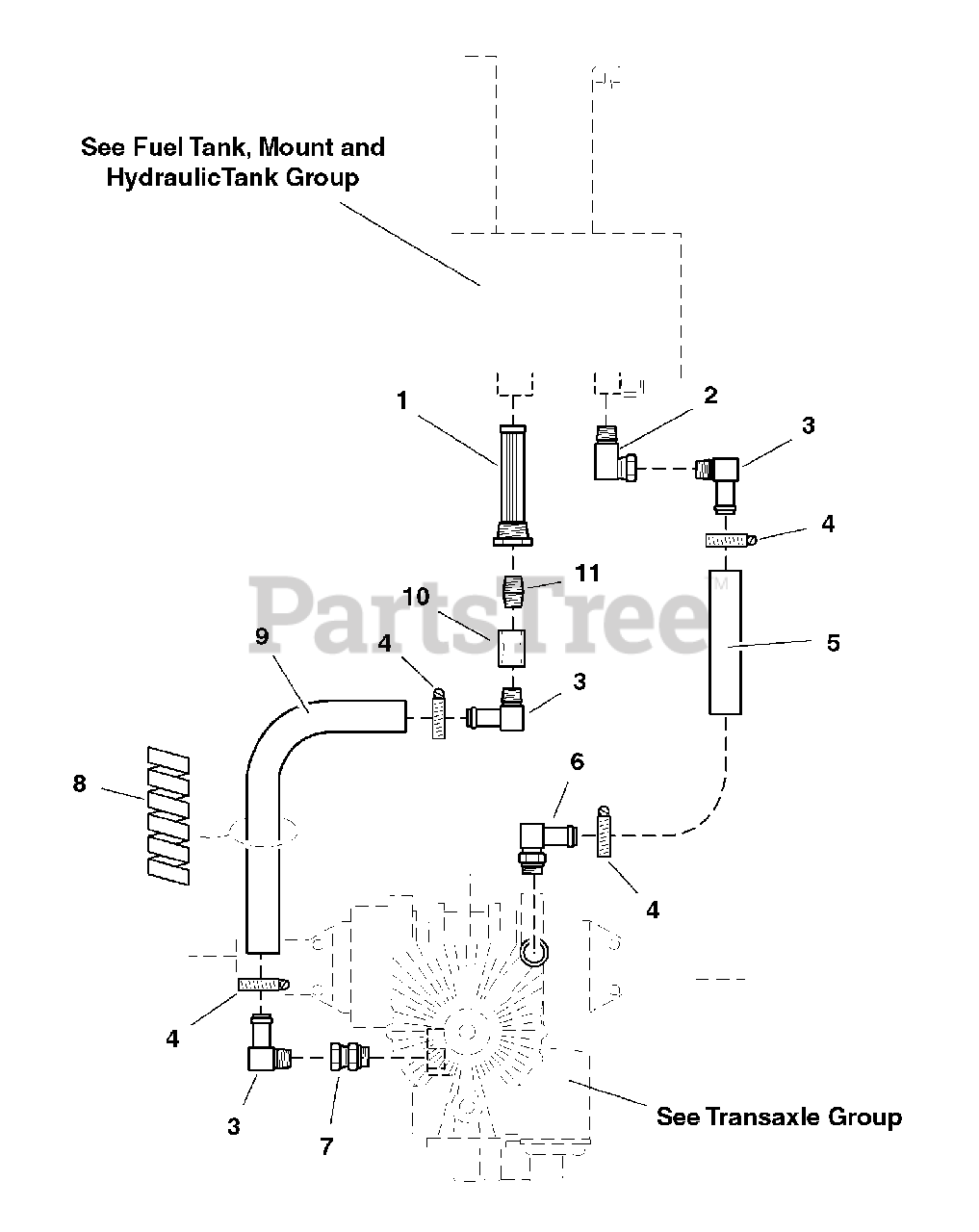

TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Hydraulic Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

Hydraulic Group Parts Diagram

  • Title
1

$68.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021132

FITTING, 1/2 NPT Swivel, 90 Deg.
(Superseded to 5021132FS)

$21.99

$

Usually ships in 2-12 days

0

3

Simplicity 5021160

FITTING, 1/2 NPT - 3/4 Hose, 90 Deg.
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

4

Simplicity 5021164SM

HOSE CLAMP, #10

$3.99

$

In Stock, only 1 left!

0

$

$

Not available

6

Simplicity 5021161

FITTING, 7/8 O-Ring - 3/4 Hose, 90 Deg.

$43.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021166

FITTING, 7/8 O-Ring - 1/2 NPT, Swivel
(Superseded to 5021166SM)

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 505083712

PROTECTIVE COIL, 12"

$

$

Not available

$

$

Not available

10

Simplicity 5020985

COUPLER, 1/2 NPT

$

$

Not available

11

Simplicity 5021163

CLOSE NIPPLE, 1/2 NPT

$

$

Not available
