TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Engine Accessories & Service Replacement Parts Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

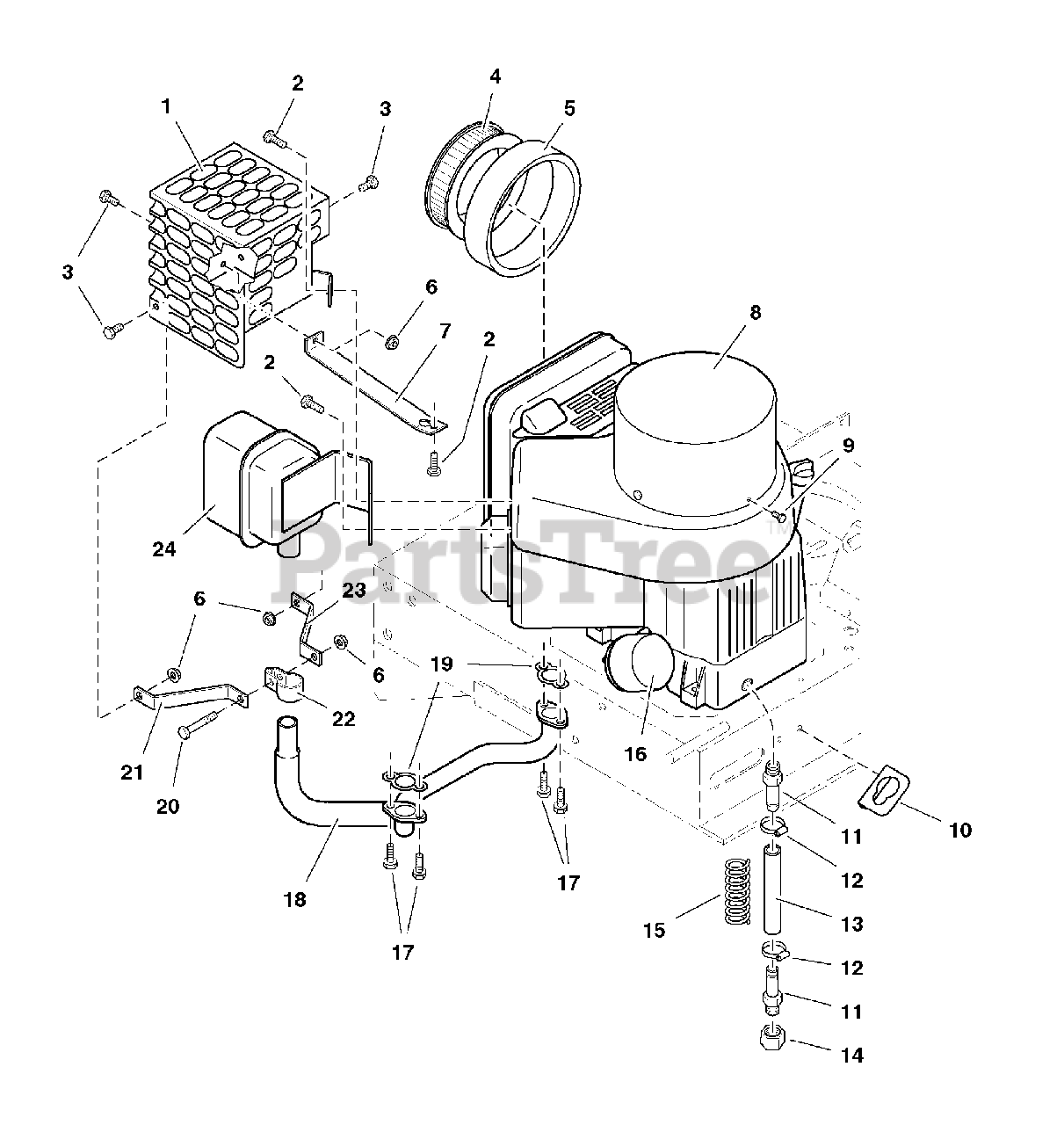

Engine Accessories & Service Replacement Parts Group Parts Diagram

  • Title

1

Simplicity 5045347CSM

MUFFLER GUARD

$88.99

$

Usually ships in 2-12 days

0

2

SCREW (805247)

$

$

Not available

3

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

4

AIR FILTER (805267)

$

$

Not available

5

PRE-CLEANER (805113)

$

$

Not available

6

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 5045346CSM

BRACKET, Bottom

$5.99

$

Usually ships in 2-12 days

0

8

DEBRIS GUARD (808192)

$

$

Not available

9

SCREW (810080)

$

$

Not available

10

Simplicity 5046166CSM

OIL DRAIN ANCHOR

$

$

Not available

11

Simplicity 5021372SM

FITTING, 3/8NPT - 1/2 Str.

$15.99

$

Usually ships in 2-12 days

0

12

Simplicity 5021392SM

HOSE CLAMP

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 5050857X6

HOSE, 6"

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 5021466SM

CAP, 3/8NPT

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 5022035SM

SPRING, Compression

$17.99

$

Usually ships in 2-12 days

0

16

Simplicity 50211781

OIL FILTER (492932)

$

$

Not available

17

SCREW (805158)

$

$

Not available

18

MANIFOLD (805778X)

$

$

Not available

19

EXHAUST GASKET (805024)

$

$

Not available

20

Simplicity 502501116

CAPSCREW, Hex Hd, 5/16-18 x 2

$

$

Not available

21

Simplicity 5045345CSM

BRACKET, Front, Left

$11.99

$

Usually ships in 2-12 days

0

22

MANIFOLD CLAMP (807595)

$

$

Not available

23

Simplicity 5045349CSM

BRACKET, Front-Right

$9.49

$

Usually ships in 2-12 days

0

24

MUFFLER (807953X)

$

$

Not available
