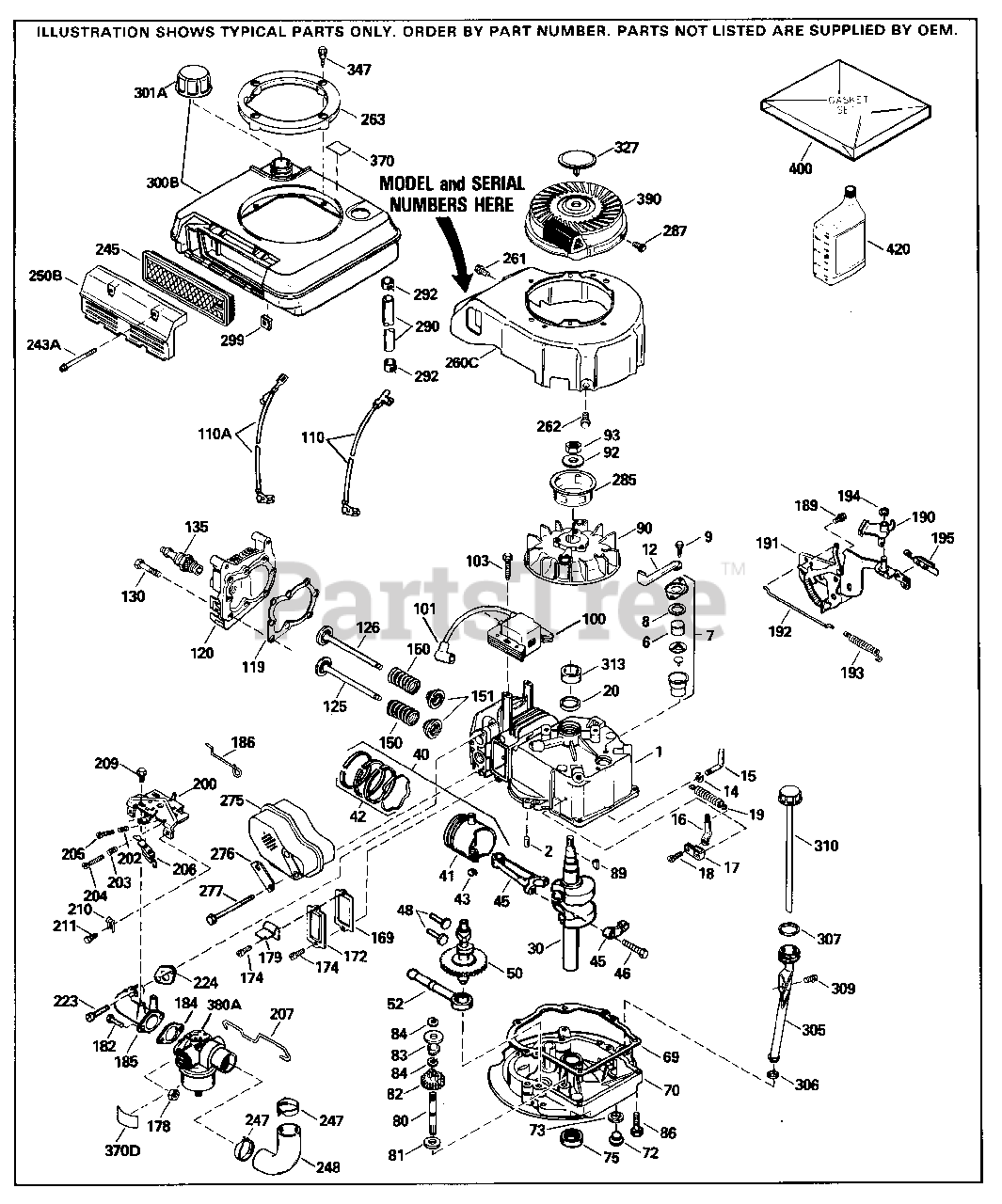

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 36478A

"Cylinder (Incl. 2,7,20 & 125)

$138.99

$

Usually ships in 3-12 days

0

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 33734

Breather Element

$1.99

$

In Stock, Qty 12

0

7

Tecumseh 36557

Breather Body Ass'y. (Incl. 6 & 12)

$

$

Not available

12

Tecumseh 36558

Breather Cover & Tube

$10.99

$

Usually ships in 3-12 days

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30589

Governor Rod (Incl. 14)

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 31383A

Governor Lever

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 31335

Governor Lever Clamp

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 36281

Extension Spring

$1.49

$

In Stock, only 3 left!

0

20

Tecumseh 32600

Oil Seal

$

$

Not available

30

Tecumseh 36237A

Crankshaft

$

$

Not available

40

Tecumseh 36073

Piston, Pin & Ring Set (Std.)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

40

Tecumseh 36074

Piston, Pin & Ring Set (.010" OS)
(Superseded to 40045)

$

$

Not available

40

Tecumseh 36075

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

Tecumseh 36070

Piston & Pin Ass'y. (Std.) (Incl. 43)
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

41

Tecumseh 36071

Piston & Pin Ass'y. (.010" OS) Incl. 43
(Superseded to 40045)

$

$

Not available

41

Tecumseh 36072

Piston & Pin Ass'y. (.020" OS) Incl. 43
(Superseded to 36075)

$

$

Not available

42

Tecumseh 36076

Ring Set (Std.)
(Superseded to 40006)

$42.99

$

Usually ships in 3-12 days

0

42

Tecumseh 36077

Ring Set (.010" OS)
(Superseded to 40045)

$

$

Not available

42

Tecumseh 36078

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 30963B

Connecting Rod Ass'y. (Incl. 46)

$29.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

50

Tecumseh 35990

Camshaft (BCR)

$39.99

$

Usually ships in 3-12 days

0

52

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

69

Tecumseh 35261

* Mounting Flange Gasket
(Superseded to 37609)

$2.99

$

Usually ships in 3-12 days

0

70

Tecumseh 34311D

Mounting Flange (Incl. 72 thru 83)
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

72A

Tecumseh 28534

Oil Drain Plug

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 36083

Oil Drain Plug

$6.99

$

In Stock, Qty 5

0

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, only 4 left!

0

80

Tecumseh 30574A

Governor Shaft

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear Ass'y.(Incl. 81)

$13.99

$

In Stock, only 2 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, Qty 5

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Flywheel Key (also available in Packa ged Part #740007B)

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611123

Flywheel
(Superseded to 611213)

$151.99

$

In Stock, only 1 left!

0

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State Ignition
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, Qty 5

0

103

Tecumseh 651007

Screw, Torx T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 36230

Ground Wire

$1.99

$

In Stock, only 2 left!

0

119

Tecumseh 36477

* Cylinder Head Gasket
(Superseded to 36443)

$5.99

$

In Stock, Qty 11

0

120

Tecumseh 36476

Cylinder Head

$32.99

$

Usually ships in 3-12 days

0

125

Tecumseh 36471

Exhaust Valve (Std.) (Incl. 151)

$13.99

$

Usually ships in 3-12 days

0

125

Tecumseh 36472

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

126

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

130

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 3 left!

0

135

Tecumseh 35395

Resistor Spark Plug (RJ19LM) also ava ilable in Packaged Part #740081

$3.49

$

In Stock, Qty 20+

0

150

Tecumseh 35991

Valve Spring
(Superseded to 31672)

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Valve Spring Cap

$1.99

$

In Stock, only 1 left!

0

169

Tecumseh 27234A

* Valve Cover Gasket

$5.99

$

In Stock, only 2 left!

0

172

Tecumseh 32755

Valve Cover

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 5

0

179

Tecumseh 30593

Retainer Clip

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

184

Tecumseh 26756

* Carburetor To Intake Pipe Gasket

$2.99

$

In Stock, Qty 12

0

185

Tecumseh 31384A

Intake Pipe (Incl. 224)

$21.99

$

In Stock, only 2 left!

0

186

Tecumseh 34337

Governor Link

$1.99

$

In Stock, only 1 left!

0

200

Tecumseh 33205A

Control Bracket (Incl. 202 thru 206)

$38.99

$

Usually ships in 3-12 days

0

202

Tecumseh 36482

Compression Spring

$3.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

205

Tecumseh 650777

Screw, 6-32 x 21/32"
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 1 left!

0

207

Tecumseh 34336

Throttle Link
(Superseded to 34336A)

$1.99

$

Usually ships in 3-12 days

0

209

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

215

Tecumseh 32410

Control Knob

$5.49

$

In Stock, only 4 left!

0

223

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

224

Tecumseh 34690A

* Intake Pipe Gasket

$4.49

$

In Stock, only 3 left!

0

238

Tecumseh 650806

Screw, 10-32 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

245

Tecumseh 34340

Air Filter (Poly) (also available in Packaged Part #740023B)

$4.99

$

In Stock, only 1 left!

0

261

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

262

Tecumseh 650831

Screw, 1/4-20 x 1/2"

$1.99

$

In Stock, only 3 left!

0

275

Tecumseh 36473

Muffler (Incl. 277)
(Superseded to 36473A)

$14.99

$

In Stock, only 2 left!

0

277

Tecumseh 650988

Screw, 1/4-20 x 2-5/16"

$4.49

$

In Stock, Qty 5

0

285

Tecumseh 35000A

Starter Cup

$9.49

$

In Stock, only 1 left!

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

In Stock, Qty 6

0

290

Tecumseh 30705

Fuel Line

$16.99

$

In Stock, Qty 5

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 12

0

298

Tecumseh 28763

Screw, 10-32 x 35/64"

$1.99

$

Usually ships in 3-12 days

0

305

Tecumseh 35577

Oil Fill Tube
(Superseded to 35577A)

$3.99

$

In Stock, only 2 left!

0

306

Tecumseh 34265

* "O"-Ring

$2.49

$

In Stock, only 1 left!

0

307

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 4 left!

0

309

Tecumseh 650562

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 9

0

310

Tecumseh 35578

Dipstick

$5.49

$

In Stock, only 1 left!

0

313

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

327

Tecumseh 35392

Starter Plug

$1.99

$

In Stock, only 1 left!

0

370A

Tecumseh 36261

Lubrication Decal

$

$

Not available

370B

Tecumseh 36507

Control Decal

$

$

Not available

390

Tecumseh 590732

Rewind Starter NOTE: This engine cou ld have been built with 590688 starte r. Refer to the design of the air int ake louvers for part identification. Individual starter parts do not inter change.
(Superseded to 590732A)

$62.99

$

In Stock, only 1 left!

0

400

Tecumseh 36481

* Gasket Set (Incl. items marked PK in notes) Incl. part #'s: 26756 (1), 272 34A (1), 33735 (1), 34265 (1), 34338 (1), 34690A (1), 35261 (1), 36477 (1)
(Superseded to 36481B)

$11.99

$

Usually ships in 3-12 days

0

416

Tecumseh 36085

Spark Arrestor Kit (Incl. 417) Option al

$12.99

$

Usually ships in 3-12 days

0

417

Tecumseh 650760

Screw, 8-32 x 3/8" (Optional)

$1.99

$

In Stock, only 3 left!

0

420

Tecumseh 730225

SAE 30 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 4 left!

0
