TVM195-150256D - Tecumseh Engine Engine Parts List #3 Parts Diagram

Engine

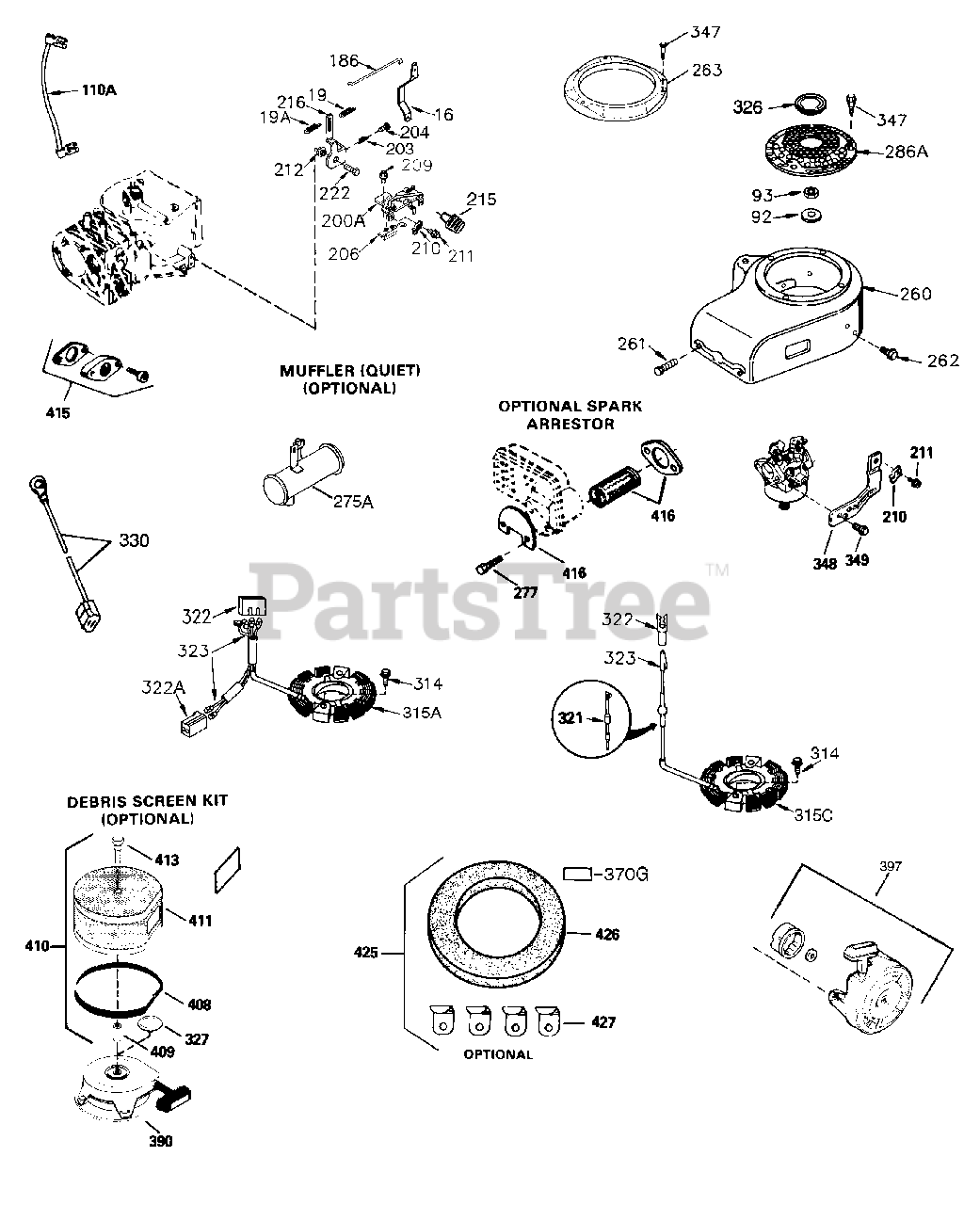

Engine Parts List #3 Parts Diagram

  • Title

16

Tecumseh 32651

Governor Lever

$

$

Not available

19A

Tecumseh 34043

Extension Spring

$1.99

$

In Stock, Qty 5

0

64

Tecumseh 650990

Screw, 5/16-18 x 15/32"

$3.99

$

In Stock, only 4 left!

0

92

Tecumseh 650880

Lock Washer

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Flywheel Nut

$1.99

$

Usually ships in 3-12 days

0

186

Tecumseh 33860

Governor Link

$1.99

$

In Stock, only 2 left!

0

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 6-32 x 21/32"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

209

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

215

Tecumseh 32410

Control Knob

$5.49

$

In Stock, only 4 left!

0

251A

Tecumseh 650825

Nut & Lock Washer, 1/4-20

$1.99

$

In Stock, only 1 left!

0

260

Tecumseh 33635C

Blower Housing

$

$

Not available

261

Tecumseh 650788

Screw, 5/16-18 x 3/4"

$1.99

$

In Stock, only 1 left!

0

262

Tecumseh 29747B

Screw, T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

277

Tecumseh 650729

Screw, 5/16-18 x 3-3/16"

$1.99

$

In Stock, Qty 5

0

314

Tecumseh 650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

322A

Tecumseh 610824

Connector Body

$

$

Not available

322

Tecumseh 610921

Connector Body

$1.99

$

Usually ships in 3-12 days

0

323

Tecumseh 610922

Terminal

$

$

Not available

327

Tecumseh 35392

Starter Plug

$1.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590671

Rewind Starter Note: This engine cou ld have been built with 590704 starte r. Refer to the design of the air int ake louvers for part identification. Individual starter parts do not inter change.
(Superseded to 590788)

$65.99

$

Usually ships in 3-12 days

0
