TTX691PKAE - Exmark Turf Tracer X-Series Walk-Behind Mower, Kawasaki Propane (SN: 312000000 - 312999999) (2012) LPG Fuel Assembly Parts Diagram

Turf Tracer X-Series Walk-Behind Mower, Kawasaki Propane

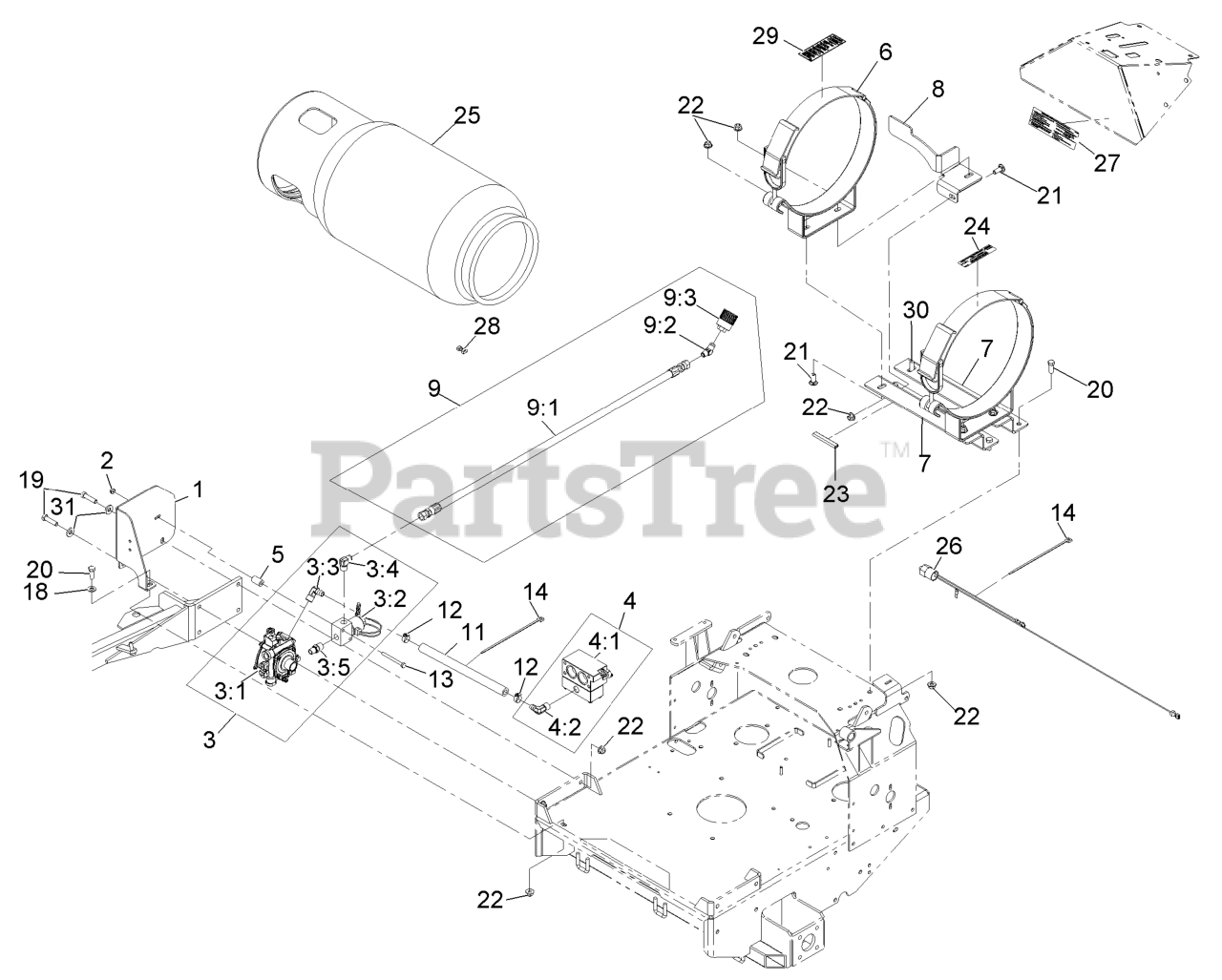

LPG Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-3623-01

REGULATOR MOUNT-TT

$

$

Not available

2

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Asm, Reg And Shutoff

Note: Not serviced separately

$

$

Not available

3:1

Exmark 116-2567

Regulator-Lp, T60

$

$

Not available

3:2

Exmark 116-2830

LPG SOLENOID VALVE ASM

$

$

Not available

3:3

Exmark 116-1127

ELBOW-90 DEG

$99.99

$

Usually ships in 3-6 days

0

3:4

Exmark 116-4184

ELBOW 90,3/8NPT X 3/8SAE

$

$

Not available

3:5

Exmark 93-1347

COUPLING-PIPE, MALE

$

$

Not available

4

Asm, Mixer

Note: Not serviced separately

$

$

Not available

4:1

Exmark 116-4264

MIXER,LP FX691V

$

$

Not available

4:2

Exmark 116-1127

ELBOW-90 DEG

$99.99

$

Usually ships in 3-6 days

0

5

Exmark 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 116-1074

BRACKETS, LPG TANK - HORI

$632.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1088-03

RISER, LPG TANK

$

$

Not available

8

Exmark 116-1089-03

BRACKET, LPG TANK INDEX

$

$

Not available

9

Asm, Lpg Fuel Hose

Note: Not serviced separately

$

$

Not available

9:1

Exmark 116-1454

116-1301
(Superseded to 116-1301)

$

$

Not available

9:2

Exmark 116-1055

ELBOW-45 DEG

$27.99

$

Usually ships in 3-6 days

0

9:3

Exmark 116-1073

CONNECTOR-LPG TANK, LH TH

$161.99

$

Usually ships in 3-6 days

0

11

Exmark 116-4188

HOSE-LP

$

$

Not available

12

Exmark 97-1271

CLAMP-HOSE

$3.99

$

In Stock, only 2 left!

0

13

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

14

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

24

Exmark 109-9849

DECAL,LPG TANK SPEC HORIZ

$20.99

$

Usually ships in 3-6 days

0

25

Exmark 109-9674

TANK,LPG 33LB

$537.99

$

Usually ships in 3-6 days

0

26

Exmark 116-1497

126-1779
(Superseded to 126-1779)

$

$

Not available

27

Exmark 109-9906

DECAL-TANK REPLACEMENT

$18.99

$

In Stock, only 2 left!

0

28

Exmark 32170-061

RECEPTICAL -FEM, .250, IN

$

$

Not available

29

Exmark 109-9875

DECAL-LPG WARNING

$12.99

$

Usually ships in 3-6 days

0

30

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

99

Exmark 116-1456

O-RING, LPG CONNECTOR (SV

Note: Not illustrated

$

$

Not available

99

Exmark 116-1457

WASHER,RUBBER LPG CONNECT

Note: Not illustrated

$

$

Not available
