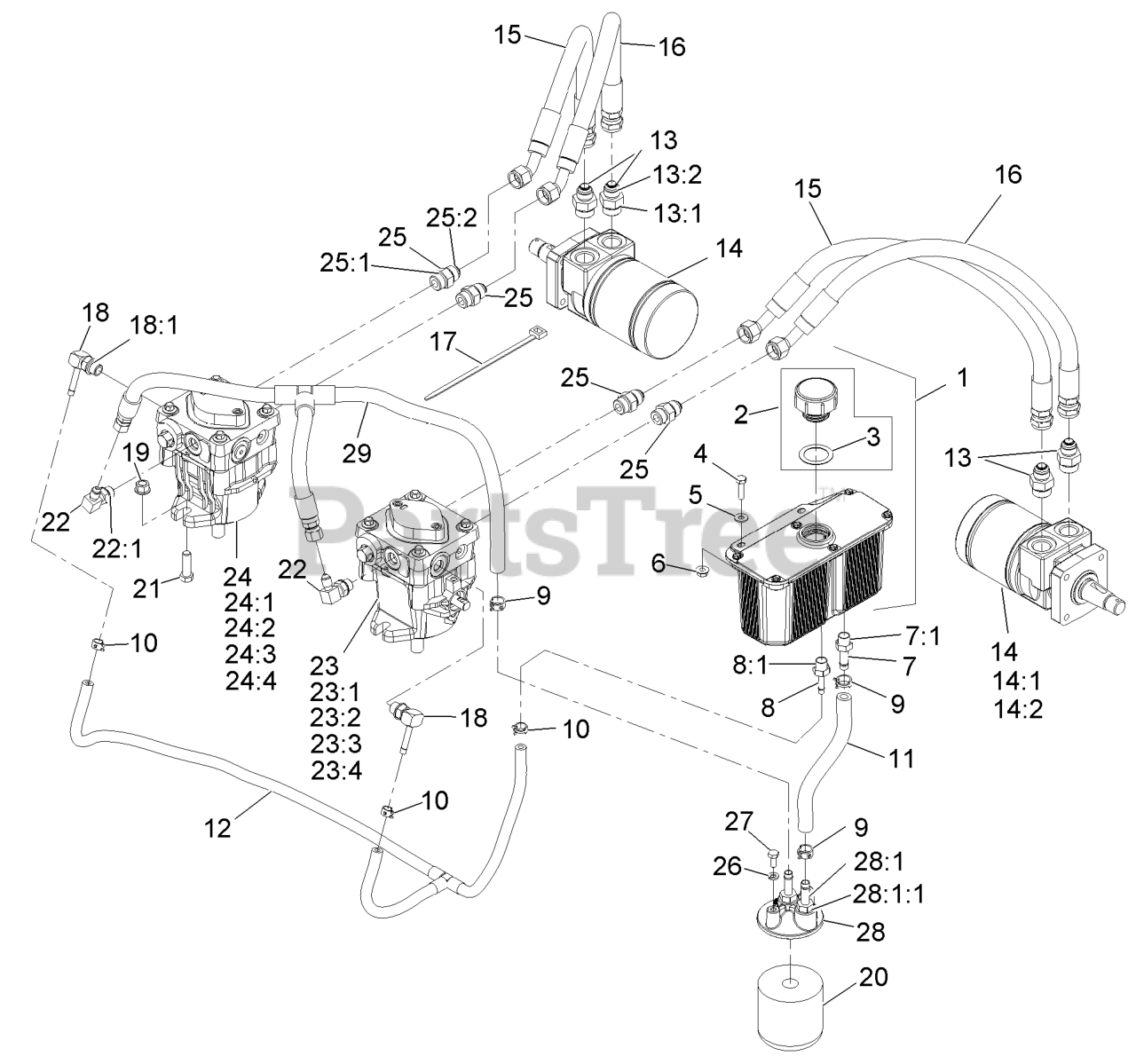

TTX691PKAE - Exmark Turf Tracer X-Series Walk-Behind Mower, Kawasaki Propane (SN: 312000000 - 312999999) (2012) Hydraulics Assembly Parts Diagram

Turf Tracer X-Series Walk-Behind Mower, Kawasaki Propane

Hydraulics Assembly Parts Diagram

  • Title

1

Exmark 103-1947

HYD RESERVOIR ASM

$263.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$27.99

$

In Stock, only 2 left!

0

3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, only 4 left!

0

4

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

7:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

8

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

8:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

9

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

11

Exmark 109-1010

HOSE,CASE DRAIN RH

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 103-4607

ASM,CASE DRAIN HOSE

$52.99

$

Usually ships in 3-6 days

0

13

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 2 left!

0

13:1

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 10

0

13:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

14:1

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

15

Exmark 103-4609

116-8646
(Superseded to 116-8646)

$94.99

$

In Stock, only 1 left!

0

16

Exmark 103-4610

116-8647
(Superseded to 116-8647)

$97.99

$

In Stock, only 4 left!

0

17

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

18

Exmark 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

18:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

19

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

20

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$47.99

$

In Stock, Qty 16

0

20

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32degF (0degC).

$47.99

$

In Stock, only 1 left!

0

21

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

22:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

23

Exmark 116-2495

PUMP-HYD PE RH TTH

$1317.99

$

Usually ships in 3-6 days

0

23:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

23:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

23:3

Exmark 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

23:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

24

Exmark 116-2494

PUMP-HYD PE LH TTH

$1317.99

$

Usually ships in 3-6 days

0

24:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

24:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

24:3

Exmark 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

24:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

25

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

25:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

25:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

27

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 103-2889

FILTER HEAD ASM

$107.99

$

Usually ships in 3-6 days

0

28:1

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

28:1:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

29

Exmark 103-4608

ASM,CHARGE HOSE

$80.99

$

Usually ships in 3-6 days

0
