TTX691KAECA - Exmark Turf Tracer X-Series Walk-Behind Mower, Kawasaki, CARB (SN: 312000000 - 312999999) (2012) Fuel Tank Assembly Parts Diagram

Turf Tracer X-Series Walk-Behind Mower, Kawasaki, CARB

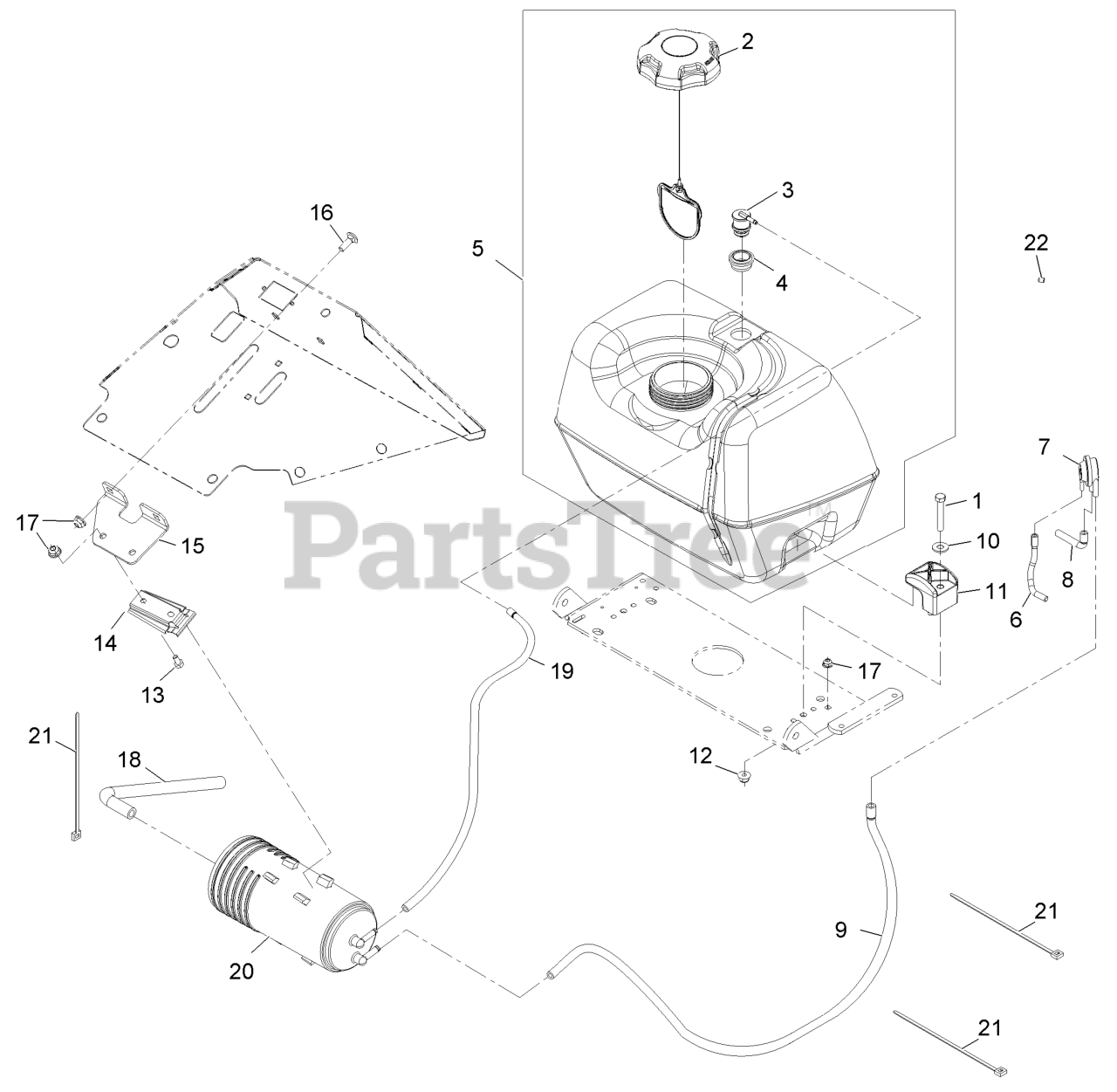

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

2

Exmark 115-4465

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

3

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$16.99

$

In Stock, only 4 left!

0

4

Exmark 119-6549

114-0284
(Superseded to 114-0284)

$2.99

$

In Stock, Qty 19

0

5

Exmark 116-3656

126-1525
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

6

Exmark 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

7

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

8

Exmark 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

9

Exmark 116-3116

HOSE-VENT, FORMED

$15.99

$

Usually ships in 3-6 days

0

10

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

14

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

15

Exmark 115-4486-01

BRACKET-CANISTER, CARBON

$14.99

$

Usually ships in 3-6 days

0

16

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

17

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

19

Exmark 114-0286

HOSE-VENT

$8.49

$

Usually ships in 3-6 days

0

20

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

21

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0
