TTX691KAE - Exmark Turf Tracer X-Series Walk-Behind Mower, Kawasaki FX691V (SN: 312000000 - 312999999) (2012) Electrical Assembly Parts Diagram

Turf Tracer X-Series Walk-Behind Mower, Kawasaki FX691V

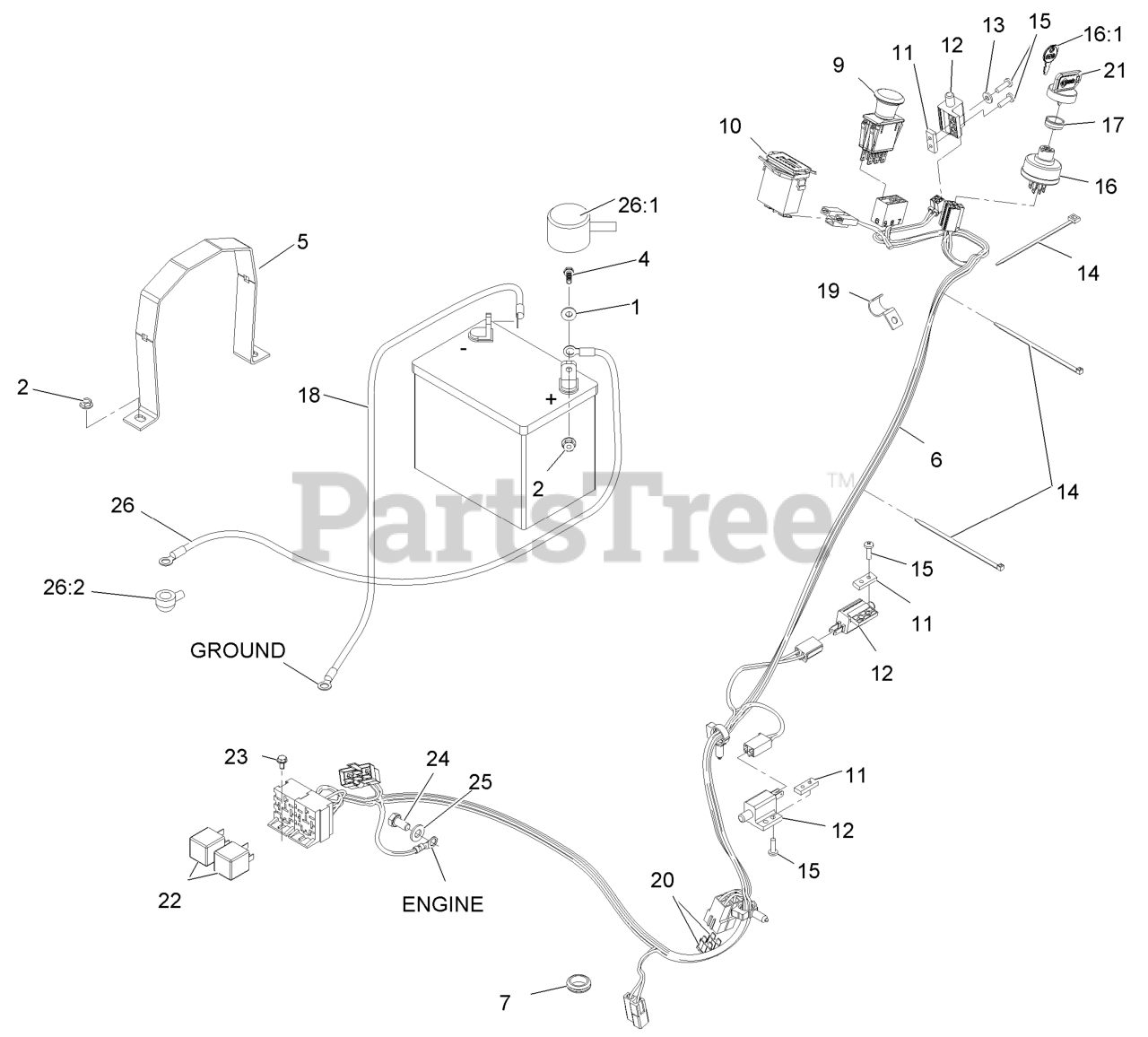

Electrical Assembly Parts Diagram

  • Title
1

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

2

$0.99

$

In Stock, Qty 6

0

4

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-603814-03

STRAP,BATTERY HOLDDOWN

$80.99

$

Usually ships in 3-6 days

0

6

Exmark 116-2561

116-8374
(Superseded to 116-8374)

$231.99

$

Usually ships in 3-6 days

0

7

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

10

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

11

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

12

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

13

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

15

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

16:1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

17

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

18

Exmark 1-543767

WIRE-GROUND

$21.99

$

In Stock, only 2 left!

0

19

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

21

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

22

$23.99

$

In Stock, Qty 6

0

23

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

25

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

26

Exmark 109-7630

POSITIVE BATTERY CABLE AS

$43.99

$

In Stock, only 2 left!

0

26:1

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

26:2

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!
