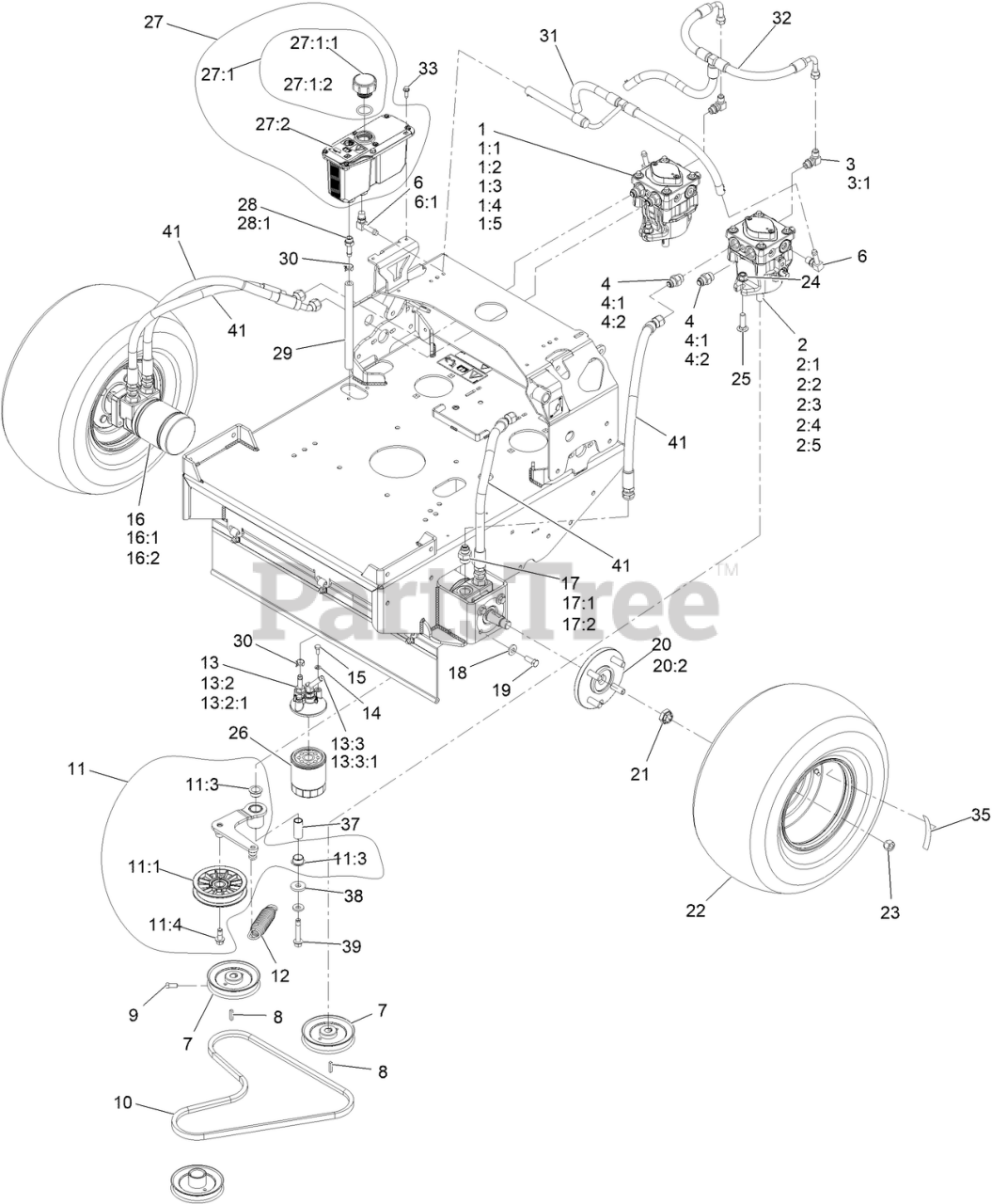

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 413950474 & Above) (Rev A) (2023) Hydraulic Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-2495

PUMP-HYD PE RH TTH

$1317.99

$

Usually ships in 3-6 days

0

1:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

1:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

1:3

Exmark 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

1:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

1:5

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2494

PUMP-HYD PE LH TTH

$1317.99

$

Usually ships in 3-6 days

0

2:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

2:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

2:3

Exmark 103-2666

CYLINDER BLOCK KIT

$494.99

$

Usually ships in 3-6 days

0

2:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

2:5

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

3

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

3:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

4

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

4:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

4:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

6:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

7

Exmark 1-413010

SHEAVE ASM

$50.99

$

In Stock, only 2 left!

0

8

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

9

Exmark 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

10

Exmark 103-4761

BELT
(Superseded to 103-4761-SL)

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 126-2531

ASM, PUMP IDLER

$161.99

$

In Stock, only 1 left!

0

11:1

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, only 1 left!

0

11:3

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

11:4

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 11

0

12

Exmark 116-6316

SPRING-EXTENSION

$23.99

$

In Stock, Qty 20+

0

13

Exmark 126-0621

ASM, FILTER HEAD

$71.99

$

In Stock, only 2 left!

0

13:2

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

13:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

13:3

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

13:3:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

15

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

16:1

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

16:2

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

17

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 2 left!

0

17:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

17:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

18

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Exmark 112-9049

WHEEL HUB ASM

$188.99

$

Usually ships in 3-6 days

0

20:2

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

21

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

22

Exmark 103-1715

ASM, DRIVE TIRE

$372.99

$

Usually ships in 3-6 days

0

23

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

24

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

25

Exmark 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

26

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$47.99

$

In Stock, Qty 16

0

27

Exmark 126-1248

USE 116-2066
(Superseded to 116-2066)

Note: Use Exmark Premium Hydro Oil P/N 109-9828 (32oz)

$191.99

$

Usually ships in 3-6 days

0

27:1

RESERVOIR-HYD

Note: Not serviced separately

$

$

Not available

27:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, Qty 20+

0

27:1:2

Exmark 142-2792

O-RING

$1.49

$

In Stock, Qty 9

0

27:2

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

28

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

29

Exmark 103-2959

HOSE-CHARGE

$8.49

$

Usually ships in 3-6 days

0

30

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

31

Exmark 126-2550

HOSE, CASE

$106.99

$

Usually ships in 3-6 days

0

32

Exmark 126-2555

HOSE, CHARGE

$85.99

$

Usually ships in 3-6 days

0

33

Exmark 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

35

Exmark 126-2056

DECAL-TORQUE WHEEL LUG-HU

$10.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2954

PIVOT, IDLER

$6.99

$

In Stock, only 2 left!

0

38

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

39

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 2 left!

0

41

Exmark 116-8646

HOSE,HYDRAULIC W/COVER

$94.99

$

In Stock, only 1 left!
