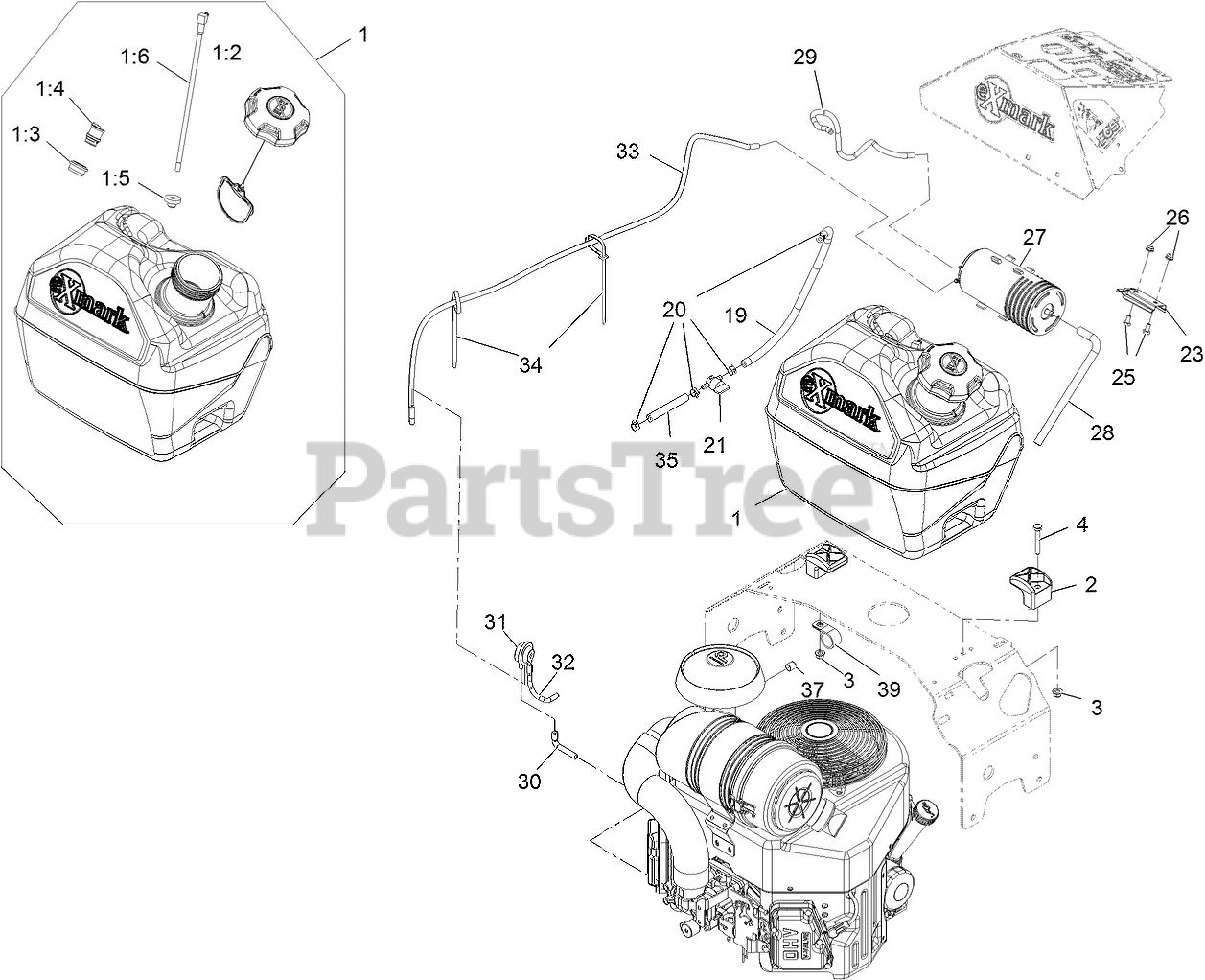

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 406294345 - 408644345) (Rev B) (2020) Fuel Tank Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki

Fuel Tank Assembly Parts Diagram

  • Title
1

Exmark 135-2855

ASM, FUEL TANK 5 GAL
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

1:6

Exmark 109-9364

116-2459
(Superseded to 116-2459)

$41.99

$

In Stock, only 2 left!

0

2

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

19

Exmark 114-4428

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

23

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

26

$1.49

$

In Stock, Qty 20+

0

27

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

28

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

29

Exmark 116-4801

HOSE-EMISSIONS

$8.49

$

Usually ships in 3-6 days

0

30

Exmark 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

32

Exmark 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

33

Exmark 116-3116

HOSE-VENT, FORMED

$15.99

$

Usually ships in 3-6 days

0

34

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

35

Exmark 105-8342

HOSE-FUEL

$6.49

$

In Stock, only 4 left!

0

37

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0
