Exmark TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019) Handle Assembly Parts Lookup with Diagrams

1

Exmark 126-2642-03

WELD, HANDLE

$422.99

$

Usually ships in 3-6 days

2

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

3

Exmark 126-3541

ASM, CONSOLE W/ DECALS

$129.99

$

Usually ships in 3-6 days

3:2

Exmark 135-2863

DECAL-CONSOLE

$35.99

$

Usually ships in 3-6 days

3:3

Exmark 103-2242

DECAL,LH ECS INSTRUCTION

$8.99

$

In Stock, Qty 7

3:4

Exmark 103-2243

DECAL,RH ECS INSTRUCTION

$8.99

$

In Stock, Qty 7

3:5

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 10

4

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

5

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

6

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

6:1

Exmark 116-4082

WLD,RH DRIVE LEVER

$51.99

$

Usually ships in 3-6 days

6:2

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

In Stock, only 2 left!

7

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

8

Exmark 126-2921

LATCH, ECS

$11.99

$

In Stock, Qty 5

9

Exmark 103-1371

ASM,LATCH RH THUMB

$28.99

$

In Stock, Qty 5

10

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

10:1

Exmark 116-4081

WLD,LH DRIVE LEVER

$51.99

$

In Stock, only 1 left!

10:2

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

In Stock, only 2 left!

11

Exmark 103-1372

ASM,LATCH LH THUMB

$28.99

$

In Stock, only 1 left!

12

Exmark 126-2931

SCREW-SHOULDER

$2.99

$

In Stock, Qty 11

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 20+

15

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$33.99

$

In Stock, only 1 left!

15:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 5

16

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$33.99

$

In Stock, Qty 19

16:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 5

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

18

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

19

Exmark 126-0148

LEVER, SHIFT W/GRIP

$51.99

$

Usually ships in 3-6 days

19:2

Exmark 103-5994

GRIP-HANDLE, STEERING

$13.99

$

In Stock, only 3 left!

20

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

21

Exmark 322-11

SCREW-HH

(Superseded to 120-9738) 

$1.49

$

In Stock, Qty 20+

22

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

24

Exmark 109-3958

CONTROL-THROTTLE

$41.99

$

In Stock, only 2 left!

25

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

26

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

27

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

28

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

29

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

30

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

31

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

32

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

33

Exmark 1-413225

ROD,SPEED CONTROL

$15.99

$

In Stock, Qty 5

34

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

35

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

36

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

37

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

38

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

40

Exmark 126-2107

CABLE, CHOKE

$44.99

$

In Stock, only 3 left!

41

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$6.49

$

In Stock, only 3 left!

42

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

43

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

44

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

45

Exmark 103-1148

LINK,DRIVE (PLTD)

$18.99

$

In Stock, only 3 left!

46

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

47

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

48

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

49

Exmark 116-3414

DRIVE LINK ASM

$33.99

$

Usually ships in 3-6 days

50

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

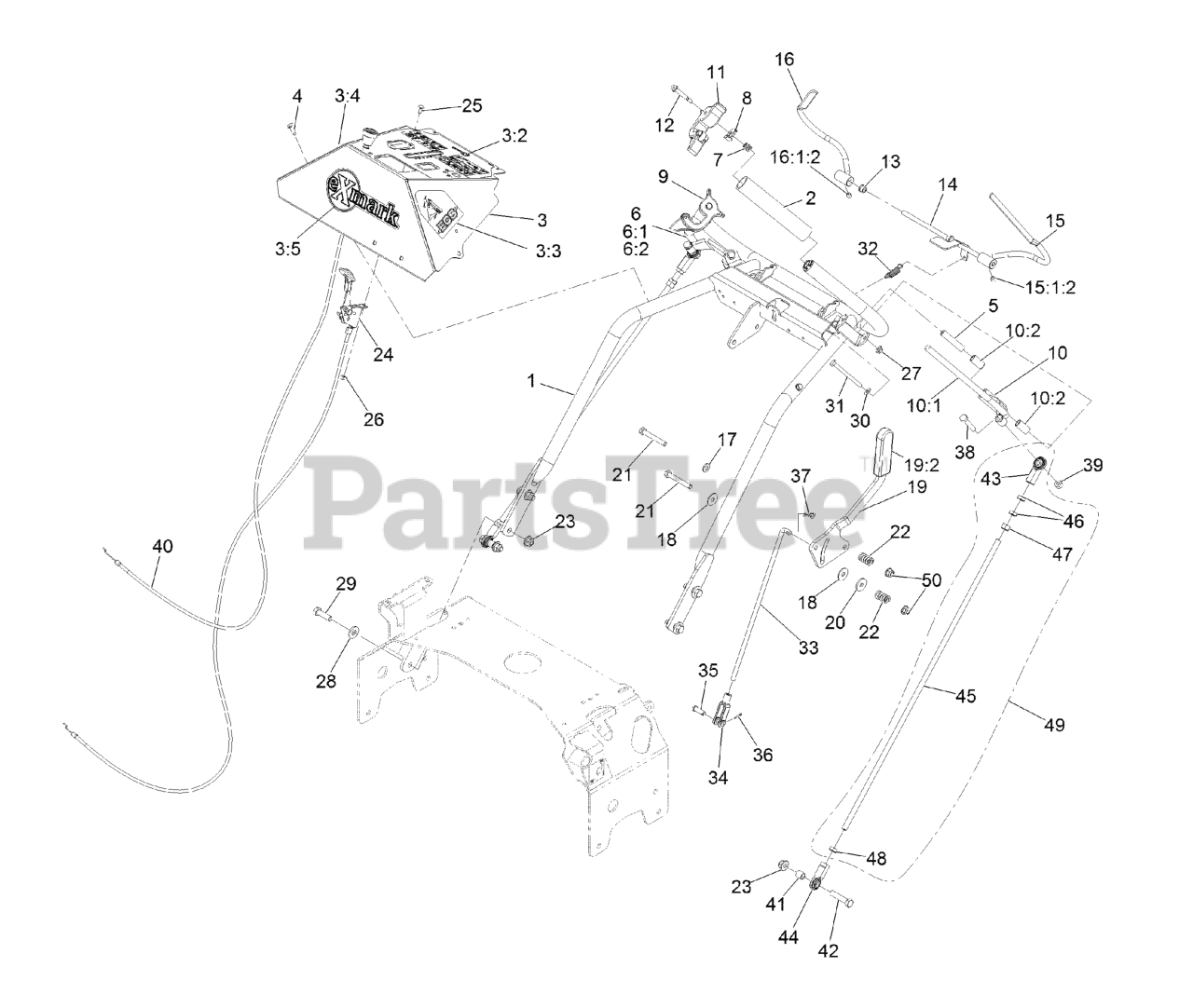

TTX691CKA60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019) Handle Assembly Parts Diagram

Handle Assembly Parts Diagram
