TTX680PKCE524 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 314000000 - 314999999) (2014) LPG Fuel Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

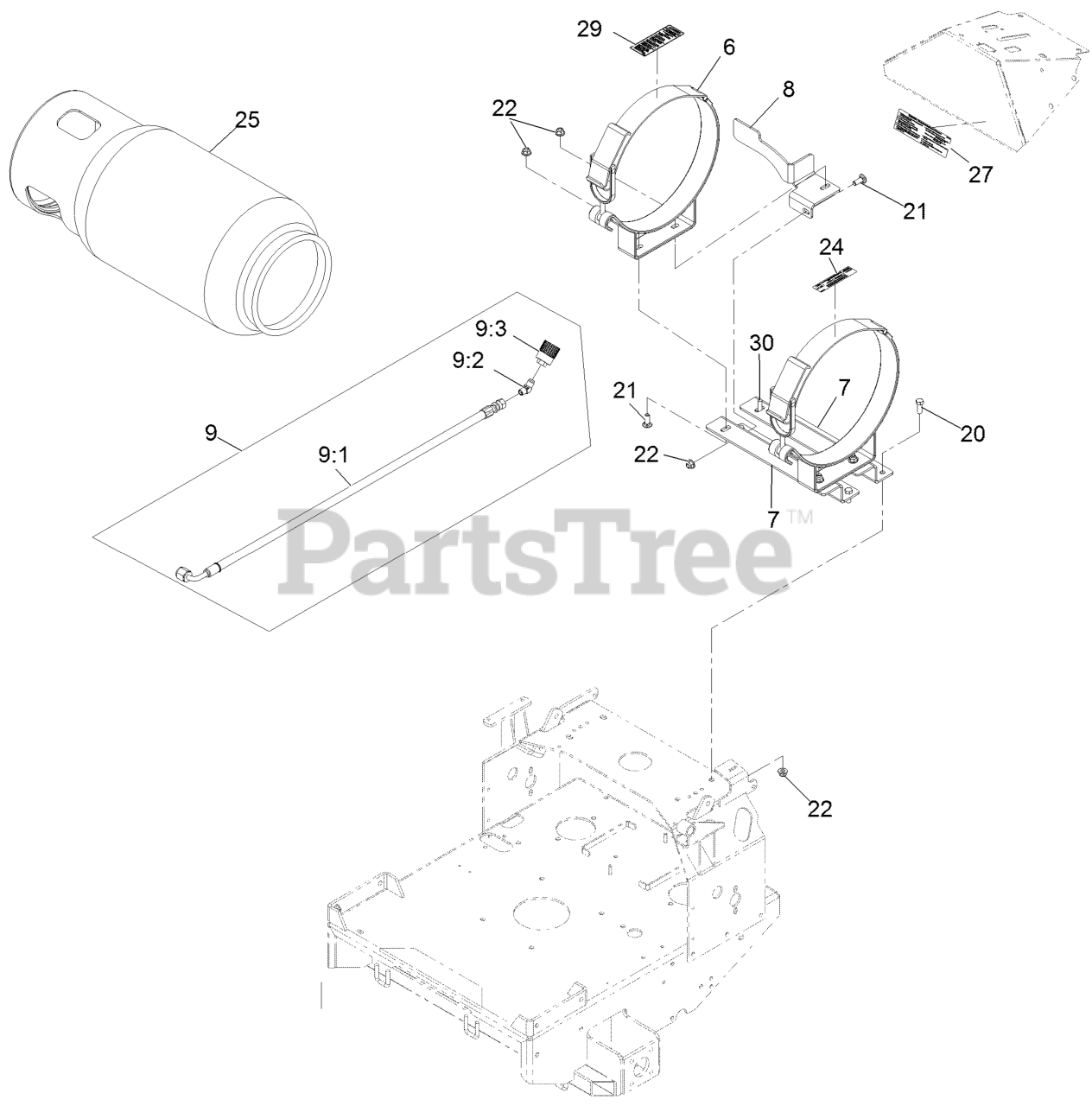

LPG Fuel Assembly Parts Diagram

  • Title

6

Exmark 116-1074

BRACKETS, LPG TANK - HORI

$

$

Not available

7

Exmark 116-1088-03

RISER, LPG TANK

$

$

Not available

8

Exmark 116-1089-03

BRACKET, LPG TANK INDEX

$

$

Not available

9

Asm, Lpg Fuel Hose

Note: Not serviced separately

$

$

Not available

9:1

Exmark 116-9312

LPG FUEL HOSE ASM

$169.99

$

Usually ships in 3-6 days

0

9:2

Exmark 116-1055

ELBOW-45 DEG

$27.99

$

Usually ships in 3-6 days

0

9:3

Exmark 116-1073

CONNECTOR-LPG TANK, LH TH

$161.99

$

Usually ships in 3-6 days

0

20

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 109-9849

DECAL,LPG TANK SPEC HORIZ

$

$

Not available

25

Exmark 109-9674

TANK,LPG 33LB

$537.99

$

Usually ships in 3-6 days

0

27

Exmark 109-9906

DECAL-TANK REPLACEMENT

$18.99

$

In Stock, only 2 left!

0

29

Exmark 109-9875

DECAL-LPG WARNING

$12.99

$

Usually ships in 3-6 days

0

30

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

99

Exmark 116-1456

O-RING, LPG CONNECTOR (SV

Note: Not illustrated

$

$

Not available

99

Exmark 116-1457

WASHER,RUBBER LPG CONNECT

Note: Not illustrated

$

$

Not available
