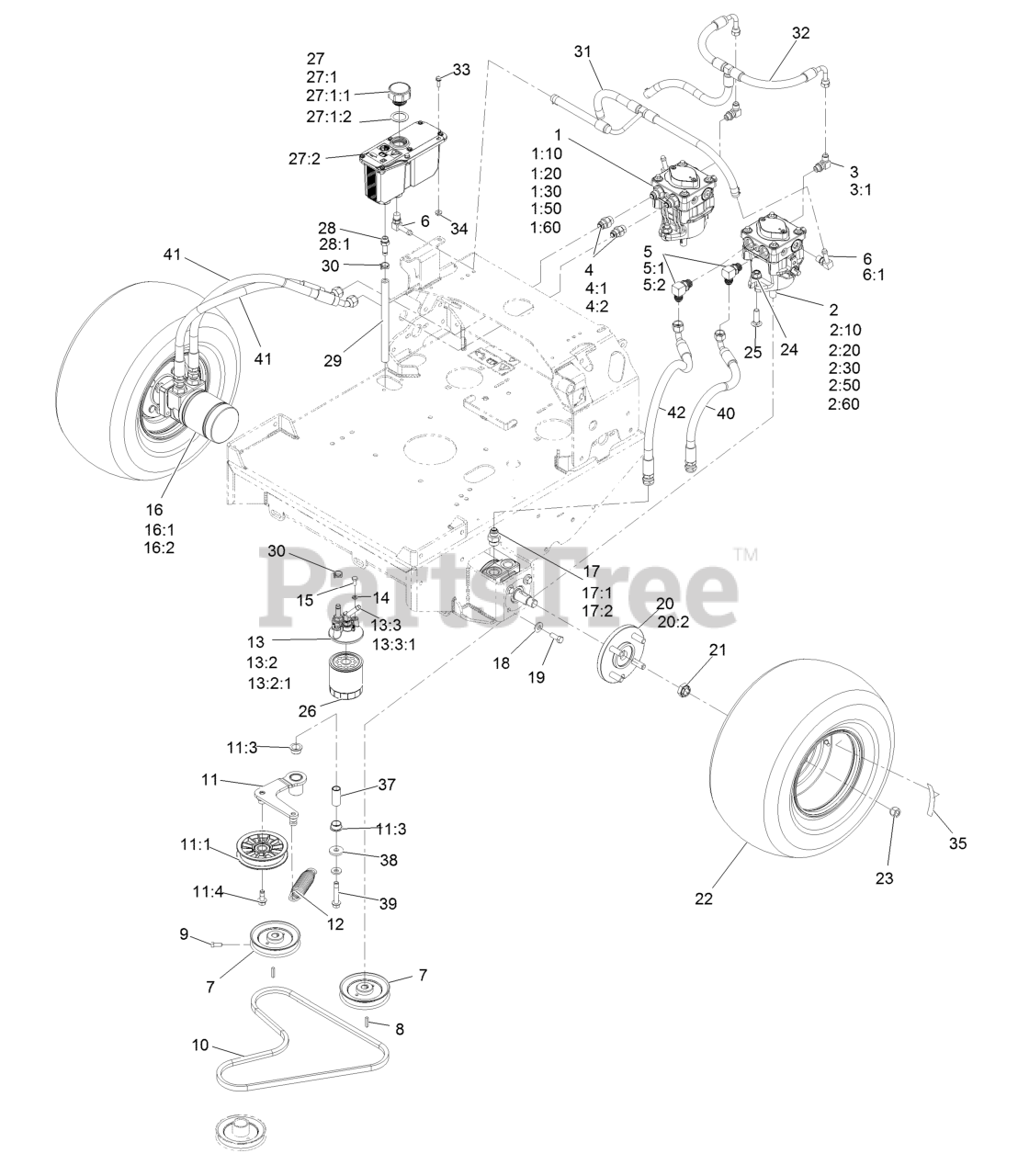

TTX680PKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Hydro Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

Hydro Assembly Parts Diagram

  • Title

1

Exmark 116-2495

Pump-HYD Pe RH TTH

$1357.99

$

Usually ships in 3-6 days

0

1:10

Exmark 103-2664

Input Shaft Kit

$779.99

$

Usually ships in 3-6 days

0

1:20

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

1:30

Exmark 103-2666

Cylinder Block Kit

$546.99

$

Usually ships in 3-6 days

0

1:50

Exmark 105-6184

Seal Overhaul Kit

$84.99

$

In Stock, Qty 12

0

1:60

Exmark 126-2479

Kit, 10Cc Pump Kit

$406.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2494

Pump-HYD Pe LH TTH

$1357.99

$

Usually ships in 3-6 days

0

2:10

Exmark 103-2664

Input Shaft Kit

$779.99

$

Usually ships in 3-6 days

0

2:20

Exmark 94-6922

Bearing-Thrust

$62.99

$

In Stock, only 3 left!

0

2:30

Exmark 103-2666

Cylinder Block Kit

$546.99

$

Usually ships in 3-6 days

0

2:50

Exmark 105-6184

Seal Overhaul Kit

$84.99

$

In Stock, Qty 12

0

2:60

Exmark 126-2479

Kit, 10Cc Pump Kit

$406.99

$

Usually ships in 3-6 days

0

3

Exmark 103-1802

Fitting-Elbow, 90 DEG

$23.99

$

In Stock, only 2 left!

0

3:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-603990

Adapter-Straight

$18.99

$

In Stock, Qty 12

0

4:1

Exmark 1-603920

O-Ring-SAE #8

$3.99

$

In Stock, Qty 20+

0

4:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

5

Exmark 103-2153

Elbow-90deg

$49.99

$

Usually ships in 3-6 days

0

5:1

Exmark 1-603920

O-Ring-SAE #8

$3.99

$

In Stock, Qty 20+

0

5:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

6

Exmark 100-4887

Fitting-Elbow, 90

$29.99

$

In Stock, only 1 left!

0

6:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

7

Exmark 1-413010

Sheave ASM

$50.99

$

In Stock, only 2 left!

0

8

Exmark 1-807272

Key-5Mm X 5Mm X 25Mm

$5.99

$

In Stock, Qty 9

0

9

Exmark 120-6474

Screw-Set, SQH 5/16-18 X 3/4

$2.99

$

In Stock, Qty 11

0

10

Exmark 103-4761

Belt
(Superseded to 103-4761-SL)

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 126-2531

ASM, Pump Idler

$165.99

$

In Stock, only 1 left!

0

11:1

Exmark 109-4077

Pulley-Idler, Flat

$21.99

$

In Stock, Qty 14

0

11:3

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

11:4

Exmark 126-1680

Screw-Hfh

$1.99

$

In Stock, Qty 11

0

12

Exmark 116-6316

Spring-Extension

$23.99

$

In Stock, Qty 20+

0

13

Exmark 126-0621

ASM, Filter Head

$79.99

$

In Stock, only 2 left!

0

13:2

Exmark 103-1912

Adapter-Straight

$22.99

$

Usually ships in 3-6 days

0

13:2:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

13:3

Exmark 103-1807

Fitting-Barbed, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

13:3:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

14

Exmark 1-805004

Washer-Lock 1/4 Heavy

$1.49

$

In Stock, Qty 14

0

15

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-603718

HYD Motor ASM

$1206.99

$

In Stock, only 2 left!

0

16:1

Exmark 1-000119

Seal Kit

$201.99

$

In Stock, only 2 left!

0

16:2

Exmark 1-000138

Bearing And Seal Kit

$310.99

$

Usually ships in 3-6 days

0

17

Exmark 1-603991

Adapter-Straight

$21.99

$

In Stock, only 4 left!

0

17:1

Exmark 237-80

O-Ring

$6.99

$

In Stock, Qty 19

0

17:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

18

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

19

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

20

Exmark 112-9049

Wheel Hub ASM

$188.99

$

In Stock, only 2 left!

0

20:2

Exmark 1-633926

Stud-Wheel

$4.99

$

In Stock, Qty 20+

0

21

Exmark 116-2839

Nut-Lock

$11.99

$

In Stock, only 3 left!

0

22

Exmark 103-1715

Tire And Wheel Assy

$383.99

$

Usually ships in 3-6 days

0

23

Exmark 242-50

Nut-Lug 1/2-20
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

24

Exmark 114-8417

Nut-HF, NI

$2.49

$

In Stock, Qty 18

0

25

Exmark 3232-3

Bolt-Carriage 7/16-14 X 1 1/2

$3.49

$

In Stock, Qty 5

0

26

Exmark 109-4180

Element, Oil Filter

$49.99

$

In Stock, Qty 13

0

27

Exmark 126-1248

ASM, HYD Reservoir
(Superseded to 116-2066)

$191.99

$

Usually ships in 3-6 days

0

27:1

Reservoir-HYD

$

$

Not available

27:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

27:1:2

Exmark 103-1949

Gasket-Cap
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

27:2

Exmark 115-4212

Decal-Warning

$12.99

$

Usually ships in 3-6 days

0

28

Exmark 103-1912

Adapter-Straight

$22.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

29

Exmark 103-2959

Hose-Charge

$8.49

$

Usually ships in 3-6 days

0

30

Exmark 103-1988

Clamp-Hose 11/16

$1.49

$

In Stock, Qty 20+

0

31

Exmark 126-2550

Hose, Case

$111.99

$

Usually ships in 3-6 days

0

32

Exmark 126-2555

Hose, Charge

$90.99

$

Usually ships in 3-6 days

0

33

Exmark 32105-15

Screw-Machine 1/4-20 X 3/4

$2.99

$

In Stock, Qty 20+

0

34

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

35

Exmark 126-2056

Decal-Torque Wheel Lug-Hub

$10.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2954

Pivot, Idler

$7.49

$

In Stock, only 2 left!

0

38

Exmark 1-373034

Washer

$3.49

$

In Stock, Qty 20+

0

39

Exmark 126-2956

Screw-HHF W/ Patch

$6.49

$

In Stock, only 2 left!

0

40

Exmark 126-3311

ASM, HP Hose

$90.99

$

Usually ships in 3-6 days

0

41

Exmark 116-8646

Hose,Hydraulic W/Cover

$98.99

$

In Stock, only 1 left!

0

42

Exmark 119-7827

HYD Hose ASM

$78.99

$

In Stock, only 2 left!

0
