TTX680PKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Frame Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

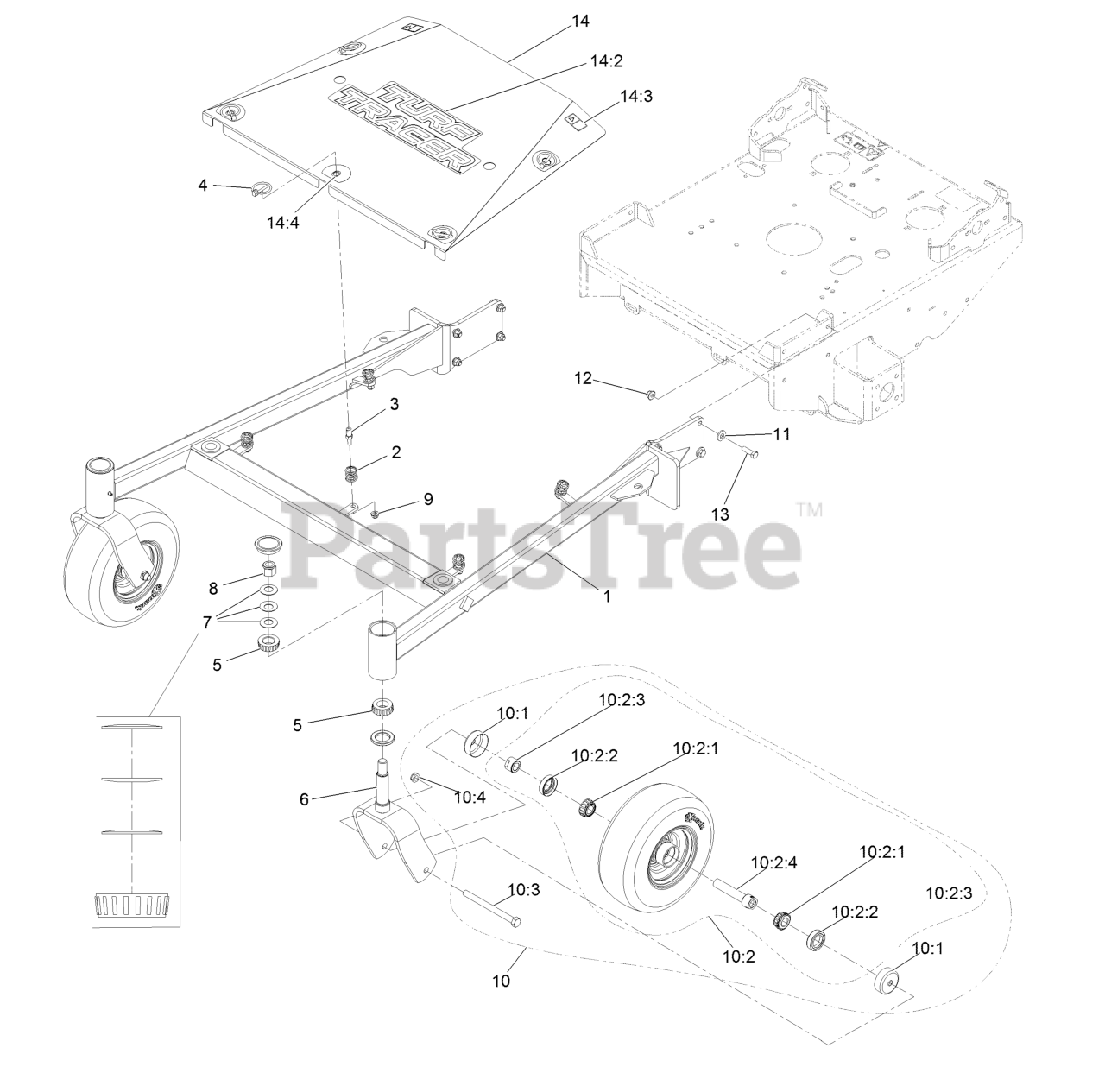

Frame Assembly Parts Diagram

  • Title
1

Exmark 126-2541

ASM, Front Frame W/Bearings, 60

$990.99

$

Usually ships in 3-6 days

0

2

$2.99

$

In Stock, only 1 left!

0

3

Exmark 126-1504

Pin-Spring
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 92-1298

Pin-Lynch

$3.99

$

In Stock, Qty 20+

0

5

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

6

Exmark 103-1891-01

Wld, Caster Fork

$117.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 10

0

9

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

10

Exmark 109-3524

Asm, Wheel And Bearings

$246.99

$

In Stock, Qty 20+

0

10:1

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0

10:2

Wheel And Bearing ASM

$

$

Not available

10:2:1

Exmark 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 20+

0

10:2:2

Exmark 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 6

0

10:2:3

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 12

0

10:2:4

Exmark 126-5359

Caster Axle ASM

$18.99

$

In Stock, only 2 left!

0

10:3

Exmark 325-20

Screw-HH 1/2-13 X 6

$7.99

$

In Stock, Qty 20+

0

10:4

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

11

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

12

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

14

Exmark 126-2545

ASM, Center Shield W/Decals, 60

$144.99

$

Usually ships in 3-6 days

0

14:2

Exmark 126-6892

Decal-Turf Tracer

$15.99

$

In Stock, only 4 left!

0

14:3

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 3 left!

0

14:4

Exmark 126-1692

Decal-Scratch Cover

$16.99

$

Usually ships in 3-6 days

0
