TTX680PKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Engine Deck Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

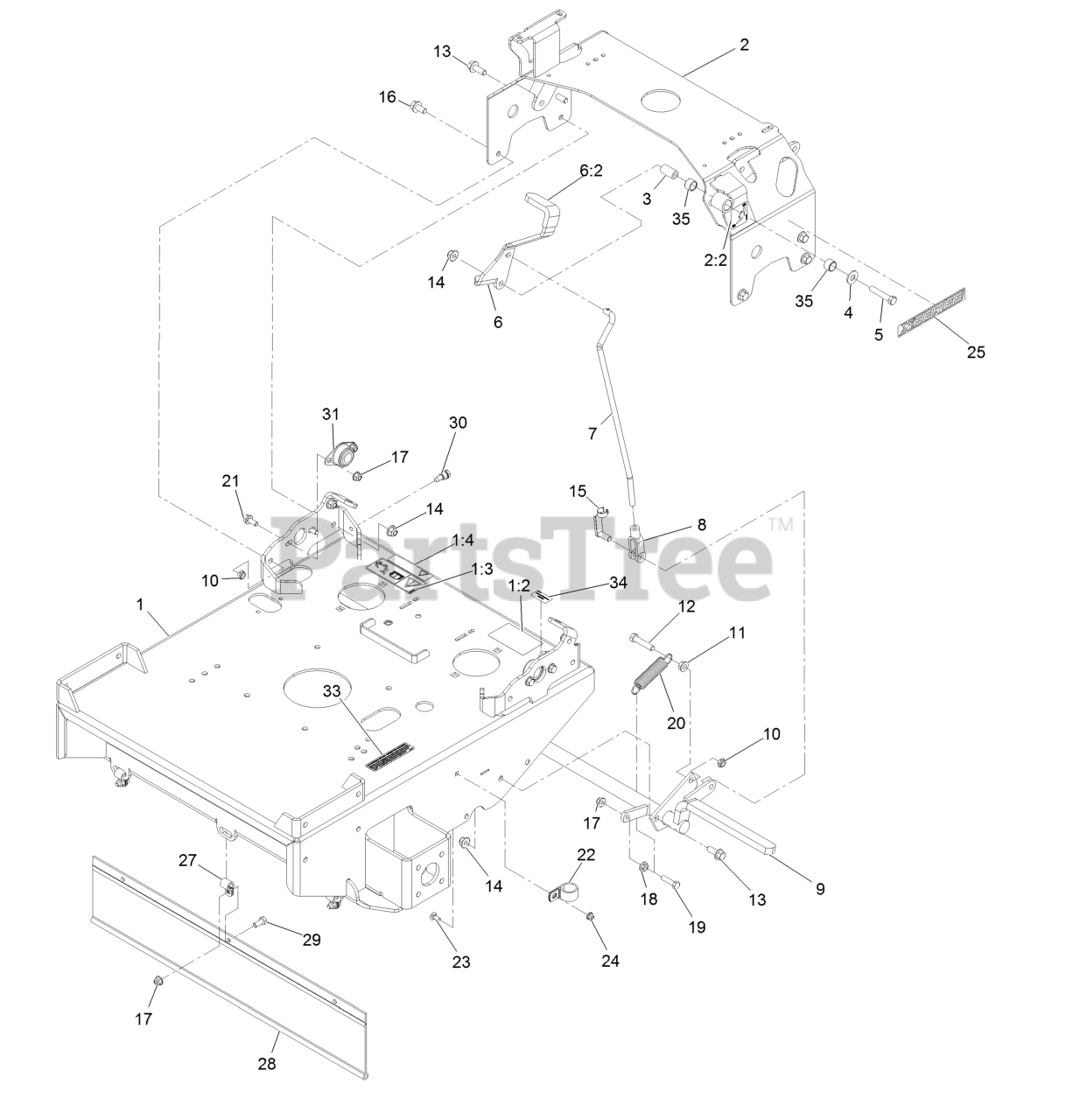

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 126-2521

ASM, Engine Deck W/Decals

$1465.99

$

Usually ships in 3-6 days

0

1:2

Exmark 98-1977

Decal-Warning

$11.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-1400

Decal-Warning, Sulky

$5.49

$

Usually ships in 3-6 days

0

1:4

Exmark 116-8253

Decal-Drive Release

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 126-2181

ASM, Tank Support W/Decal

$316.99

$

Usually ships in 3-6 days

0

2:2

Exmark 116-5988

Decal-Park Brake, CE

$14.99

$

In Stock, only 1 left!

0

3

Exmark 1-413344

Bushing-Pivot

$19.99

$

In Stock, only 2 left!

0

4

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

5

Exmark 323-10

Screw-HH 3/8-16 X 2

$0.99

$

In Stock, Qty 20+

0

6

Exmark 126-2180

ASM, Brake Lever W/ Grip

$37.99

$

In Stock, only 1 left!

0

6:2

Exmark 1-303020

Grip-Lever

$2.99

$

In Stock, Qty 6

0

7

Exmark 116-9960

Linkage-Brake

$31.99

$

In Stock, only 2 left!

0

8

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, Qty 5

0

9

Exmark 116-9159

Wld,Brake Ttx

$206.99

$

Usually ships in 3-6 days

0

10

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

11

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

14

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-2399

Pin-Clevis Spring 3/8

$6.49

$

In Stock, Qty 11

0

16

Exmark 3234-12

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

18

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

19

Exmark 322-6

Screw-HH 5/16-18 X 1 1/4

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-323161

Spring

$11.99

$

In Stock, only 3 left!

0

21

Exmark 3234-47

Screw-HH Flg 5/16-18 X 3/4

$2.99

$

In Stock, Qty 19

0

22

Exmark 1-643312

Clip-Loom

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

24

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

25

Exmark 126-6573

Decal-X-Series

$2.99

$

In Stock, Qty 7

0

27

Exmark 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 13

0

28

Exmark 103-2224

Shield, Drag

$61.99

$

In Stock, only 2 left!

0

29

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 13

0

30

Exmark 115-1958

Bolt-Shoulder

$8.49

$

In Stock, only 2 left!

0

31

Exmark 1-633102

Bearing-Flanged

$18.99

$

In Stock, only 2 left!

0

33

Exmark 117-2718

Decal-Arrester, Spark

$7.99

$

In Stock, only 1 left!

0

34

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

35

Exmark 1-413347

Sleeve-Bushing

$2.99

$

In Stock, Qty 20+

0
