TTX680PKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

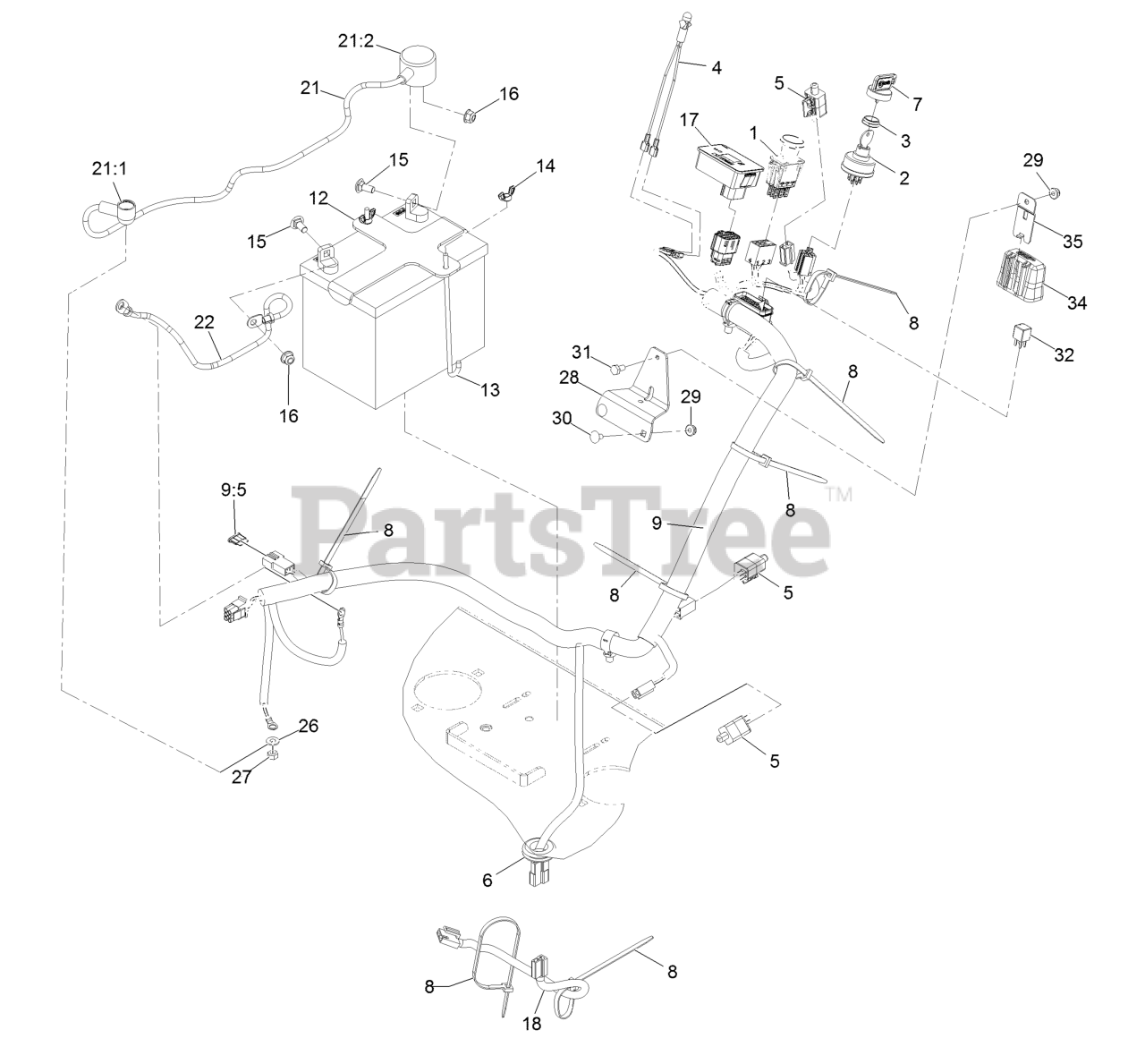

Electrical Assembly Parts Diagram

  • Title
1

Exmark 103-5221

Switch-PTO

$58.99

$

In Stock, Qty 20+

0

2

Exmark 135-2253

Switch, Key Start

$30.99

$

In Stock, only 2 left!

0

3

Exmark 103-0498

Nut-Ignition

$3.49

$

In Stock, Qty 6

0

4

Exmark 1-643267

Indicator-Red LED

$25.99

$

In Stock, only 1 left!

0

5

$13.99

$

In Stock, Qty 11

0

6

Exmark 1-543286

Grommet

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 7

0

8

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Exmark 126-6170

Harness-Wire

$231.99

$

Usually ships in 3-6 days

0

9:5

Exmark 1-816001

Fuse-Blade Type, 20 Amp

$6.49

$

In Stock, Qty 13

0

12

Exmark 135-2056

Bracket, Battery Hold Down

$27.99

$

In Stock, only 1 left!

0

13

Exmark 1-633651

Bolt-Holddown

$7.99

$

In Stock, Qty 9

0

14

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.49

$

In Stock, Qty 15

0

15

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

17

Exmark 135-1877

Module-Hour Meter
(Superseded to 142-2440)

$137.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0624

Harness-Clutch Pigtail

$13.99

$

Usually ships in 3-6 days

0

21

Exmark 109-7621

Positive Battery Cable ASM

$38.99

$

Usually ships in 3-6 days

0

21:1

Exmark 1-543393

Insulator-Solenoid

$5.49

$

In Stock, only 2 left!

0

21:2

Exmark 109-2407

Insulator-Battery

$5.49

$

In Stock, only 3 left!

0

22

Exmark 1-413540

Cable-Battery, Negative

$13.99

$

Usually ships in 3-6 days

0

26

Exmark 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3217-5

Nut-Hex

$0.99

$

In Stock, Qty 8

0

28

Exmark 126-6603-03

Bracket-Mounting,Fuseblock

$16.99

$

Usually ships in 3-6 days

0

29

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3229-10

Bolt-Carriage 1/4-20 X 1/2

$1.49

$

In Stock, only 4 left!

0

31

Exmark 321-2

Screw-HH 1/4-20 X 1/2

$3.49

$

In Stock, only 1 left!

0

32

Exmark 126-3991

Relay-Micro

$41.99

$

In Stock, only 1 left!

0

34

Exmark 32180-176

Cover-Block, Fuse

$7.49

$

Usually ships in 3-6 days

0

35

Exmark 32180-177

Clip-Mounting

$5.99

$

In Stock, only 1 left!

0
