TTX680PKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

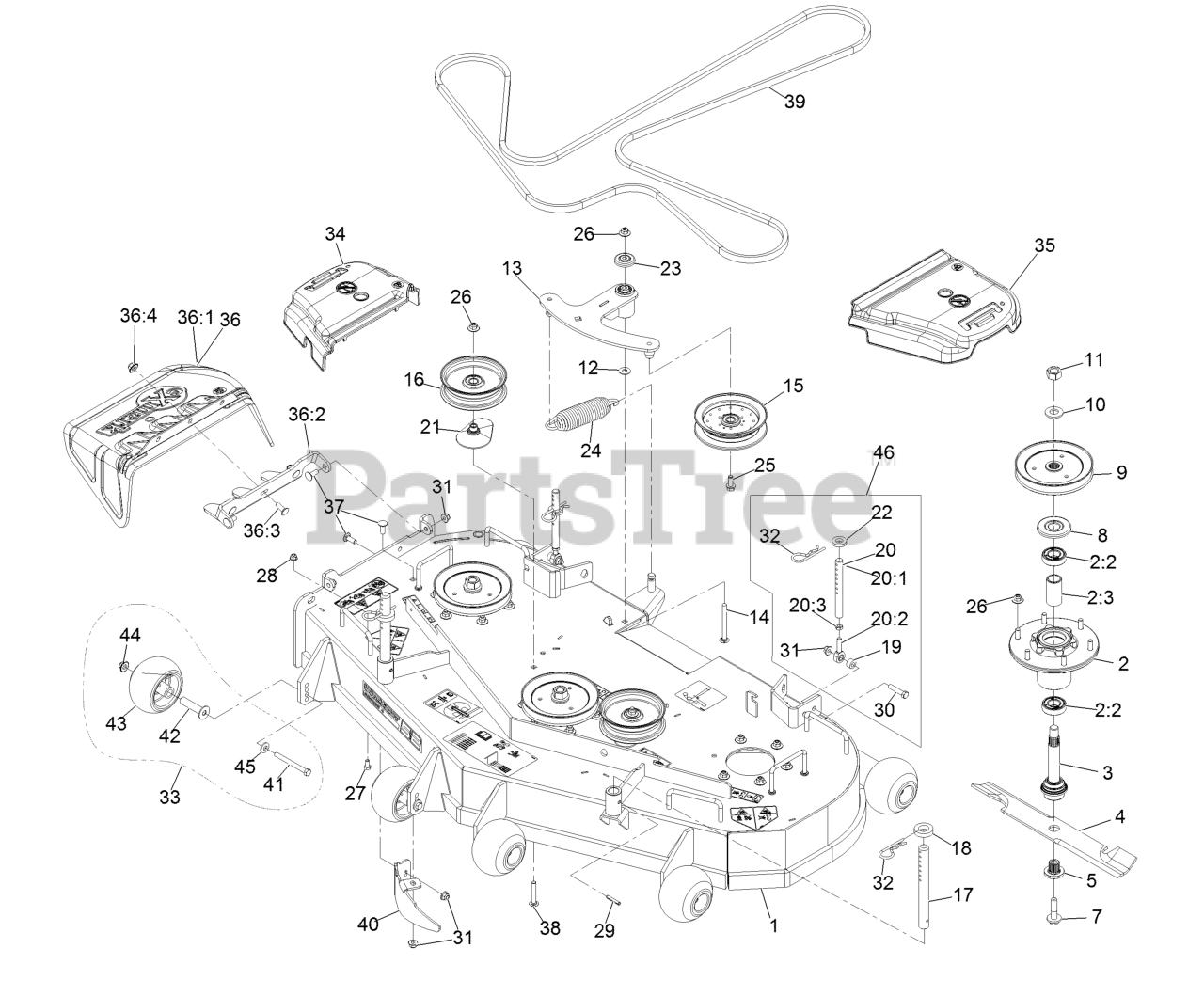

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-2472

ASM, Deck W/ Decals, 52"

$3078.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$167.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

Bearing-Ball

$22.99

$

Usually ships in 3-6 days

0

2:3

Exmark 116-3312

Spacer-Bearing

$9.99

$

In Stock, Qty 6

0

3

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 16

0

4

Exmark 103-6382

Blade, Solid
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

4

Exmark 103-6387

Blade, Low Lift
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

4

Exmark 103-6392

Blade, Mulching
(Superseded to 103-6392-S)

$30.99

$

In Stock, Qty 20+

0

4

Exmark 103-6402

Blade-Notched
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

4

Exmark 116-5175

Blade-Extreme 2, 18.00"
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 4 left!

0

5

Exmark 103-3037

Bushing, Splined

$23.99

$

In Stock, Qty 20+

0

7

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

8

Exmark 116-1286

Guard,Bearing Top .989

$5.99

$

In Stock, Qty 10

0

9

Exmark 116-0675

Sheave,Blade Drive 6.50

$92.99

$

In Stock, Qty 7

0

10

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 16

0

11

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 11

0

12

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

13

Exmark 126-2314

ASM, Deck Idler

$185.99

$

In Stock, only 1 left!

0

14

Exmark 3231-24

Bolt-Carriage 3/8-16 X 3 3/4

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 116-4668

Idler-Pulley, Flanged
(Superseded to 126-9196)

$63.99

$

In Stock, Qty 9

0

16

Exmark 116-4669

Idler-Pulley, Flat

$82.99

$

In Stock, only 3 left!

0

17

Exmark 1-603001

Rod, Deck Support

$45.99

$

In Stock, only 3 left!

0

18

Exmark 1-413425

Spacer-Deck Support

$6.49

$

In Stock, Qty 16

0

19

Exmark 1-603050

Spacer

$7.99

$

In Stock, only 3 left!

0

20

Exmark 1-414521

Link Assy
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

20:1

Exmark 1-413525

Link, Rear Deck Support

$44.99

$

In Stock, only 2 left!

0

20:2

Exmark 1-613204

Balljoint

$31.99

$

In Stock, only 2 left!

0

20:3

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

0

21

Exmark 109-2872

Spacer-Pulley

$22.99

$

Usually ships in 3-6 days

0

22

Exmark 1-323539

Spacer-Blade Drive

$2.49

$

In Stock, Qty 20+

0

23

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

24

Exmark 116-6317

Spring-Extension

$27.99

$

In Stock, Qty 11

0

25

Exmark 126-1680

Screw-Hfh

$1.99

$

In Stock, Qty 11

0

26

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

27

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.49

$

In Stock, Qty 13

0

28

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

29

Exmark 1-806332

Rollpin 1/4 X 1 1/2
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 8

0

30

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

31

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-806009

Hairpin-Cotter #206

$2.99

$

In Stock, Qty 20+

0

33

Exmark 116-9981

Kit, Anti-Scalp Roller

$53.99

$

In Stock, Qty 20+

0

34

Exmark 109-6935

Cover-Belt, RH

$37.99

$

In Stock, only 1 left!

0

35

Exmark 109-6936

Cover-Belt, LH

$37.99

$

In Stock, only 1 left!

0

36

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

36:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 7

0

36:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

36:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

36:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

37

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

38

Exmark 3231-40

Bolt-Carriage 3/8-16 X 2 1/4

$2.99

$

In Stock, only 3 left!

0

39

Exmark 126-2538

Belt, Deck Drive
(Superseded to 126-2538-SL)

$174.99

$

Usually ships in 3-6 days

0

40

Exmark 116-5814-01

Baffle-Dogleg, Lz-Vt52

$62.99

$

Usually ships in 3-6 days

0

41

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

42

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 5

0

43

Exmark 103-8415

Roller-Anti-Scalp

$26.99

$

In Stock, Qty 12

0

44

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

45

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

46

Exmark 1-411532

Kit, Support Link W/Pin

$147.99

$

In Stock, Qty 5
