TTX650EKCE604N - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 314000000 - 314999999) (2014) Fuel Tank Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

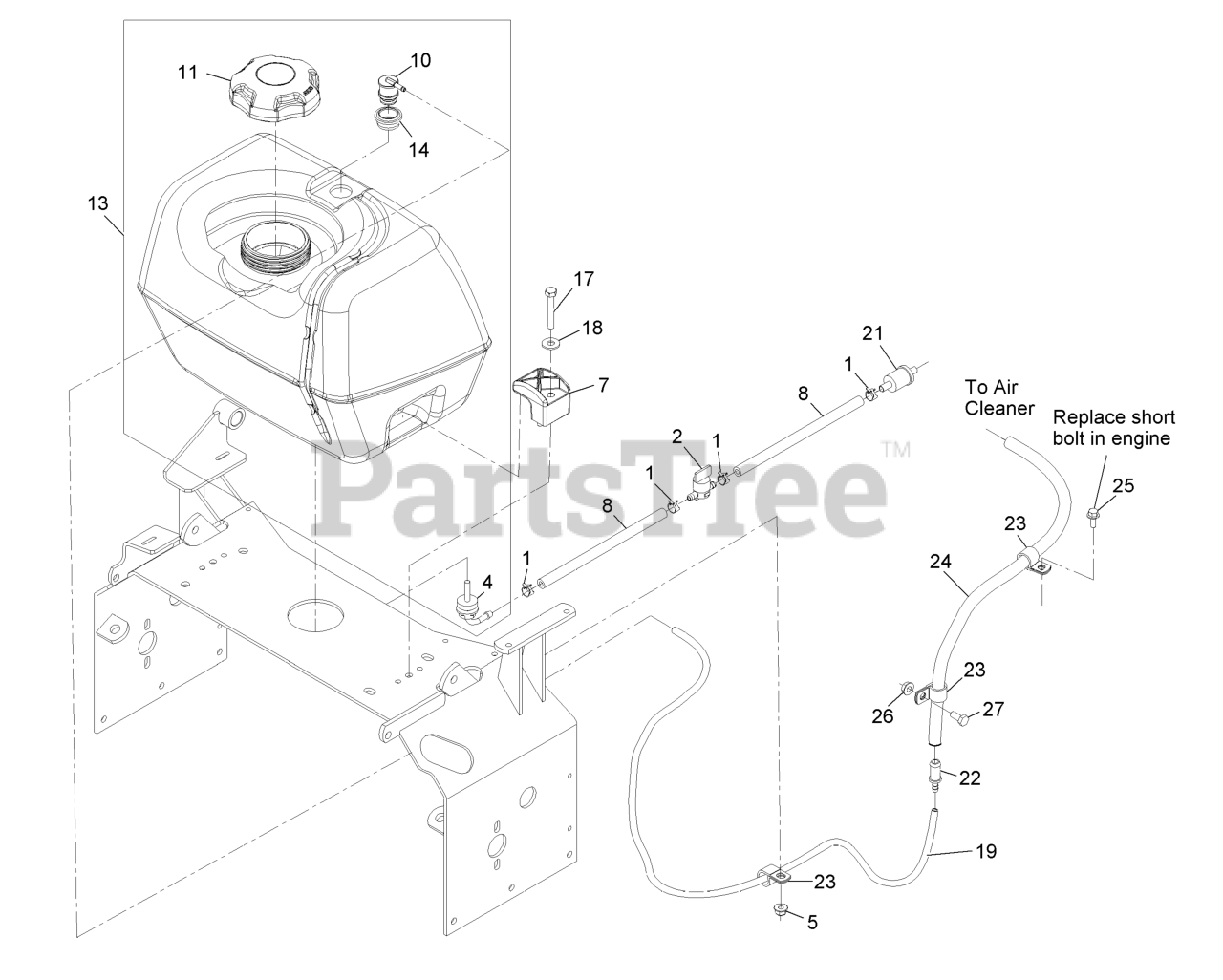

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

4

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$36.99

$

In Stock, only 2 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

10

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

11

Exmark 115-4465

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

13

Exmark 126-1525

ASM, FUEL TANK
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

14

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

17

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

18

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 126-1679

HOSE, EMISSIONS

$14.99

$

Usually ships in 3-6 days

0

21

Pn 24 050 13 Filter-Fuel

Note: Obtain parts from www.kohlerplus.com, Not serviced separately

$

$

Not available

22

Exmark 98-2952

FITTING-STRAIGHT

$9.99

$

In Stock, only 1 left!

0

23

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 119-8562

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

25

Exmark 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 13

0

26

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
