TTX650EKCE524 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 313000000 - 313999999) (2013) Deck Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

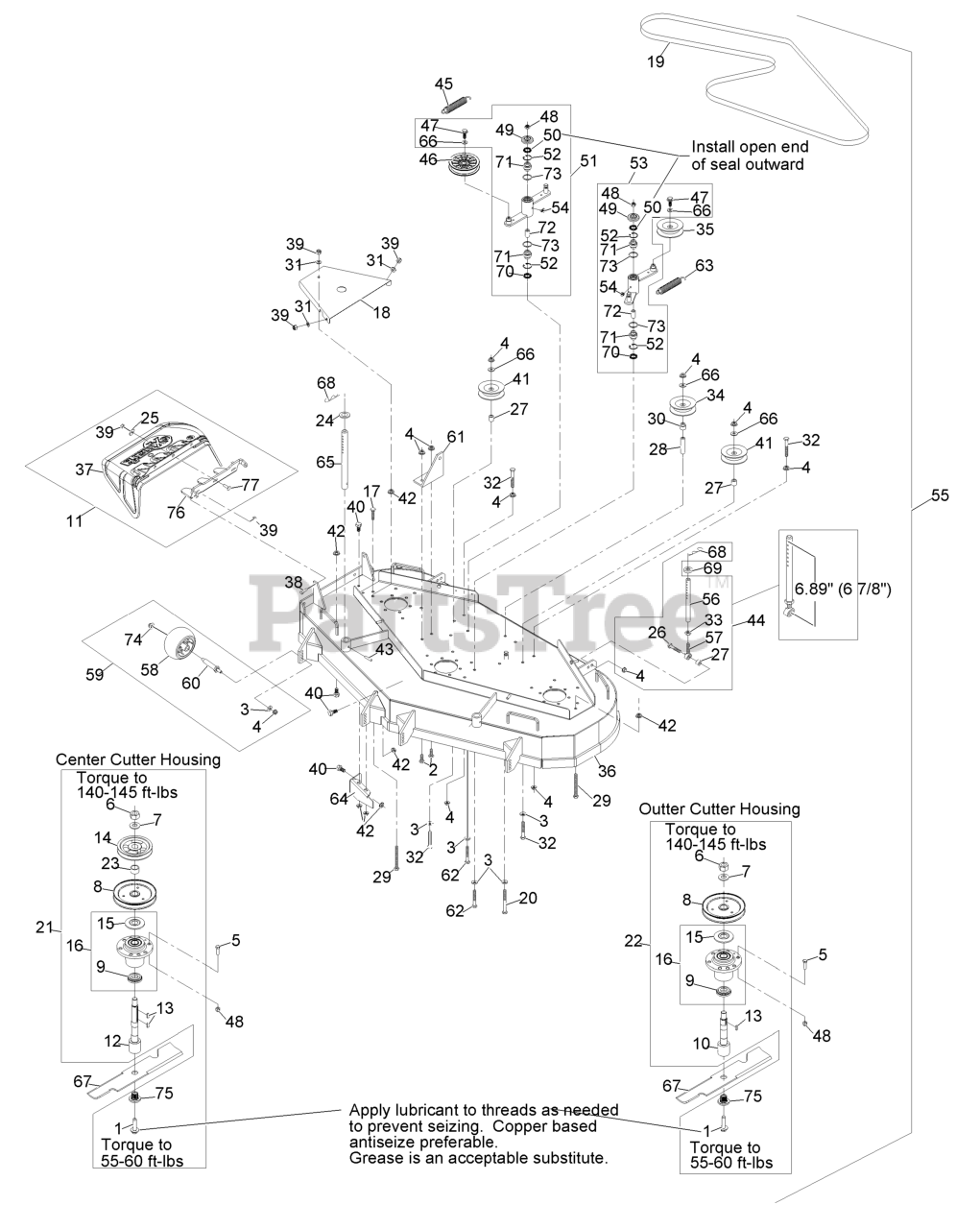

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

7

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

8

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$68.99

$

In Stock, only 2 left!

0

9

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

10

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$214.99

$

In Stock, only 4 left!

0

11

Exmark 109-4722

ASM,FMD DISCHARGE CHUTE

$159.99

$

Usually ships in 3-6 days

0

12

Exmark 103-9087

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$223.99

$

In Stock, only 2 left!

0

13

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

14

Exmark 103-2793

SHEAVE,MOWER DRIVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$160.99

$

Usually ships in 3-6 days

0

15

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$5.49

$

In Stock, only 2 left!

0

16

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$254.99

$

In Stock, only 4 left!

0

17

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 103-2969-01

SHIELD,BELT SIDE FMD524

$51.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2329

BELT,BLADE DRIVE FMD524
(Superseded to 103-2329-SL)

$84.99

$

Usually ships in 3-6 days

0

20

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 18

0

21

Exmark 103-9084

ASM,CUTTER HSG FMD524 CTR

$690.99

$

Usually ships in 3-6 days

0

22

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$470.99

$

In Stock, only 4 left!

0

23

Exmark 103-3209

SPACER,TUBE

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 16

0

25

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

26

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 4 left!

0

28

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

29

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

0

30

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

0

31

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

34

Exmark 1-603805

PULLEY-IDLER

$56.99

$

In Stock, Qty 14

0

35

Exmark 1-613098

PULLEY-IDLER

$49.99

$

In Stock, Qty 7

0

36

Exmark 116-5949

ASM, DECK W/ DECALS FMD52

$

$

Not available

37

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 8

0

44

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$147.99

$

In Stock, Qty 5

0

45

Exmark 1-603413

SPRING-EXTENSION

$22.99

$

In Stock, Qty 6

0

46

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, only 3 left!

0

47

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

49

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

50

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

51

Exmark 103-8072

KIT, IDLER ARM W/BEARINGS

Note: Assembly also includes Washer and Screw

$190.99

$

Usually ships in 3-6 days

0

52

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

53

Exmark 103-8071

KIT, IDLER ARM W/BEARINGS

Note: Assembly also includes Washer and Screw

$203.99

$

Usually ships in 3-6 days

0

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

55

Exmark 116-5947

Asm, Complete Deck

$

$

Currently unavailable

56

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

57

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

58

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

59

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$53.99

$

In Stock, Qty 20+

0

60

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 7

0

61

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

0

62

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

63

Exmark 1-603414

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

64

Exmark 116-2072-01

BAFFLE,DISCHARGE

$31.99

$

Usually ships in 3-6 days

0

65

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

66

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

67

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

67

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

67

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

67

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

67

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 4 left!

0

68

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

69

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

70

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

71

Exmark 103-3504

BEARING-SPHERICAL

$23.99

$

In Stock, Qty 20+

0

72

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

73

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

74

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

75

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

76

Exmark 109-4573-01

BRACKET, DISCHARGE CHUTE

$98.99

$

Usually ships in 3-6 days

0

77

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 6

0
