Exmark TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 411294212 - 413950473) (Rev A) (2022) Deck Assembly Parts Lookup with Diagrams

1

Exmark 126-2570

ASM, DECK W/ DECALS, 60

$3300.99

$

Usually ships in 3-6 days

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$89.99

$

In Stock, Qty 20+

4

Exmark 103-6383

USE 103-6383-S

(Superseded to 103-6383-S) 

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

4

Exmark 103-6388

USE 103-6388-S

(Superseded to 103-6388-S) 

Note: Optional Equipment

$37.99

$

In Stock, Qty 20+

4

Exmark 103-6393

USE 103-6393-S

(Superseded to 103-6393-S) 

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

4

Exmark 103-6403

USE 103-6403-S

(Superseded to 103-6403-S) 

$31.99

$

In Stock, Qty 20+

4

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

Currently unavailable 

5

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

6

Exmark 1-633957-01

XREF 1-633957-01 (EXMARK)

$100.99

$

In Stock, Qty 7

7

Exmark 1-632954-03

BAFFLE WLD RH MULCH

$242.99

$

Usually ships in 3-6 days

8

Exmark 1-632948-03

BAFFLE WLD LH MULCH

$103.99

$

In Stock, only 1 left!

9

Exmark 1-633956-03

XREF 1-633956-03 (EXMARK)

$49.99

$

Usually ships in 3-6 days

10

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

11

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 20+

12

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$68.99

$

In Stock, Qty 20+

13

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

14

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

15

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

17

Exmark 126-2314

ASM, DECK IDLER

$185.99

$

In Stock, only 1 left!

18

Exmark 3231-24

SCREW-CARR

$14.99

$

Usually ships in 3-6 days

19

Exmark 126-9196

IDLER-PULLEY, FLAT

$60.99

$

In Stock, Qty 20+

20

Exmark 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 20+

21

Exmark 126-9187

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 19

22

Exmark 135-4829

ROD, DECK SUPPORT

$28.99

$

Usually ships in 3-6 days

23

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

24

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

25

Exmark 1-414521

USE 1-411532

(Superseded to 1-411532) 

$147.99

$

In Stock, Qty 5

25:1

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

25:2

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

25:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

26

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

27

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

28

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

29

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

30

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

32

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

33

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

34

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

35

Exmark 1-806332

USE 32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 7

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

37

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

38

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

39

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

40

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

41

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

41:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 20+

41:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

41:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

41:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

42

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

43

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

44

Exmark 126-2539

USE 126-2539-SL

(Superseded to 126-2539-SL) 

$180.99

$

In Stock, Qty 8

45

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

46

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

47

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

48

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

49

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

50

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

51

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

52

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

53

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

54

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$147.99

$

In Stock, Qty 5

55

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 2 left!

56

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

57

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

58

Exmark 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

59

Exmark 135-4828

COLLAR, DECK HEIGHT PIN

$17.99

$

In Stock, only 1 left!

60

Exmark 32121-32

PIN-ROLL

$1.49

$

In Stock, Qty 16

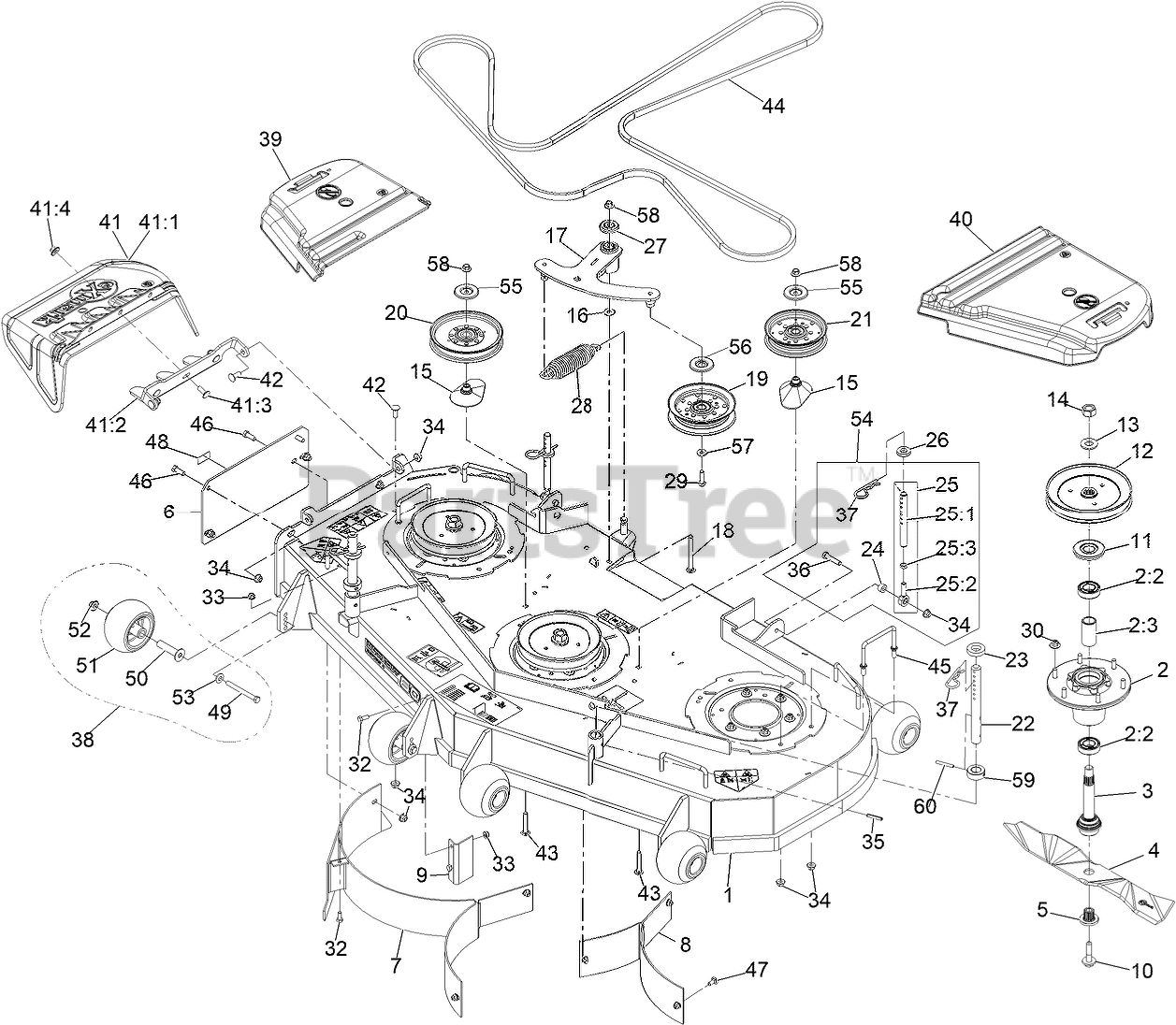

TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 411294212 - 413950473) (Rev A) (2022) Deck Assembly Parts Diagram

Deck Assembly Parts Diagram
