TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 408644346 - 411294211) (Rev A) (2021) Engine Deck Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

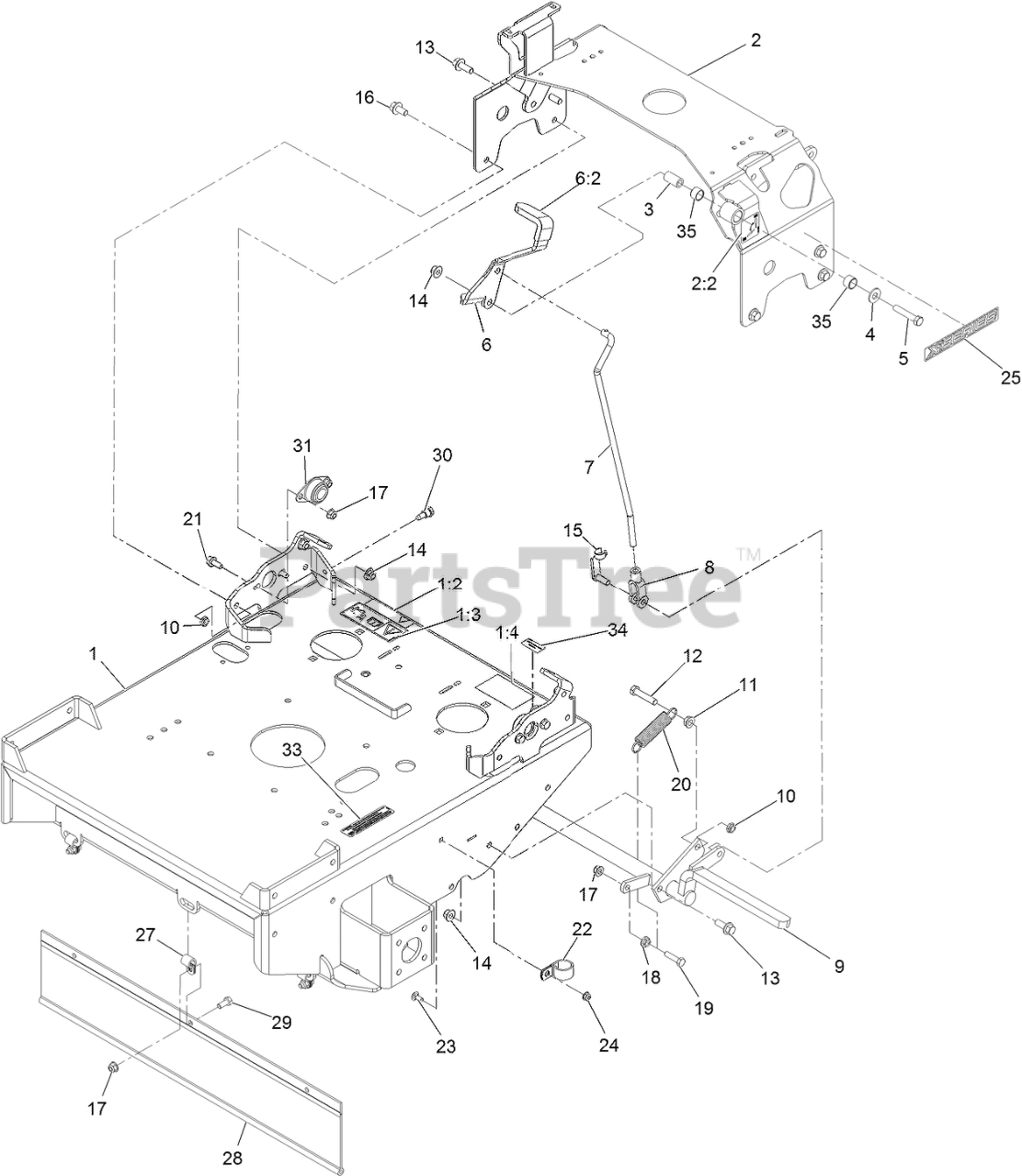

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 126-2521

ASM, ENGINE DECK W/ DECALS

$1465.99

$

Usually ships in 3-6 days

0

1:2

Exmark 98-1977

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-1400

DECAL-WARNING, SULKY

$5.49

$

Usually ships in 3-6 days

0

1:4

Exmark 116-8253

DECAL-DRIVE RELEASE

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 126-2181

ASM, TANK SUPPORT W/ DECAL

$316.99

$

Usually ships in 3-6 days

0

2:2

Exmark 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

In Stock, only 1 left!

0

3

Exmark 1-413344

BUSHING-PIVOT

$19.99

$

In Stock, only 2 left!

0

4

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 126-2180

ASM, BRAKE LEVER W/ GRIP

$37.99

$

In Stock, only 1 left!

0

6:2

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

7

Exmark 116-9960

LINKAGE-BRAKE

$31.99

$

In Stock, only 2 left!

0

8

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

9

Exmark 116-9159

WLD,BRAKE TTX

$206.99

$

Usually ships in 3-6 days

0

10

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 14

0

16

Exmark 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

21

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 16

0

22

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 126-6573

DECAL-X-SERIES

$2.99

$

In Stock, Qty 7

0

27

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

0

28

Exmark 103-2224

SHIELD,DRAG

$61.99

$

In Stock, only 2 left!

0

29

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 115-1958

BOLT-SHOULDER

$5.49

$

In Stock, only 1 left!

0

31

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

33

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

35

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0
