TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 406294345 - 408644345) (Rev B) (2020) Drawbar Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

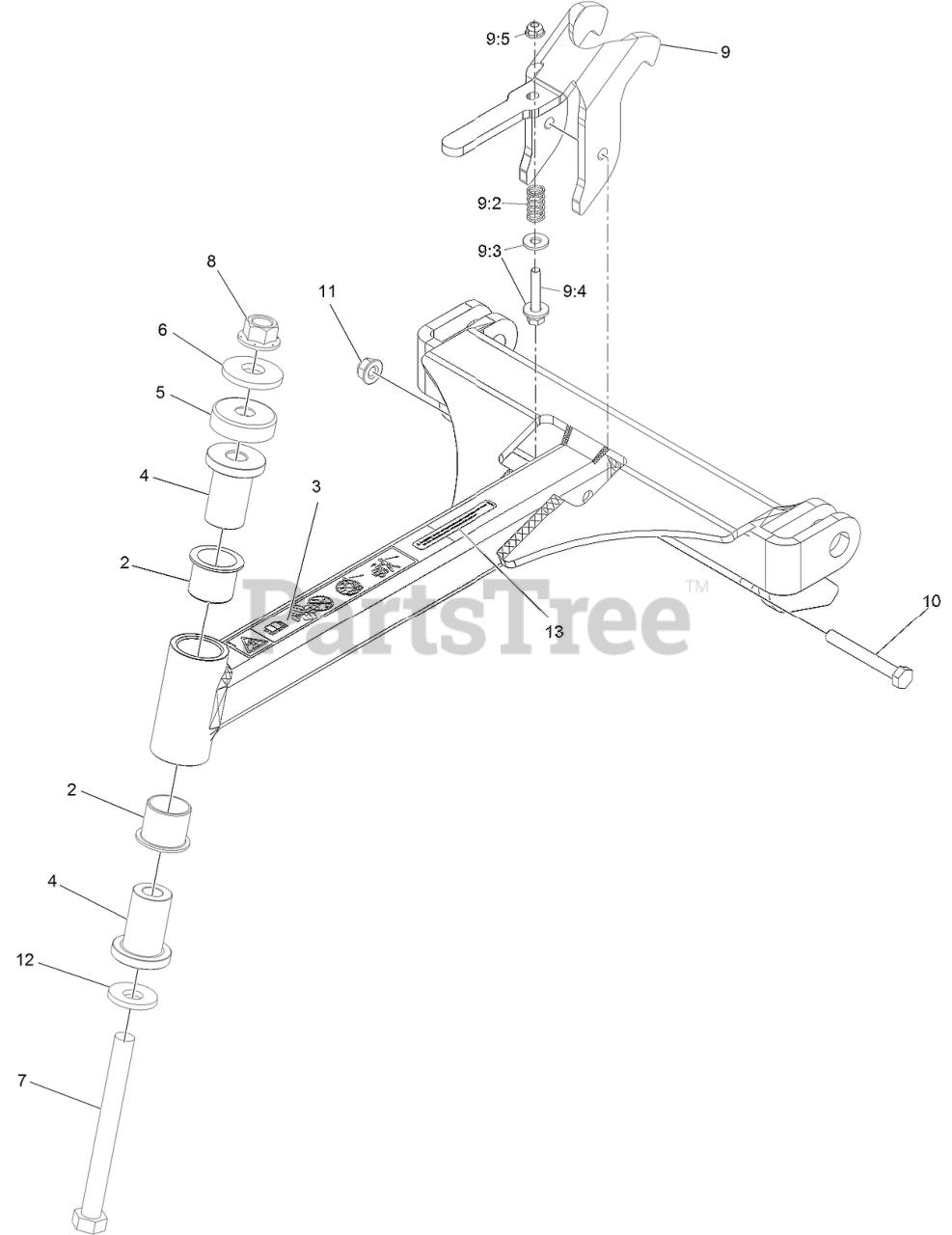

Drawbar Assembly Parts Diagram

  • Title

2

Exmark 126-1963

BUSHING-PIVOT

$7.49

$

In Stock, Qty 20+

0

3

Exmark 126-1411

DECAL-SULKY HAZARD

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 126-1964

SPACER, PIVOT

$26.99

$

In Stock, only 1 left!

0

5

Exmark 116-6313

COVER, DUST

$3.49

$

In Stock, Qty 5

0

6

Exmark 116-8429

WASHER-BELLEVILLE

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 126-2125

TRANSPORT LATCH ASM

$75.99

$

Usually ships in 3-6 days

0

9:2

Exmark 116-6523

SPRING, COMPRESSION

$6.49

$

Usually ships in 3-6 days

0

9:3

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

9:4

Exmark 321-37

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

9:5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

13

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
