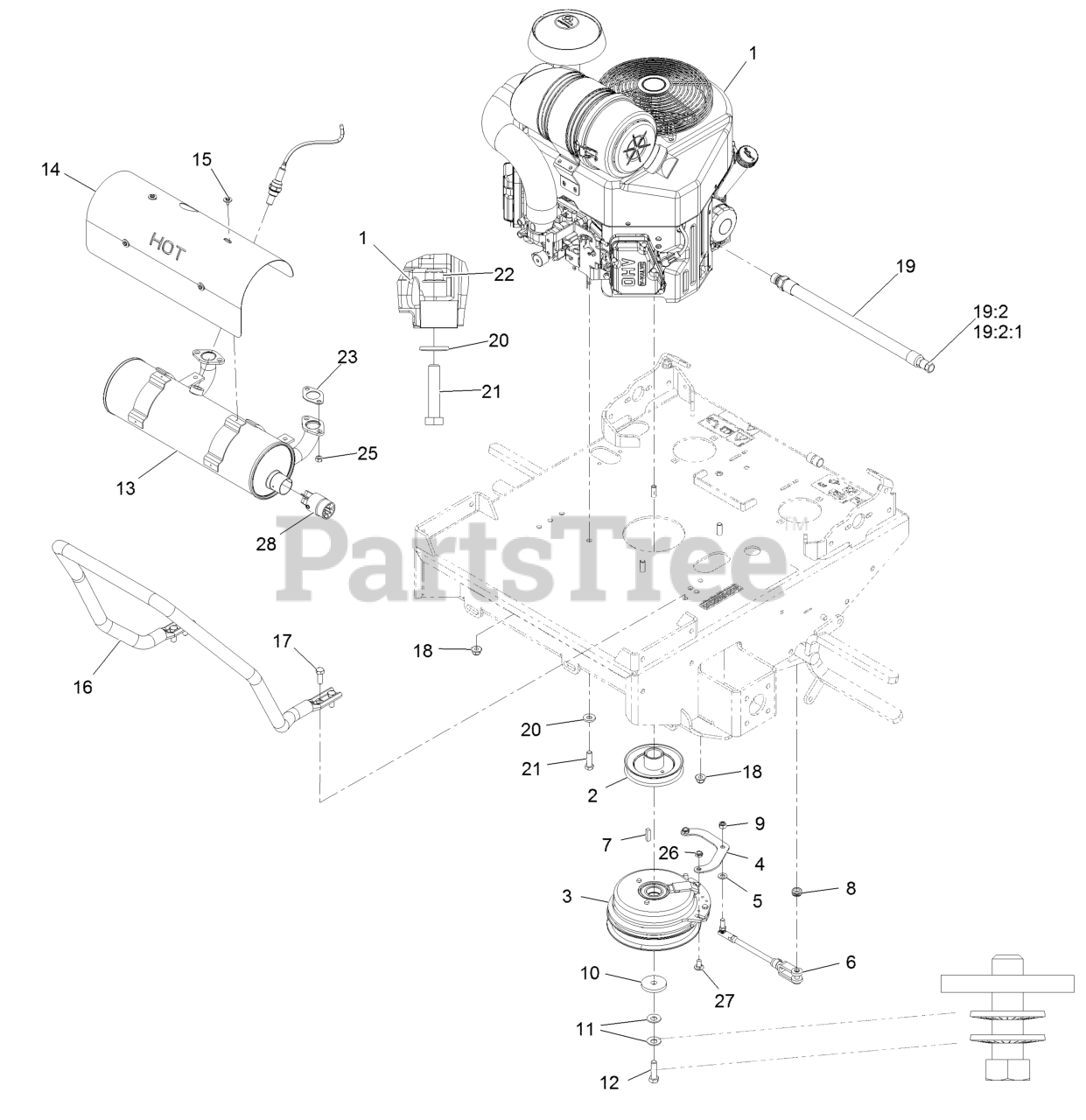

TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

Engine Assembly Parts Diagram

  • Title
1

Engine, Kohler Ecv650-3017

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 126-2605

Sheave W/ Hub

$67.99

$

Usually ships in 3-6 days

0

3

Exmark 126-2601

Clutch, 200 Ft/Lbs, 1.13

$593.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2602

Strap, Clutch

$9.99

$

In Stock, only 2 left!

0

5

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

6

Exmark 126-0620

ASM, Clutch Anchor

$62.99

$

In Stock, only 2 left!

0

7

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

Note: Apply anti-seize compound to engine crankshaft, pulley hub I.D., clutch bore I.D. and square key.

$2.99

$

In Stock, only 2 left!

0

8

Exmark 237-136

Grommet

$4.49

$

In Stock, only 3 left!

0

9

Exmark 3296-4

Nut-Lock 5/16-24

$0.99

$

In Stock, Qty 9

0

10

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 8

0

11

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 5

0

12

Exmark 87-2080

Bolt-Hex, TAP

$9.49

$

Usually ships in 3-6 days

0

13

Exmark 116-8653

Muffler-Ttx, Efi

$302.99

$

Usually ships in 3-6 days

0

14

Exmark 116-8654

Shield-Muffler,Ttx Efi

$57.99

$

Usually ships in 3-6 days

0

15

Exmark 116-1103

Screw-HH, Thread Forming

$2.99

$

In Stock, Qty 5

0

16

Exmark 116-8575-03

Guard,Air Cleaner
(Superseded to 135-4730-03)

$118.99

$

Usually ships in 3-6 days

0

17

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

18

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-5316

Oil Drain Hose ASM

$54.99

$

In Stock, Qty 14

0

19:2

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

19:2:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 9

0

20

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

21

Exmark 322-7

Screw-HH 5/16-18 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

22

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

23

Exmark 110-6697

Gasket-Exhaust

$

$

Not available

25

Exmark 68-9400

Nut-Flange

$2.99

$

In Stock, only 2 left!

0

26

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 8

0

27

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 5

0

28

Exmark 75-6880

Screen-Arrester, Spark

$113.99

$

Usually ships in 3-6 days
