TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

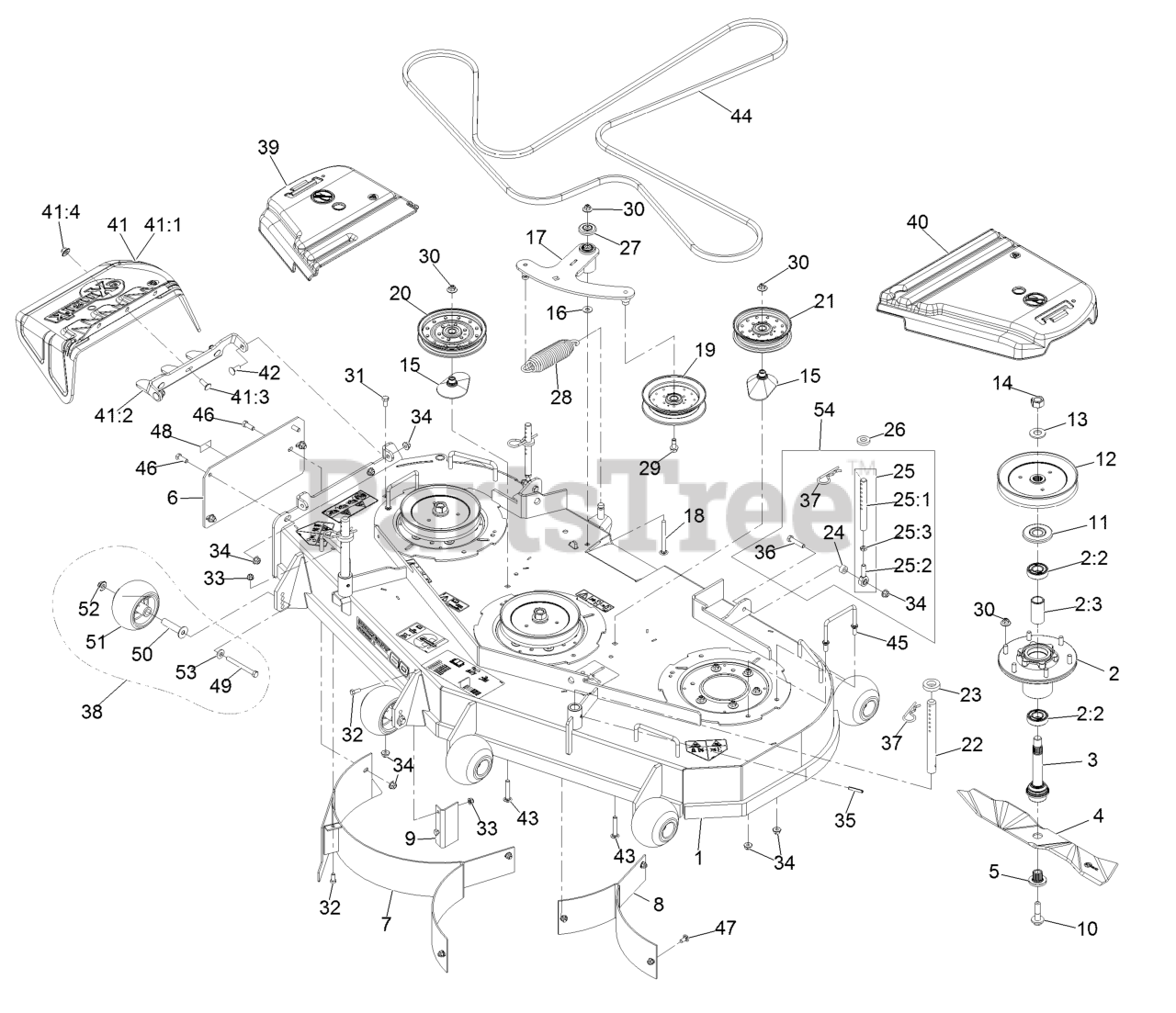

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-2570

ASM, Deck W/ Decals, 60"

$3300.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$167.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

Bearing-Ball

$22.99

$

Usually ships in 3-6 days

0

2:3

Exmark 116-3312

Spacer-Bearing

$9.99

$

In Stock, Qty 6

0

3

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 16

0

4

Exmark 103-6383

Blade, Solid
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 5

0

4

Exmark 103-6388

Blade, Low Lift
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

4

Exmark 103-6393

Blade, Mulching
(Superseded to 103-6393-S)

$30.99

$

In Stock, Qty 20+

0

4

Exmark 103-6403

Blade, Notched
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

4

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

5

Exmark 103-3037

Bushing, Splined

$23.99

$

In Stock, Qty 20+

0

6

Exmark 1-633957-01

Plate, Mulch Cover Mk604

$100.99

$

In Stock, Qty 7

0

7

Exmark 1-632954-03

Wld, Baffle RH Mk604

$242.99

$

Usually ships in 3-6 days

0

8

Exmark 1-632948-03

Wld, Baffle LH Mk604

$103.99

$

In Stock, only 1 left!

0

9

Exmark 1-633956-03

Baffle, Blocker Mk604

$49.99

$

Usually ships in 3-6 days

0

10

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

11

Exmark 116-1286

Guard,Bearing Top .989

$5.99

$

In Stock, Qty 10

0

12

Exmark 116-0676

Sheave,Blade Drive 7.25

$68.99

$

In Stock, Qty 20+

0

13

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 16

0

14

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 11

0

15

Exmark 109-2872

Spacer-Pulley

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

17

Exmark 126-2314

ASM, Deck Idler

$185.99

$

In Stock, only 1 left!

0

18

Exmark 3231-24

Bolt-Carriage 3/8-16 X 3 3/4

$14.99

$

Usually ships in 3-6 days

0

19

Exmark 116-4668

Idler-Pulley, Flanged
(Superseded to 126-9196)

$63.99

$

In Stock, Qty 9

0

20

Exmark 116-4667

Idler-Pulley, Flat
(Superseded to 126-7685)

$63.99

$

In Stock, Qty 17

0

21

Exmark 116-4665

Pulley-Idler, Flat
(Superseded to 126-9187)

$62.99

$

In Stock, Qty 19

0

22

Exmark 1-603001

Rod, Deck Support

$45.99

$

In Stock, only 3 left!

0

23

Exmark 1-413425

Spacer-Deck Support

$6.49

$

In Stock, Qty 16

0

24

Exmark 1-603050

Spacer

$7.99

$

In Stock, only 3 left!

0

25

Exmark 1-414521

Link Assy
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

25:1

Exmark 1-413525

Link, Rear Deck Support

$44.99

$

In Stock, only 2 left!

0

25:2

Exmark 1-613204

Balljoint

$31.99

$

In Stock, only 2 left!

0

25:3

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

0

26

Exmark 1-323539

Spacer-Blade Drive

$2.49

$

In Stock, Qty 20+

0

27

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

28

Exmark 116-6317

Spring-Extension

$27.99

$

In Stock, Qty 11

0

29

Exmark 126-1680

Screw-Hfh

$1.99

$

In Stock, Qty 11

0

30

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

31

Exmark 323-4

Screw-HH 3/8-16 X 3/4

$3.99

$

In Stock, only 3 left!

0

32

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

33

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

34

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-806332

Rollpin 1/4 X 1 1/2
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 8

0

36

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-806009

Hairpin-Cotter #206

$2.99

$

In Stock, Qty 20+

0

38

Exmark 116-9981

Kit, Anti-Scalp Roller

$53.99

$

In Stock, Qty 20+

0

39

Exmark 116-0094

Cover-Belt, RH

$84.99

$

In Stock, only 4 left!

0

40

Exmark 109-6938

Cover-Belt, LH

$94.99

$

In Stock, only 2 left!

0

41

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

41:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 7

0

41:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

41:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

41:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

42

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

43

Exmark 3231-40

Bolt-Carriage 3/8-16 X 2 1/4

$2.99

$

In Stock, only 3 left!

0

44

Exmark 126-2539

Belt, Deck Drive
(Superseded to 126-2539-SL)

$180.99

$

In Stock, Qty 8

0

45

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

46

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

48

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

49

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

50

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 5

0

51

Exmark 103-8415

Roller-Anti-Scalp

$26.99

$

In Stock, Qty 12

0

52

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

53

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

54

Exmark 1-411532

Kit, Support Link W/Pin

$147.99

$

In Stock, Qty 5

0
