TTX650EKC604N0 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 316000000 - 399999999) (2016) Stand-On Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

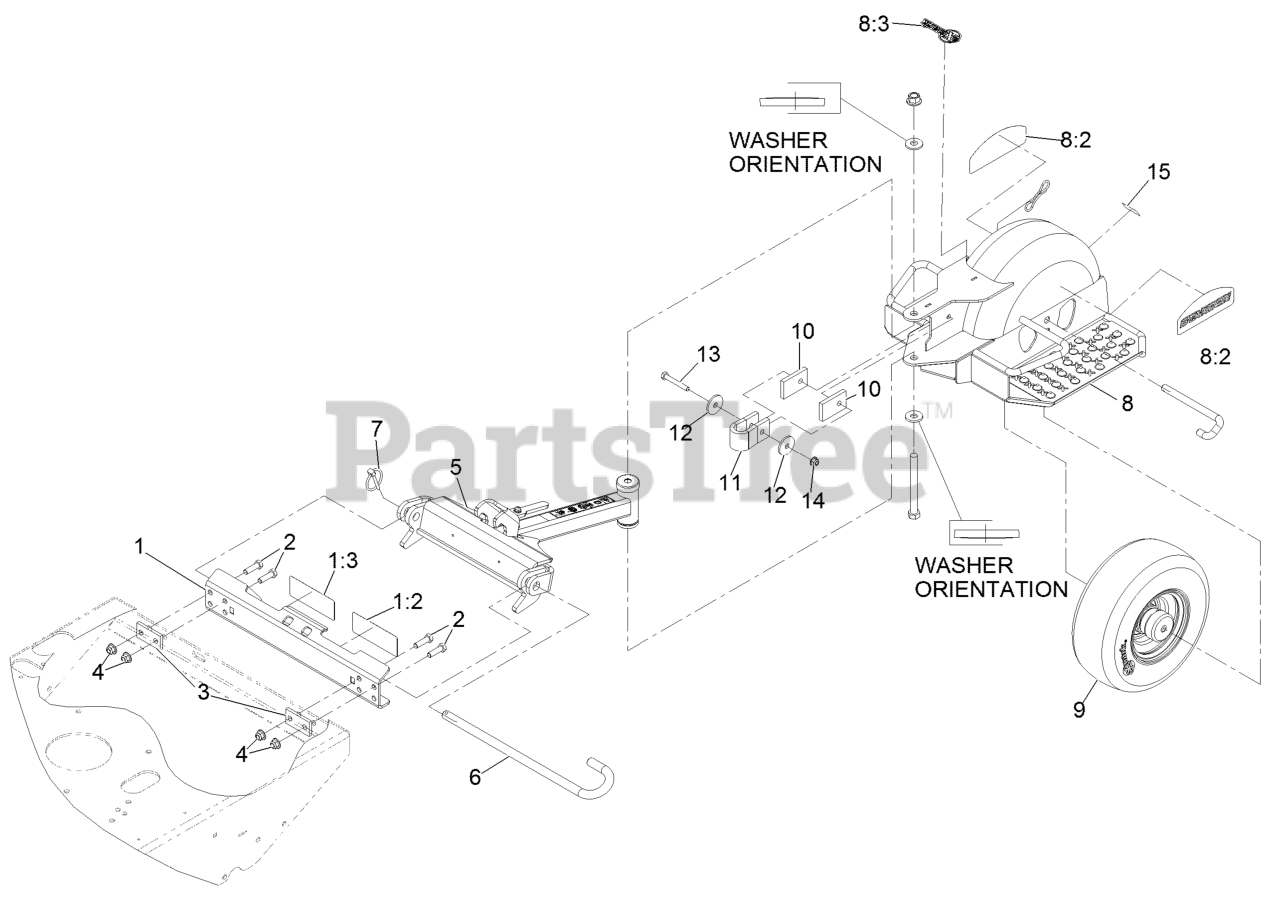

Stand-On Assembly Parts Diagram

  • Title

1

Exmark 126-1955

ASM, MOUNT PLATE

$161.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-8225

DECAL-BELT DRIVE WARNING

$6.49

$

Usually ships in 3-6 days

0

1:3

Exmark 126-1400

DECAL-WARNING, SULKY

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Exmark 103-6663

PLATE,BACK-UP (PLATED)

$5.49

$

In Stock, only 4 left!

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 126-1958

ASM, DRAW BAR

$576.99

$

Usually ships in 3-6 days

0

6

Exmark 116-6302

PIN, PIVOT

$53.99

$

In Stock, only 2 left!

0

7

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

8

Exmark 126-1952

ASM-SULKY FRAME W/ DECALS

$513.99

$

Usually ships in 3-6 days

0

8:2

Exmark 126-6893

DECAL, STANDON

$7.99

$

Usually ships in 3-6 days

0

8:3

Exmark 126-6894

DECAL, EXMARK

$6.49

$

Usually ships in 3-6 days

0

9

Exmark 116-7228

ASM, WHEEL AND BEARINGS

$259.99

$

In Stock, only 1 left!

0

10

Exmark 103-6654

PAD,STOP

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 103-6652

126-9101
(Superseded to 126-9101)

$5.99

$

In Stock, only 2 left!

0

12

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

13

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0
