TTX650EKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Fuel Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

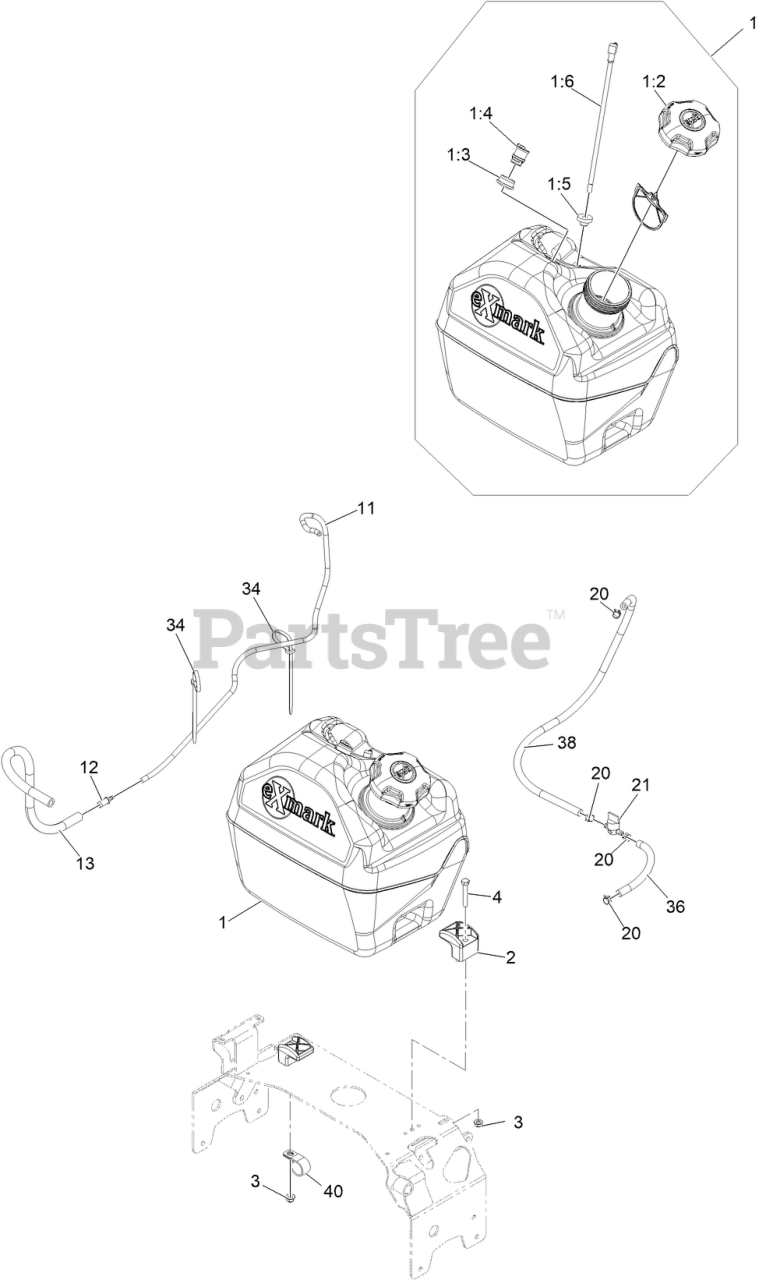

Fuel Assembly Parts Diagram

  • Title

1

Exmark 140-4343

Fuel Tank ASM, 5 Gal

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

1:6

Exmark 109-9364

FITTING, FUEL W/LINE AND SCREEN
(Superseded to 116-2459)

$41.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

11

Exmark 126-1679

HOSE, EMISSIONS

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 98-2952

FITTING-STRAIGHT

$9.99

$

In Stock, only 1 left!

0

13

Exmark 119-8562

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

20

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

34

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

36

Exmark 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

38

Exmark 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

40

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0
