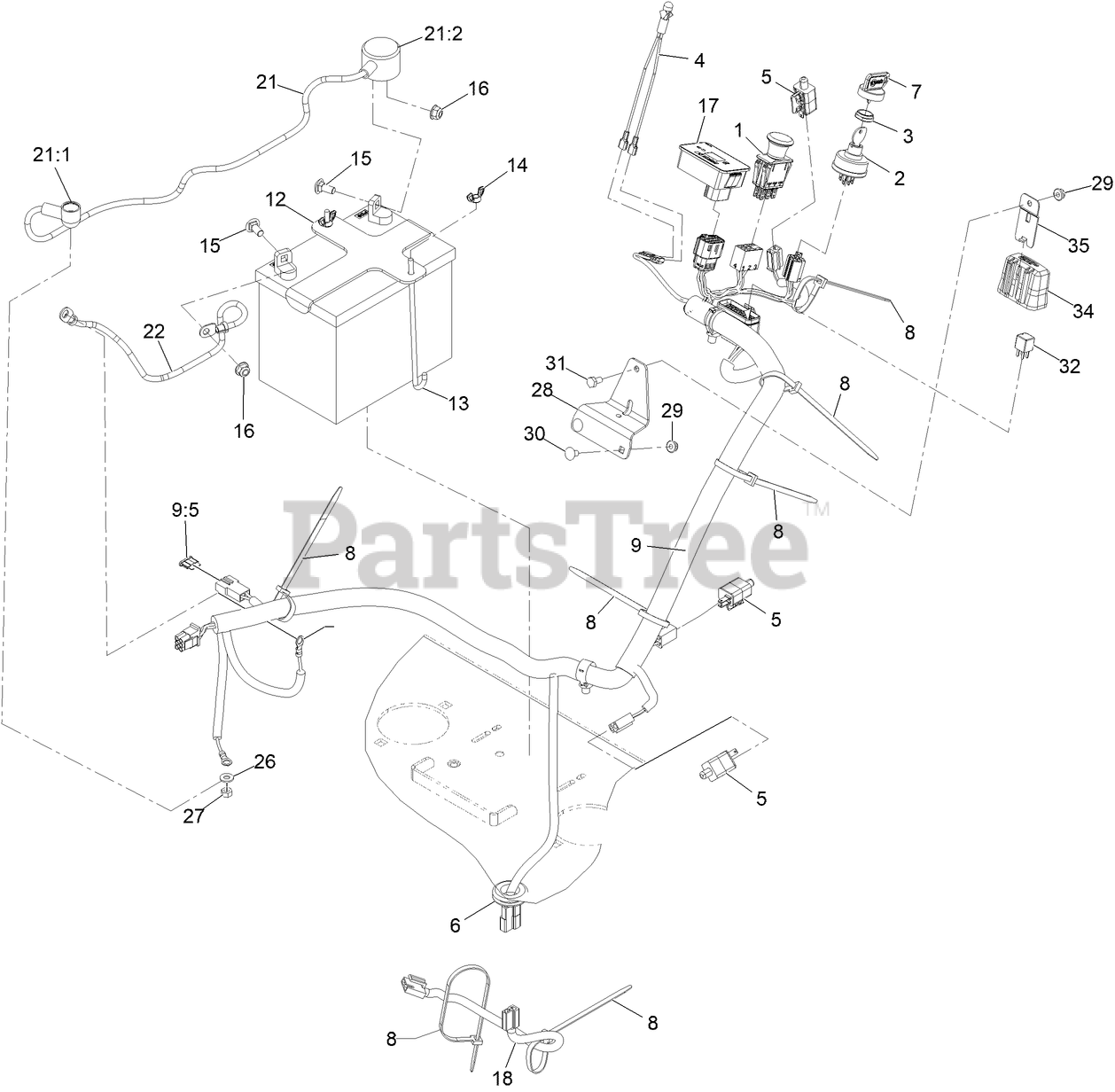

TTX650EKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Electrical Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

Electrical Assembly Parts Diagram

  • Title

1

Exmark 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

2

Exmark 135-2253

SWITCH, KEY START

$30.99

$

In Stock, only 3 left!

0

3

Exmark 103-0498

NUT-SWITCH, IGNITION

$2.99

$

In Stock, Qty 6

0

4

Exmark 1-643267

INDICATOR-LED, RED

$23.99

$

In Stock, only 1 left!

0

5

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 6

0

6

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

8

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Exmark 126-6170

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$231.99

$

Usually ships in 3-6 days

0

9:5

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

12

Exmark 135-2056

BRACKET, BATTERY HOLD DOWN

$27.99

$

In Stock, only 1 left!

0

13

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, only 2 left!

0

14

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

15

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 142-2440

MODULE-HOUR METER

$137.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$13.99

$

In Stock, only 2 left!

0

21

Exmark 109-7621

POSITIVE BATTERY CABLE AS

$39.99

$

Usually ships in 3-6 days

0

21:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

21:2

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 4 left!

0

22

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

26

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

28

Exmark 126-6603-03

BRACKET-MOUNTING, FUSEBLOCK

$16.99

$

Usually ships in 3-6 days

0

29

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

31

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

32

Exmark 126-3991

RELAY-MICRO

$39.99

$

In Stock, only 1 left!

0

34

Exmark 32180-176

COVER-BLOCK, FUSE

$7.49

$

Usually ships in 3-6 days

0

35

Exmark 32180-177

CLIP-MOUNTING

$5.49

$

In Stock, only 1 left!

0
