TTX650EKC60400 - Exmark 60" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Controls Assembly Parts Diagram

60" Turf Tracer X-Series Walk-Behind Mower, Kohler

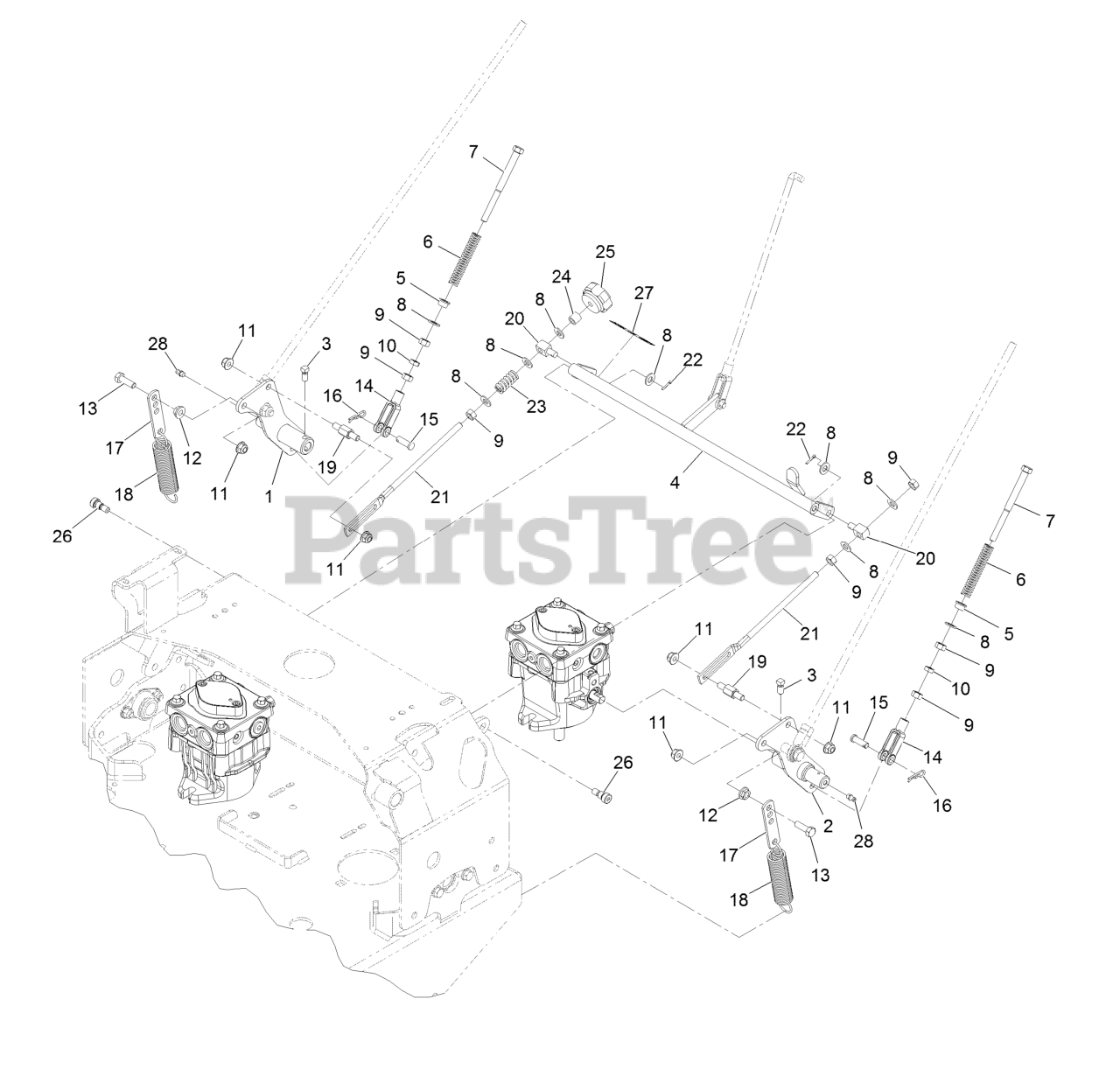

Controls Assembly Parts Diagram

  • Title
1

Exmark 116-9975

Weld, Motion Control, Rt

$67.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9974

Weld, Motion Control, Lt

$67.99

$

Usually ships in 3-6 days

0

3

Exmark 1-803022

Setscrew-5/16-18 X 5/8

$2.99

$

In Stock, Qty 20+

0

4

Exmark 126-2982-01

Weld, Speed Control

$85.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603735

Bushing-Flanged

$6.49

$

In Stock, only 4 left!

0

6

Exmark 103-0265

Spring, Neutral Return

$5.49

$

In Stock, only 1 left!

0

7

Exmark 1-603737

Bolt-Neutral Return

$9.49

$

In Stock, only 2 left!

0

8

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3219-2

Nut-Hex 5/16-24

$0.99

$

In Stock, Qty 11

0

10

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

11

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

12

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

13

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, only 1 left!

0

15

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

0

16

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-613089

Tab-Spring, Extension

$10.99

$

In Stock, Qty 5

0

18

$14.99

$

In Stock, only 4 left!

0

19

Exmark 126-0610

Pin, Motion Control

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 1-603676

Swivel-Adjustable, Short
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

21

Exmark 1-413350

Link-Control, Speed

$15.99

$

In Stock, only 1 left!

0

22

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

23

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

24

$5.49

$

In Stock, only 1 left!

0

25

Exmark 103-3060

Knob-Tracking

$6.99

$

In Stock, only 1 left!

0

26

Exmark 1-809056

Screw-Sh 5/16-18 X 1 3/8

$7.99

$

In Stock, only 2 left!

0

27

Exmark 116-7918

Decal-Tracking Adjustment

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0
