TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 411294212 - 413950473) (Rev A) (2022) Frame Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

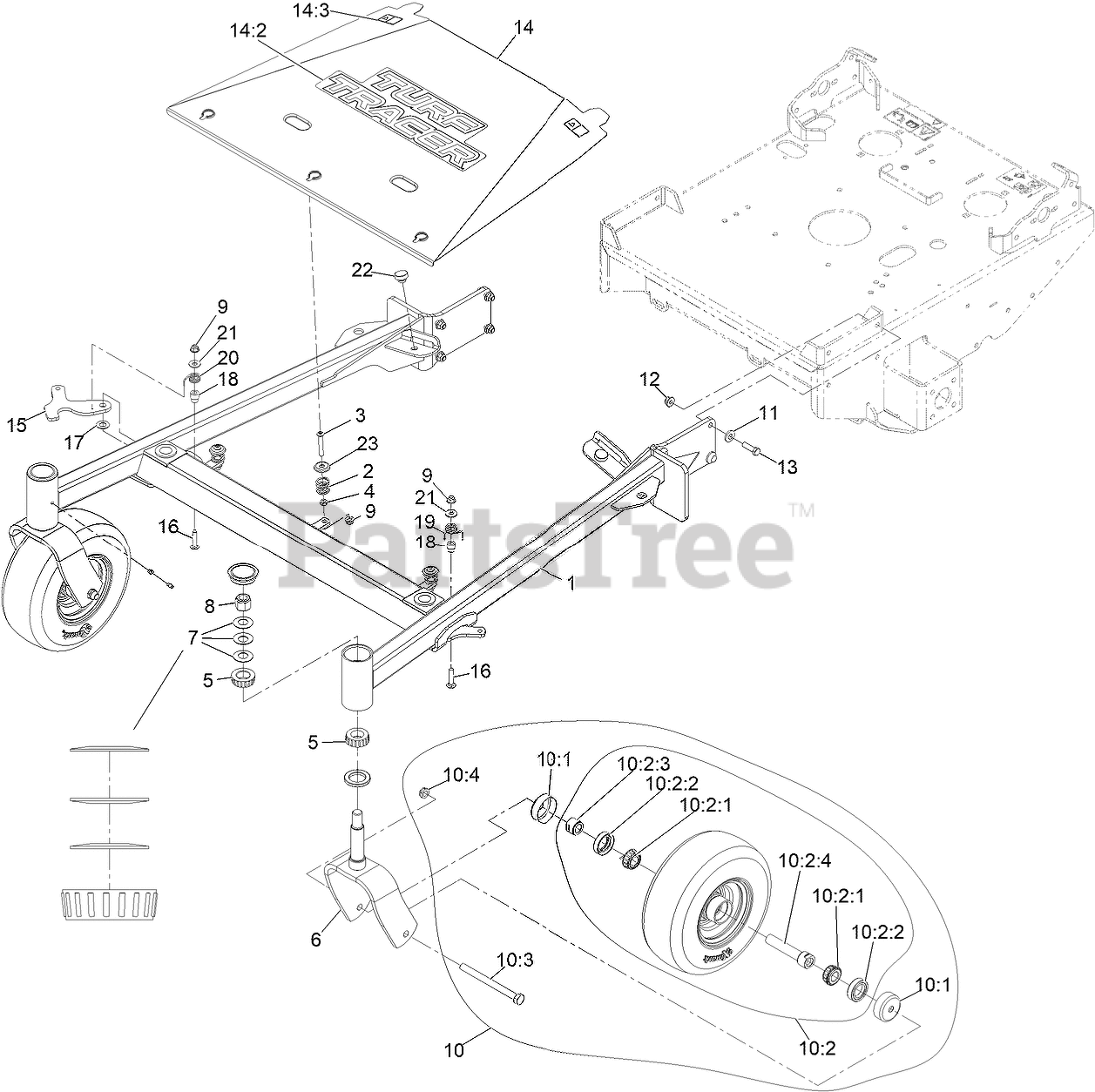

Frame Assembly Parts Diagram

  • Title

1

Exmark 142-7664

ASM-52" Ttx Front Frame

$918.99

$

Usually ships in 0 days

0

2

Exmark 126-1503

SPRING

$2.99

$

In Stock, only 1 left!

0

3

Exmark 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

4

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

6

Exmark 103-1891-01

WLD, CASTER FORK

$117.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Exmark 109-3524

ASM,WHEEL&BEARINGS

$246.99

$

In Stock, Qty 10

0

10:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

10:2

Wheel And Bearing ASM

Note: Not serviced separately

$

$

Not available

10:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

10:2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

10:2:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 12

0

10:2:4

Exmark 126-5359

CASTER AXLE ASM

$18.99

$

In Stock, only 2 left!

0

10:3

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

10:4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 142-7659

ASM-52" Ttx Center Shield

$201.99

$

Usually ships in 0 days

0

14:2

Exmark 126-6892

DECAL-TURF TRACER

$15.99

$

In Stock, only 4 left!

0

14:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

15

Exmark 135-4827-01

LATCH, DECK HEIGHT

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

17

Exmark 110-4068

Washer-Plastic

$3.99

$

Usually ships in 3-6 days

0

18

Exmark 108-9087

COLLAR-BASKET

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 75-3960

SPRING-TORSION, LH (YELLOW)

$28.99

$

Usually ships in 3-6 days

0

20

Exmark 75-3970

Spring-Torsion, RH

$28.99

$

In Stock, only 1 left!

0

21

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

23

Exmark 66-6310

Washer-Cup

$4.99

$

Usually ships in 3-6 days

0
