Exmark TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Handle Assembly Parts Lookup with Diagrams

1

Exmark 126-2642-03

Weld, Handle

$422.99

$

Usually ships in 3-6 days

2

Exmark 103-0815

Grip-Bar, Handle

$10.99

$

In Stock, Qty 10

3

Exmark 126-2820

ASM, Console W/ Decals

$169.99

$

Usually ships in 3-6 days

3:2

Exmark 135-2862

Decal-Console

$26.99

$

Usually ships in 3-6 days

3:3

Exmark 103-2242

Decal, Ecs Instruction LH

$8.99

$

In Stock, Qty 7

3:4

Exmark 103-2243

Decal, Ecs Instruction RH

$8.99

$

In Stock, Qty 7

3:5

Exmark 126-6877

Decal, Exmark Logo

$7.49

$

In Stock, Qty 10

4

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 6

5

Exmark 103-0027

Bushing-Lever, Drive

$20.99

$

In Stock, only 3 left!

6

Exmark 103-2513

Asm, Drive Lever RH

$127.99

$

In Stock, only 1 left!

6:1

Exmark 116-4082

Wld,RH Drive Lever

$51.99

$

Usually ships in 3-6 days

6:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

In Stock, only 2 left!

7

Exmark 1-633349

Spring-Compression

$5.49

$

In Stock, only 2 left!

8

Exmark 126-2921

Latch, Ecs

$11.99

$

In Stock, Qty 5

9

Exmark 103-1371

Thumb Latch Asm RH

$28.99

$

In Stock, Qty 5

10

Exmark 103-2514

Asm, Drive Lever LH

$127.99

$

In Stock, only 4 left!

10:1

Exmark 116-4081

Wld,LH Drive Lever

$51.99

$

In Stock, only 1 left!

10:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

In Stock, only 2 left!

11

Exmark 103-1372

Thumb Latch Asm LH

$28.99

$

In Stock, only 1 left!

12

Exmark 126-2931

Screw-Shoulder

$2.99

$

In Stock, Qty 11

13

Exmark 1-303365

Bushing-Nylon

$5.49

$

In Stock, Qty 10

14

Exmark 103-0769-03

Rod Weldment, OPC

$42.99

$

In Stock, Qty 20+

15

Exmark 116-4079

Wld,LH OPC Lever

$33.99

$

In Stock, only 1 left!

15:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 5

16

Exmark 116-4080

Wld,RH OPC Lever

$33.99

$

In Stock, Qty 19

16:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 5

17

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

18

Exmark 1-323244

Washer-Friction

$7.99

$

Usually ships in 3-6 days

19

Exmark 126-0148

Lever, Shift W/Grip

$51.99

$

Usually ships in 3-6 days

19:2

Exmark 103-5994

Grip-Handle, Steering

$13.99

$

In Stock, only 3 left!

20

Exmark 1-603716

Washer-Friction Disc

$5.49

$

In Stock, only 2 left!

21

Exmark 322-11

Screw-HH 5/16-18 X 2 1/4

(Superseded to 120-9738) 

$1.49

$

In Stock, Qty 20+

22

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

23

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

24

Exmark 109-3958

Control-Throttle

$41.99

$

In Stock, only 2 left!

25

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 15

26

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

27

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

28

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

29

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

30

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

31

Exmark 321-14

Screw-HH 1/4-20 X 2 3/4

$4.99

$

In Stock, Qty 12

32

Exmark 1-303363

Spring-Extension

$6.49

$

In Stock, only 1 left!

33

Exmark 1-413225

Rod, Speed Control

$15.99

$

In Stock, Qty 5

34

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, only 1 left!

35

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

36

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

37

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

38

Exmark 322-9

Screw-HH 5/16-18 X 1 3/4

$3.49

$

In Stock, only 3 left!

39

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

41

Exmark 103-1166

Spacer-Tube, Pump Link

$6.49

$

In Stock, only 3 left!

42

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

43

Exmark 103-2463

Balljoint

$28.99

$

In Stock, only 2 left!

44

Exmark 103-1167

Joint-Ball End

$31.99

$

In Stock, Qty 10

45

Exmark 103-1148

Rod,Drive Lever

$18.99

$

In Stock, only 3 left!

46

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

47

Exmark 3219-3

Nut-Hex 3/8-24

$1.99

$

In Stock, Qty 20+

48

Exmark 3220-16

Nut-Jam 3/8-24 LH

$1.99

$

In Stock, Qty 5

49

Exmark 116-3414

Drive Link ASM

$33.99

$

Usually ships in 3-6 days

50

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

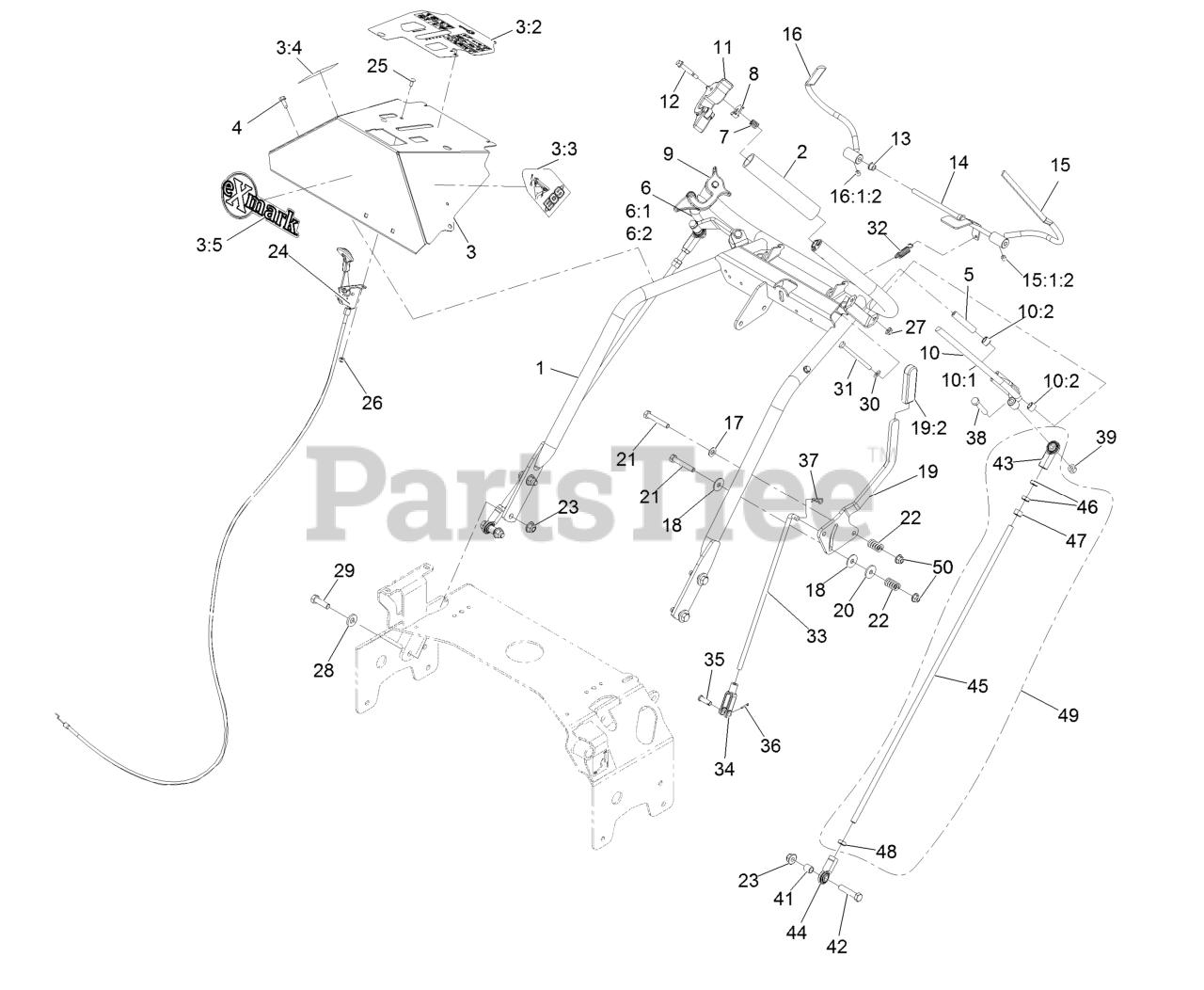

TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Handle Assembly Parts Diagram

Handle Assembly Parts Diagram
