TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

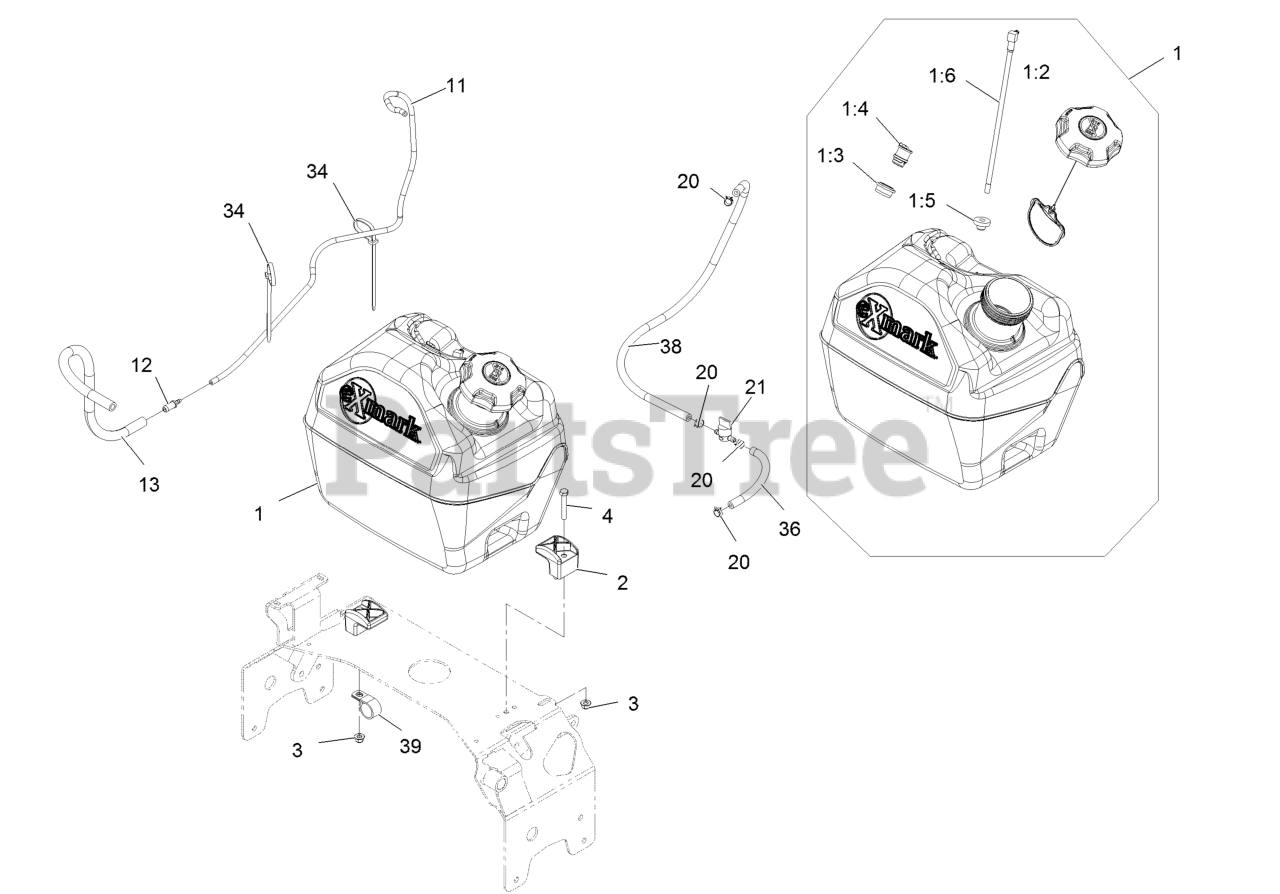

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-2855

ASM, Fuel Tank 5 Gal
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

Cap-Fuel, Ratcheting

$26.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

Grommet

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

Valve-Vent, Fuel

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

Bushing

$5.99

$

In Stock, Qty 20+

0

1:6

Exmark 109-9364

Fitting-Fuel (W/Line And Screen)
(Superseded to 116-2459)

$39.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

Clamp

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 322-10

Screw-HH 5/16-18 X 2

$0.99

$

In Stock, Qty 5

0

11

Exmark 126-1679

Hose, Emissions

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 98-2952

Fitting-Straight

$9.49

$

Usually ships in 3-6 days

0

13

Exmark 119-8562

Hose-Fuel

$20.99

$

In Stock, only 1 left!

0

20

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603770

Valve-Fuel

$7.99

$

In Stock, Qty 8

0

34

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

36

Exmark 110-1876

Hose-Fuel

$12.99

$

In Stock, only 2 left!

0

38

Exmark 109-0275

Hose-Fuel Line 32"

$13.99

$

Usually ships in 3-6 days

0

39

Exmark 1-643312

Clip-Loom

$6.49

$

Usually ships in 3-6 days

0
