TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 315000000 - 315999999) (2015) Frame Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

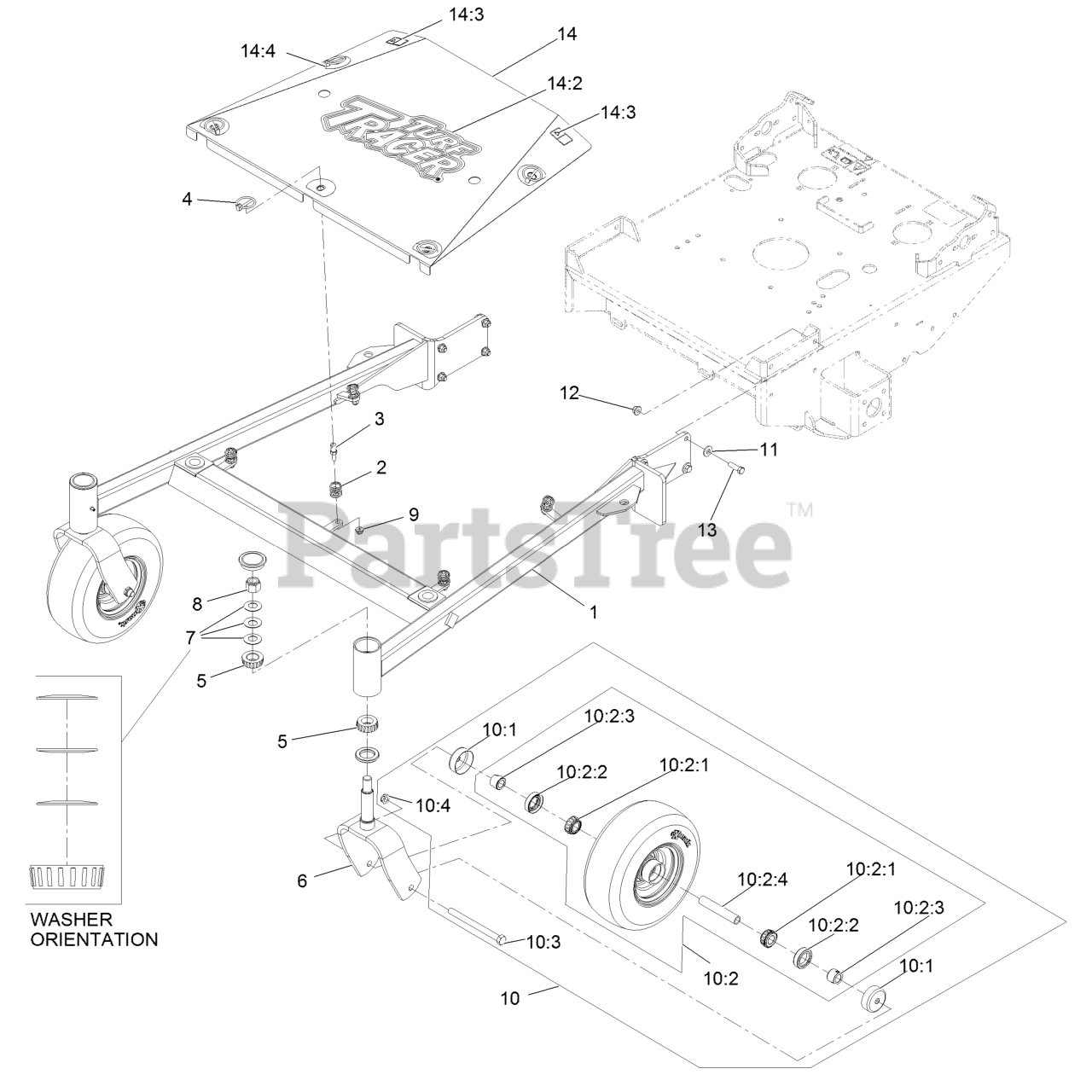

Frame Assembly Parts Diagram

  • Title
1

Exmark 126-2540

ASM, FRONT FRAME W/ BEARI

$990.99

$

Usually ships in 3-6 days

0

2

$2.99

$

In Stock, only 1 left!

0

3

Exmark 126-1504

PIN-SPRING
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

5

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

6

Exmark 103-1891-01

WLD, CASTER FORK

$117.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Exmark 109-3524

ASM,WHEEL&BEARINGS

$246.99

$

In Stock, Qty 20+

0

10:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

10:2

ASM,Wheel And Bearing

Note: Not serviced separately

$

$

Not available

10:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

10:2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

10:2:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 12

0

10:2:4

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$18.99

$

In Stock, only 2 left!

0

10:3

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

10:4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 126-2544

ASM, CENTER SHIELD W/ DEC

$144.99

$

Usually ships in 3-6 days

0

14:2

Exmark 103-3013

DECAL,TTH MODEL

$35.99

$

In Stock, Qty 10

0

14:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

14:4

Exmark 126-1692

DECAL-SCRATCH COVER

$16.99

$

Usually ships in 3-6 days

0
