TTX24KAECA - Exmark Turf Tracer X-Series Walk-Behind Mower, 24hp Kawasaki, CARB (SN: 920000 - 999999) (2011) ECS Upper Handles and Controls Assembly Parts Diagram

Turf Tracer X-Series Walk-Behind Mower, 24hp Kawasaki, CARB

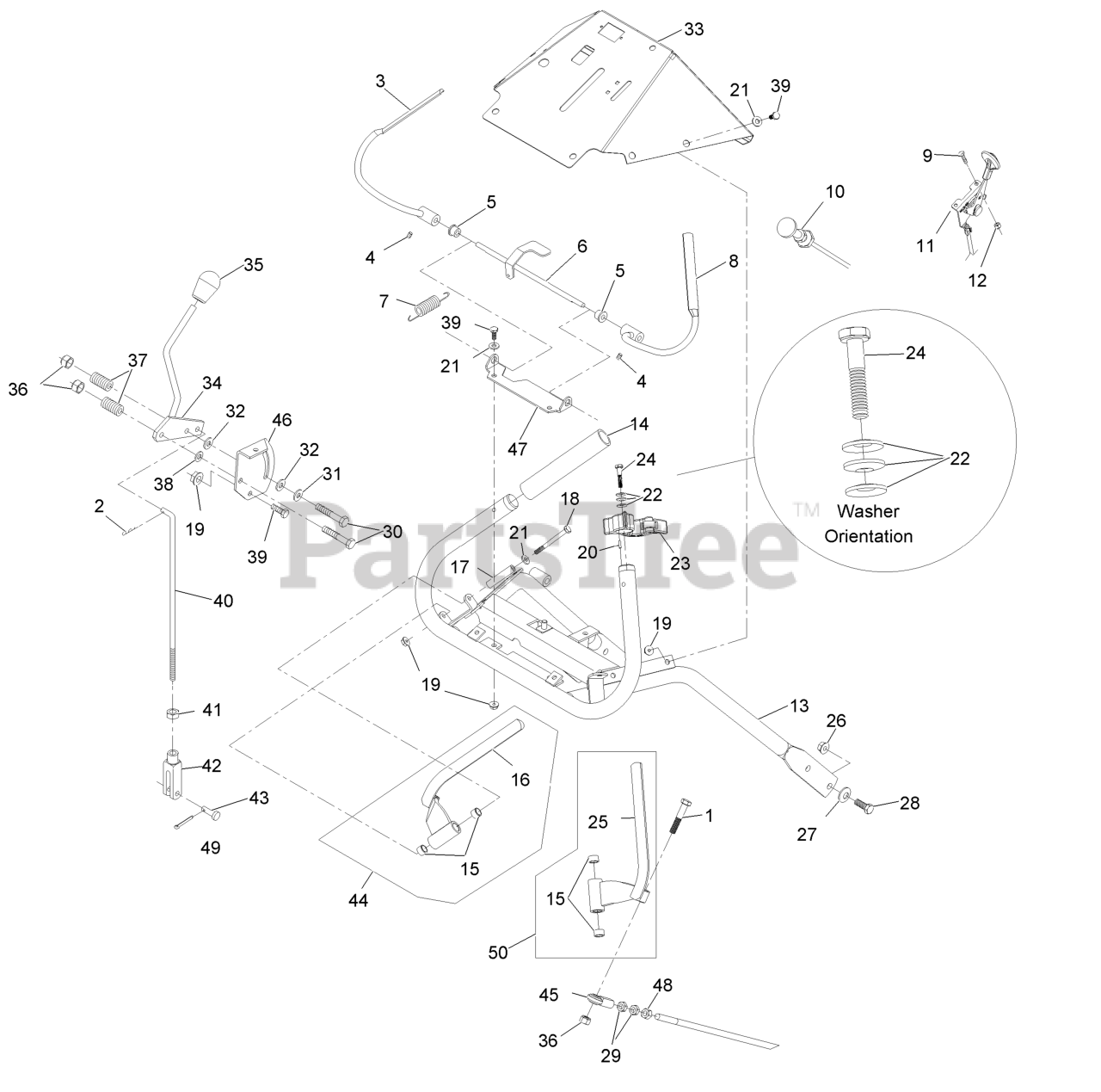

ECS Upper Handles and Controls Assembly Parts Diagram

  • Title

1

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$33.99

$

In Stock, only 1 left!

0

4

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 5

0

5

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

6

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 7

0

7

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

8

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$33.99

$

In Stock, only 1 left!

0

9

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

10

Exmark 110-5720

CONTROL-CHOKE, PUSH / PUL

$66.99

$

In Stock, Qty 9

0

11

Exmark 116-2426

CONTROL, THROTTLE

$44.99

$

In Stock, Qty 15

0

12

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Exmark 103-1537-03

WLD,TTH ECS HANDLE

$665.99

$

Usually ships in 3-6 days

0

14

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

0

15

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

16

Exmark 116-4081

WLD,LH DRIVE LEVER

$51.99

$

In Stock, only 1 left!

0

17

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

18

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

21

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

23

Exmark 103-1371

ASM,LATCH RH THUMB

$28.99

$

In Stock, Qty 5

0

23

Exmark 103-1372

ASM,LATCH LH THUMB

Note: Not illustrated

$28.99

$

In Stock, only 1 left!

0

24

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 19

0

25

Exmark 116-4082

WLD,RH DRIVE LEVER

$51.99

$

Usually ships in 3-6 days

0

26

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

28

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

30

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

31

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

32

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

0

33

Exmark 116-3389

Console 116-3387-03 W/Decals

$

$

Currently unavailable

34

Exmark 116-4083

116-8632
(Superseded to 116-8632)

$62.99

$

In Stock, only 1 left!

0

35

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$22.99

$

Usually ships in 3-6 days

0

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-413225

ROD,SPEED CONTROL

$15.99

$

In Stock, Qty 5

0

41

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

42

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

43

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

44

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

0

45

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

46

Exmark 103-0503

BRACKET,SHIFTER SLIDE (PL

$14.99

$

Usually ships in 3-6 days

0

47

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, only 1 left!

0

48

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

49

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

50

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

0
