Exmark TTS680PKC483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Engine Deck Parts Lookup with Diagrams

1

Exmark 126-1238

ASM, Engine Deck W/Decals

$867.99

$

Usually ships in 3-6 days

1:2

Exmark 116-8253

Decal-Drive Release

$2.99

$

Usually ships in 3-6 days

1:3

Exmark 126-1400

Decal-Warning, Sulky

$5.49

$

Usually ships in 3-6 days

1:4

Exmark 98-1977

Decal-Warning

$11.99

$

Usually ships in 3-6 days

2

Exmark 1-412082-01

Mount-Wheel Motor

$140.99

$

Usually ships in 3-6 days

3

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

4

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

5

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

6

Exmark 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 13

7

Exmark 103-2056

Shield-Drag

$63.99

$

In Stock, Qty 8

8

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

9

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

10

Exmark 1-633102

Bearing-Flanged

$18.99

$

In Stock, only 3 left!

11

Exmark 3234-47

Screw-HH Flg 5/16-18 X 3/4

$2.99

$

In Stock, Qty 20+

12

Exmark 1-643312

Clip-Loom

$6.49

$

Usually ships in 3-6 days

13

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

14

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

15

Exmark 126-2181

ASM, Tank Support W/Decal

$331.99

$

Usually ships in 3-6 days

15:2

Exmark 116-5988

Decal-Park Brake, CE

$14.99

$

In Stock, only 1 left!

16

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

17

Exmark 126-6572

Decal-S-Series

$3.49

$

In Stock, only 2 left!

18

Exmark 116-9964

Brake

$174.99

$

Usually ships in 3-6 days

19

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

20

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

21

Exmark 3296-44

Nut-Lock, NI

$3.49

$

Usually ships in 3-6 days

22

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

23

Exmark 322-6

Screw-HH 5/16-18 X 1 1/4

$4.49

$

In Stock, Qty 20+

24

Exmark 1-323161

Spring

$11.99

$

In Stock, only 3 left!

25

Exmark 1-413347

Sleeve-Bushing

$2.99

$

In Stock, Qty 20+

26

Exmark 1-413344

Bushing-Pivot

$19.99

$

In Stock, only 2 left!

27

Exmark 126-2180

ASM, Brake Lever W/ Grip

$41.99

$

In Stock, only 1 left!

27:2

Exmark 1-303020

Grip-Lever

$2.99

$

In Stock, Qty 6

28

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

29

Exmark 323-10

Screw-HH 3/8-16 X 2

$0.99

$

In Stock, Qty 20+

30

Exmark 116-9959

Linkage, Brake

$41.99

$

In Stock, only 1 left!

31

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, Qty 12

32

Exmark 103-2399

Pin-Clevis Spring 3/8

$6.49

$

In Stock, Qty 6

39

Exmark 117-2718

Decal-Arrester, Spark

$7.99

$

In Stock, only 1 left!

40

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

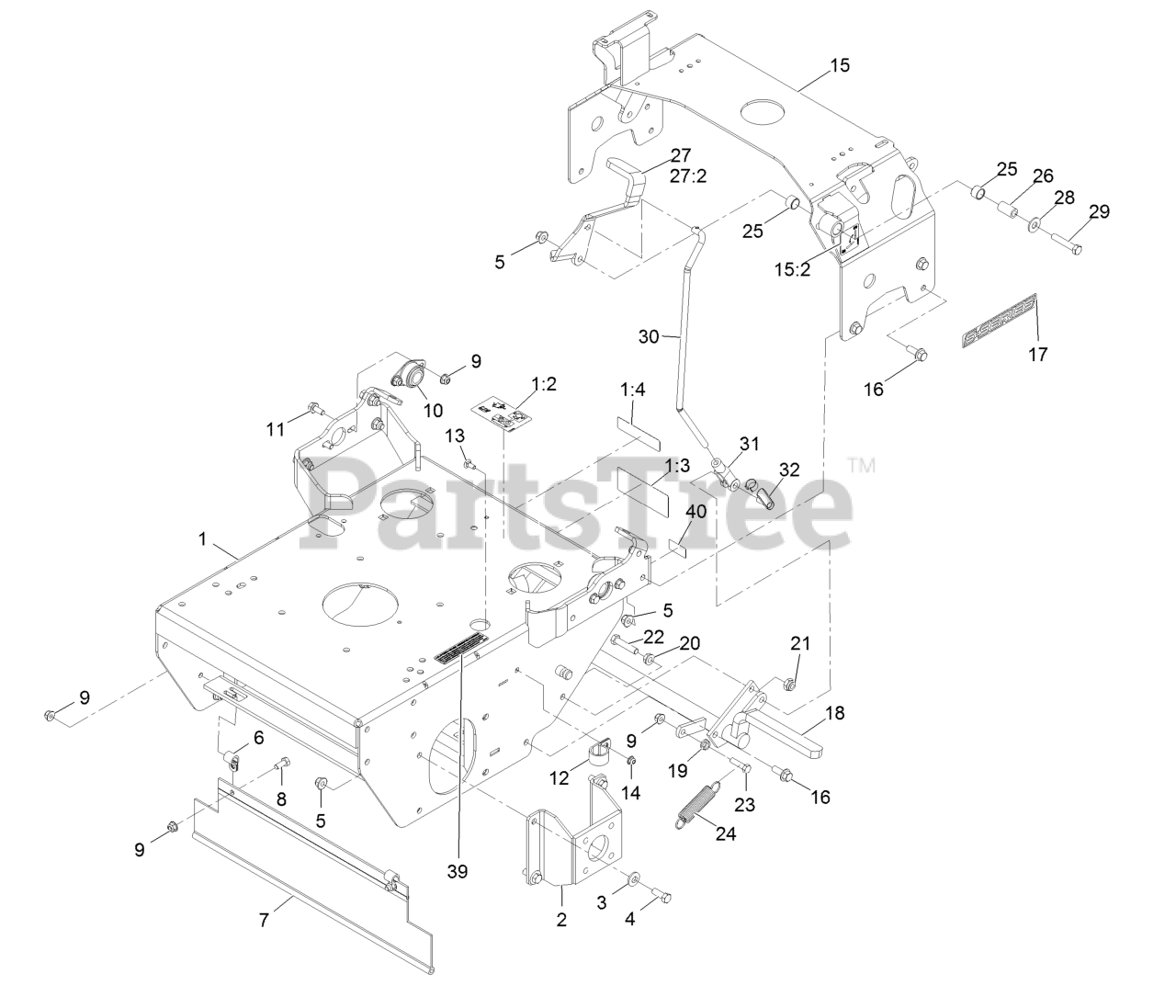

TTS680PKC483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Engine Deck Parts Diagram

Engine Deck Parts Diagram
