Exmark TTS680PKC483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 316000000 - 399999999) (2016) Engine Deck Parts Lookup with Diagrams

1

Exmark 126-1238

ASM, ENGINE DECK W/ DECAL

$867.99

$

Usually ships in 3-6 days

1:2

Exmark 116-8253

DECAL-DRIVE RELEASE

$3.49

$

Usually ships in 3-6 days

1:3

Exmark 126-1400

DECAL-WARNING, SULKY

$5.49

$

Usually ships in 3-6 days

1:4

Exmark 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

2

Exmark 1-412082-01

WLD,MOTOR MOUNT 48&52

$140.99

$

Usually ships in 3-6 days

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

4

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

6

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 9

7

Exmark 103-2056

SHIELD-DRAG

$67.99

$

In Stock, Qty 7

8

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

10

Exmark 1-633102

BEARING-FLANGE, SIDE

$19.99

$

In Stock, only 3 left!

11

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

12

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

13

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

14

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

15

Exmark 126-2181

ASM, TANK SUPPORT W/ DECA

$331.99

$

Usually ships in 3-6 days

15:2

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

16

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 19

17

Exmark 126-6572

DECAL-S-SERIES

$3.49

$

Usually ships in 3-6 days

18

Exmark 116-9964

BRAKE

$184.99

$

Usually ships in 3-6 days

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

20

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

21

Exmark 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

22

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

23

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

24

Exmark 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 2 left!

25

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 18

26

Exmark 1-413344

BUSHING-PIVOT

$20.99

$

In Stock, only 1 left!

27

Exmark 126-2180

ASM, BRAKE LEVER W/ GRIP

$41.99

$

In Stock, only 2 left!

27:2

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

28

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

29

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

30

Exmark 116-9959

LINKAGE, BRAKE

$41.99

$

In Stock, only 2 left!

31

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

32

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

Usually ships in 3-6 days

39

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 2 left!

40

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

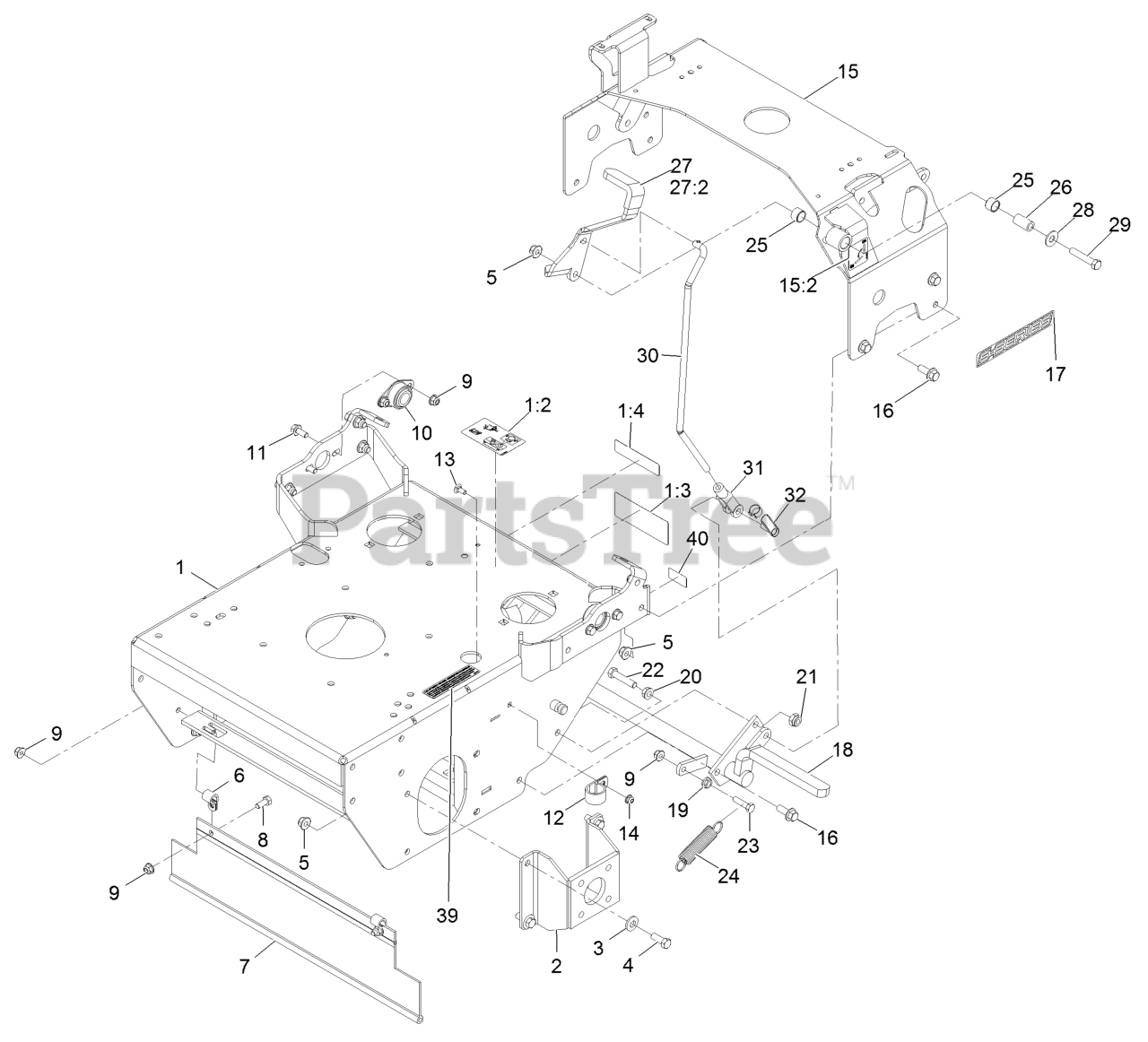

TTS680PKC483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 316000000 - 399999999) (2016) Engine Deck Parts Diagram

Engine Deck Parts Diagram
