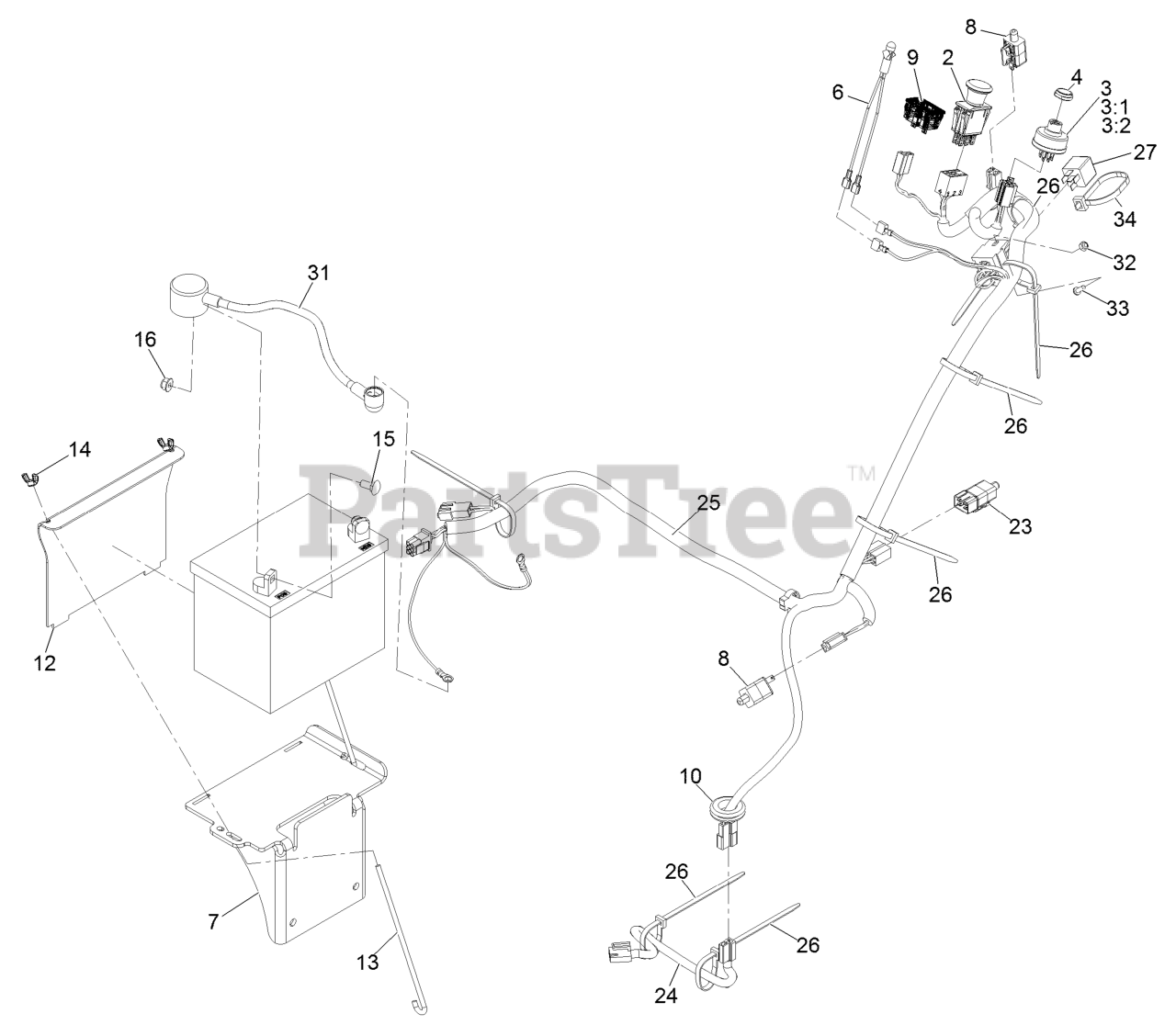

TTS680PKC483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kohler (SN: 316000000 - 399999999) (2016) Electrical Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kohler

Electrical Assembly Parts Diagram

  • Title
2

Exmark 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

3

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$41.99

$

In Stock, Qty 15

0

3:1

Exmark 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

3:2

$3.99

$

In Stock, Qty 10

0

4

Exmark 103-0498

NUT-SWITCH, IGNITION

$2.99

$

In Stock, Qty 6

0

6

Exmark 1-643267

INDICATOR-LED, RED

$23.99

$

In Stock, only 1 left!

0

7

Exmark 126-1470-03

WELD, BATTERY MOUNT

$85.99

$

Usually ships in 3-6 days

0

8

$13.99

$

In Stock, Qty 6

0

9

Exmark 126-3931

METER-HOUR

$64.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

12

Exmark 126-0069-03

BRACKET, BATTERY HOLD DOW

$34.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, only 2 left!

0

14

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

15

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 126-1904

SWITCH, 2 POLE

$10.99

$

In Stock, only 1 left!

0

24

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$13.99

$

In Stock, only 2 left!

0

25

Exmark 126-2985

HARNESS-MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$338.99

$

Usually ships in 3-6 days

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

27

$22.99

$

In Stock, Qty 9

0

30

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

31

Exmark 109-7628

ASM,POSITIVE BATTERY CABL

$26.99

$

In Stock, only 1 left!

0

32

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

$1.49

$

In Stock, Qty 13

0

34

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
