TTS600GKA523E0 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 413950474 - 999999999) (Rev A) (2023) Main Frame Assembly Parts Diagram

52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

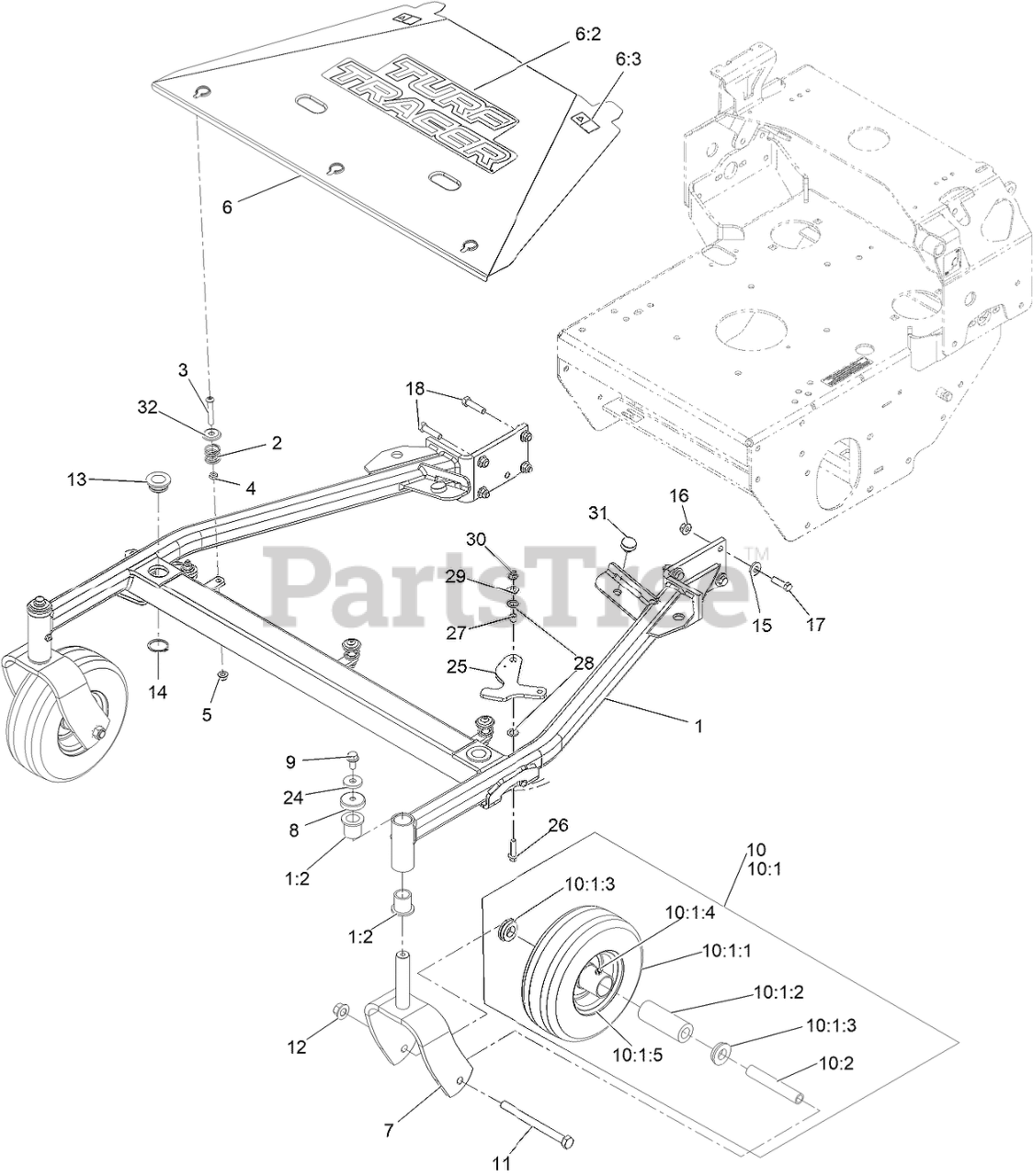

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-7665

ASM-52" Tts Front Frame

$662.99

$

Usually ships in 0 days

0

1:2

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 19

0

2

Exmark 126-1503

SPRING

$2.99

$

In Stock, only 1 left!

0

3

Exmark 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

4

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 142-7660

ASM-52" Tts Center Shield

$188.99

$

Usually ships in 0 days

0

6:2

Exmark 126-6892

DECAL-TURF TRACER

$15.99

$

In Stock, only 4 left!

0

6:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

7

Exmark 116-7941-01

FORK, CASTER

$89.99

$

In Stock, Qty 7

0

8

Exmark 126-1425

CAP, DUST

$3.49

$

In Stock, Qty 5

0

9

Exmark 110-1718

SCREW-HHF

$1.99

$

In Stock, Qty 10

0

10

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

10

Exmark 103-2171

KIT, SP CASTER WHEEL REPLACEMENT

$126.99

$

Usually ships in 3-6 days

0

10:1

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

10:1:1

Tire

Note: Not serviced separately

$

$

Not available

10:1:2

Exmark 1-513809

BEARING

$34.99

$

In Stock, Qty 8

0

10:1:3

Exmark 1-513810

BUSHING

$5.99

$

In Stock, only 2 left!

0

10:1:4

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

10:1:5

Wheel

Note: Not serviced separately

$

$

Not available

10:2

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

11

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

13

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

14

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

15

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

25

Exmark 135-4827-01

LATCH, DECK HEIGHT

$15.99

$

Usually ships in 3-6 days

0

26

Exmark 119-4036

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

27

Exmark 136-7148

Spacer-Grommet

$1.49

$

In Stock, Qty 20+

0

28

Exmark 116-4280

WASHER-CONICAL

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

32

Exmark 66-6310

Washer-Cup

$4.99

$

Usually ships in 3-6 days

0
