TTS600GKA523E0 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) Ground Drive Assembly Parts Diagram

52" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

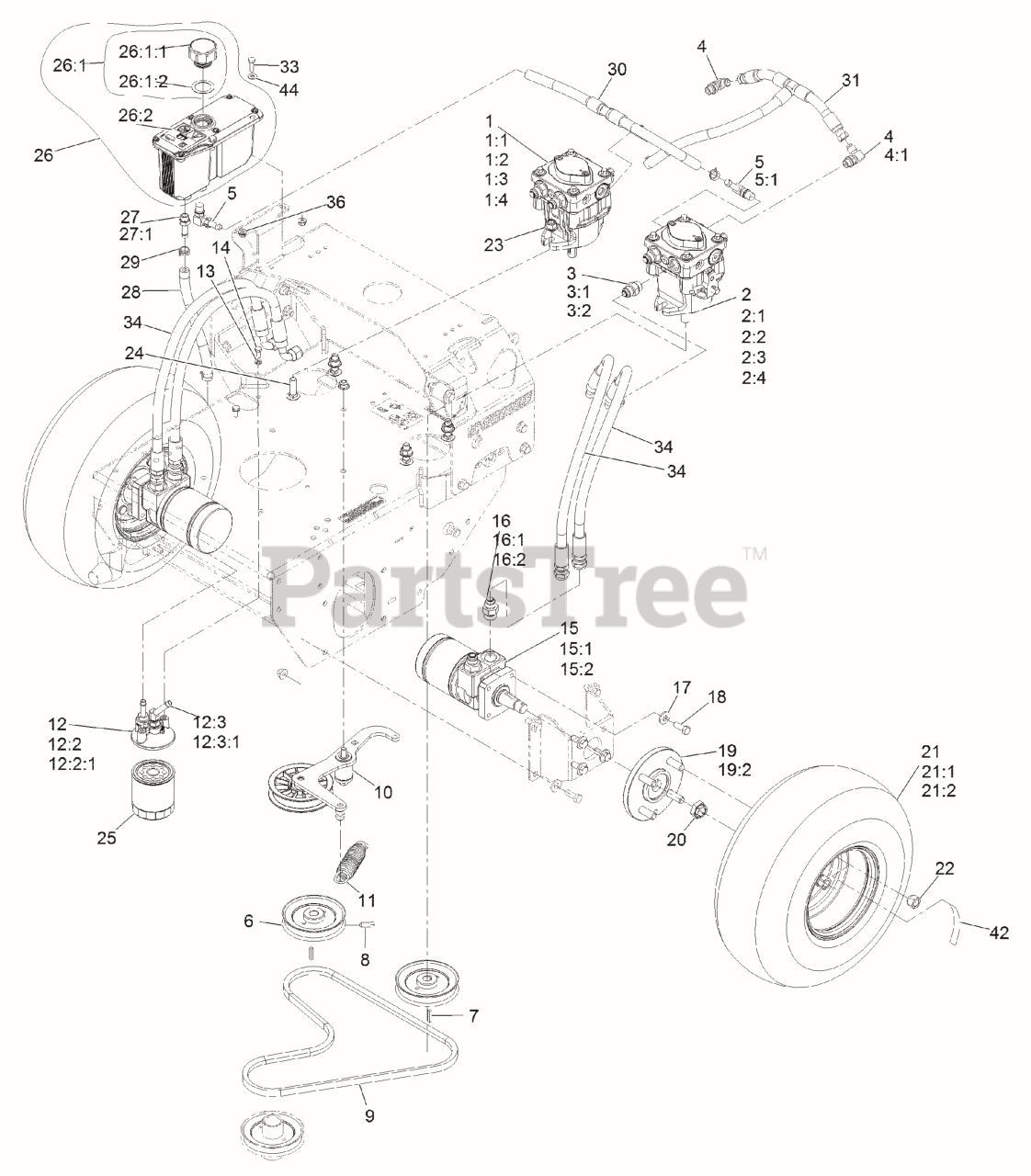

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 116-0943

RH HYD PUMP ASM

$1165.99

$

Usually ships in 3-6 days

0

1:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

1:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

1:3

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

1:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

2

Exmark 116-0942

LH HYD PUMP ASM

$1165.99

$

In Stock, only 1 left!

0

2:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

2:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

2:3

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

2:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

3

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

3:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

3:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

4:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

5:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-413010

SHEAVE ASM

$50.99

$

In Stock, only 2 left!

0

7

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

8

Exmark 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

9

Exmark 103-4761

BELT
(Superseded to 103-4761-SL)

$31.99

$

Usually ships in 3-6 days

0

10

Exmark 126-0615

ASM, PUMP IDLER

$230.99

$

Usually ships in 3-6 days

0

11

Exmark 116-6316

SPRING-EXTENSION

$23.99

$

In Stock, Qty 20+

0

12

Exmark 126-0621

ASM, FILTER HEAD

$79.99

$

In Stock, only 2 left!

0

12:2

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

12:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

12:3

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

12:3:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

14

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

15:1

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

15:2

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 4 left!

0

16:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

16:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

18

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Exmark 112-9049

WHEEL HUB ASM

$188.99

$

In Stock, only 2 left!

0

19:2

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

20

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

21

Exmark 1-613263

WHEEL AND TIRE ASM

$195.99

$

Usually ships in 3-6 days

0

21:1

Exmark 1-613264

TIRE-TURFMASTER

$152.99

$

Usually ships in 3-6 days

0

21:2

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

22

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

23

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

24

Exmark 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

25

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$49.99

$

In Stock, Qty 13

0

26

Exmark 126-1248

116-2066
(Superseded to 116-2066)

Note: Use Exmark Premium Hydro Oil P/N 109-9828 (32oz)

$191.99

$

Usually ships in 3-6 days

0

26:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

26:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

26:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

26:2

Exmark 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

27

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

27:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

28

Exmark 103-2959

HOSE-CHARGE

$8.49

$

Usually ships in 3-6 days

0

29

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

30

Exmark 126-0623

HOSE-CASE DRAIN

$38.99

$

In Stock, only 1 left!

0

31

Exmark 126-0622

HOSE-CHARGE

$62.99

$

Usually ships in 3-6 days

0

33

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

34

Exmark 119-7827

HYD HOSE ASM

$78.99

$

In Stock, only 2 left!

0

36

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

42

Exmark 126-2056

DECAL-TORQUE WHEEL LUG-HU

$10.99

$

Usually ships in 3-6 days

0
