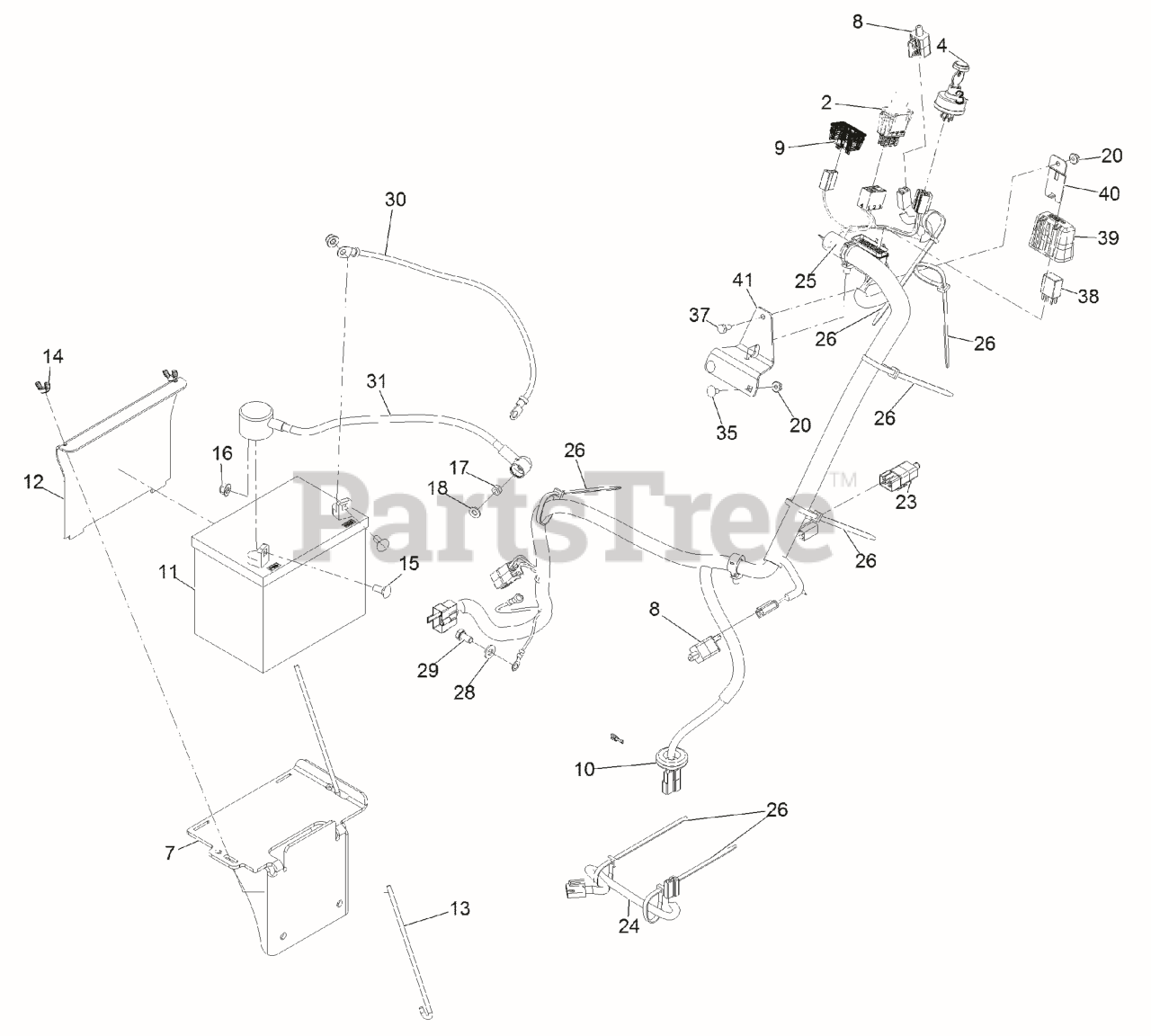

TTS600GKA483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) Electrical Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

Electrical Assembly Parts Diagram

  • Title

2

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

3

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 20+

0

3:1

Exmark 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3:2

Exmark 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

4

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

7

Exmark 126-1470-03

WELD, BATTERY MOUNT

$90.99

$

Usually ships in 3-6 days

0

8

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

9

Exmark 126-3931

METER-HOUR

$67.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

12

Exmark 126-0069-03

BRACKET, BATTERY HOLD DOW

$36.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

14

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

15

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

18

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Exmark 126-1904

SWITCH, 2 POLE

$11.99

$

In Stock, only 1 left!

0

24

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$15.99

$

In Stock, only 2 left!

0

25

Exmark 126-0626

HARNESS-MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$297.99

$

Usually ships in 3-6 days

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

27

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

28

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

29

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

30

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

31

Exmark 109-7628

ASM,POSITIVE BATTERY CABL

$30.99

$

In Stock, only 1 left!

0

32

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

34

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
