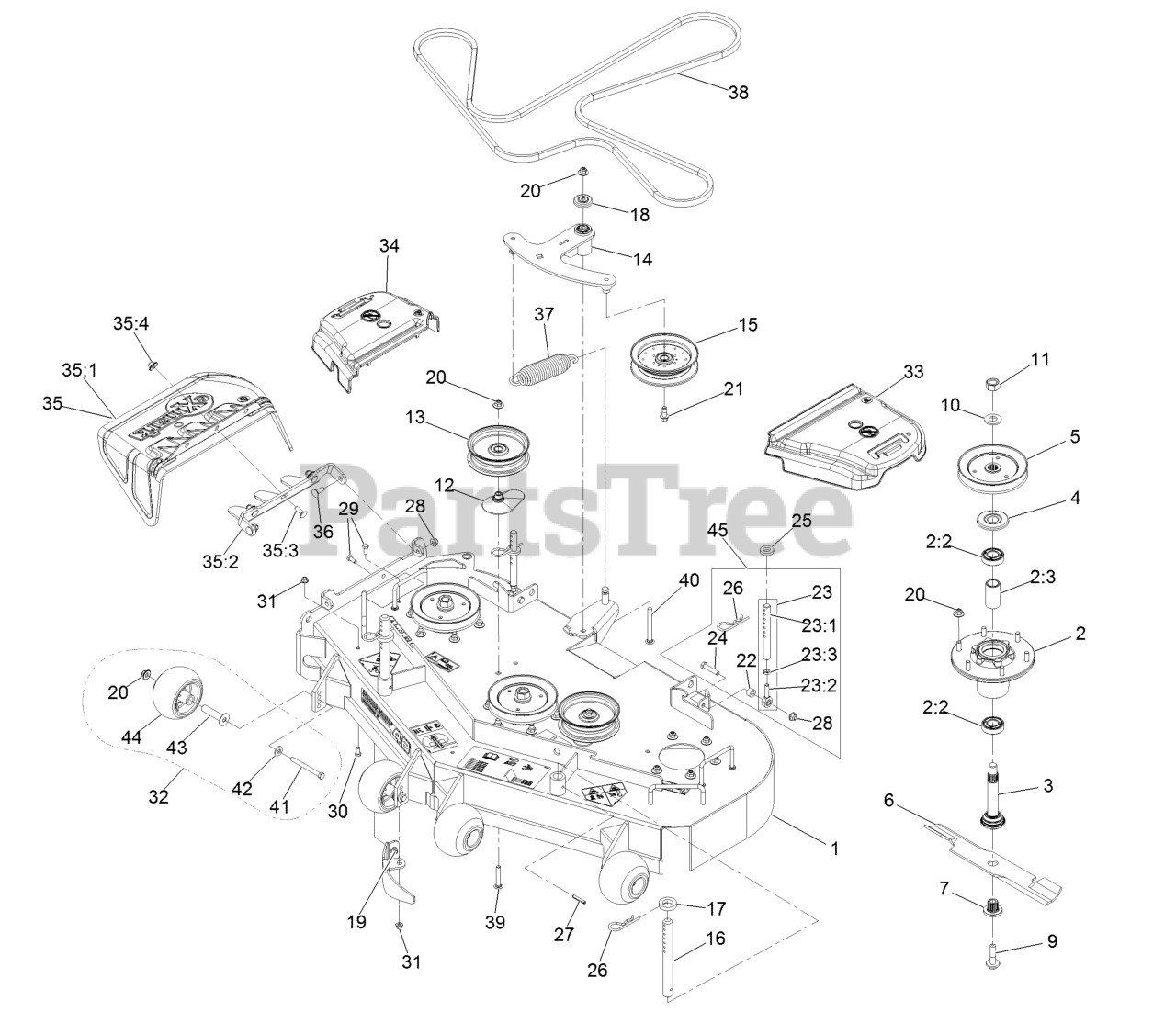

TTS541CKA48300 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-0781

ASM, Deck 48" W/Decals

$2547.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

3

Exmark 116-3342

ASM-Spindle And Seal

$85.99

$

In Stock, only 1 left!

0

4

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 20+

0

5

Exmark 116-0674

Sheave,Blade Drive 5.90

$76.99

$

In Stock, only 1 left!

0

6

Exmark 116-5177

Blade-Extreme 2, 16.25"
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

6

Exmark 103-6401

Blade-Notched
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6391

Blade, Mulching
(Superseded to 103-6391-S)

$31.99

$

In Stock, Qty 20+

0

6

Exmark 103-6386

Blade, Low Lift
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6381

Blade, Solid
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

7

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

9

Exmark 109-9220

Screw,Sems (1/2-20 X 2.19 GR5)

$8.49

$

In Stock, Qty 20+

0

10

Exmark 103-2802

Washer

$5.49

$

In Stock, Qty 14

0

11

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

12

Exmark 109-2872

Spacer-Pulley

$22.99

$

In Stock, only 2 left!

0

13

Exmark 116-4669

Idler-Pulley, Flat

$79.99

$

In Stock, Qty 20+

0

14

Exmark 126-2314

ASM, Deck Idler

$185.99

$

In Stock, only 1 left!

0

15

Exmark 116-4668

Idler-Pulley, Flanged
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 20+

0

16

Exmark 1-603001

Rod, Deck Support

$45.99

$

In Stock, only 3 left!

0

17

Exmark 1-413425

Spacer-Deck Support

$6.49

$

In Stock, Qty 14

0

18

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

19

Exmark 126-2782-01

Baffle, Dogleg

$45.99

$

Usually ships in 3-6 days

0

20

Exmark 109-6658

Nut-Flange, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 126-1680

Screw-Hfh

$1.99

$

In Stock, Qty 11

0

22

Exmark 1-603050

Spacer

$7.99

$

In Stock, only 2 left!

0

23

Exmark 1-414521

Link Assy
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

23:1

Exmark 1-413525

Link, Rear Deck Support

$44.99

$

In Stock, only 2 left!

0

23:2

Exmark 1-613204

Balljoint

$31.99

$

In Stock, only 2 left!

0

23:3

Exmark 3220-3

Nut-HJ

$0.99

$

In Stock, Qty 17

0

24

Exmark 323-9

Screw-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-323539

Spacer

$2.49

$

In Stock, Qty 20+

0

26

Exmark 1-806009

Hairpin, .177

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-806332

Roll Pin, 1/4 X 1-1/2
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

28

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Exmark 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

30

Exmark 322-2

Screw-HH

$2.49

$

In Stock, Qty 13

0

31

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

32

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0

33

Exmark 109-6936

Cover-Belt, LH

$38.99

$

In Stock, only 1 left!

0

34

Exmark 109-6935

Cover-Belt, RH

$38.99

$

In Stock, only 1 left!

0

35

Exmark 126-0959

ASM, Discharge Chute

$101.99

$

Usually ships in 3-6 days

0

35:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 20+

0

35:2

Exmark 126-0958-01

Bracket, Discharge Chute

$46.99

$

Usually ships in 3-6 days

0

35:3

Exmark 3231-22

Screw-CARR

$3.49

$

In Stock, Qty 20+

0

35:4

Exmark 109-6658

Nut-Flange, NI

$1.49

$

In Stock, Qty 20+

0

36

Exmark 3231-22

Screw-CARR

$3.49

$

In Stock, Qty 20+

0

37

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

38

Exmark 126-0783

Belt, Deck
(Superseded to 126-0783-SL)

$112.99

$

In Stock, Qty 20+

0

39

Exmark 3231-40

Bolt-CARR, Short Neck

$2.99

$

In Stock, only 2 left!

0

40

Exmark 3231-24

Screw-CARR

$14.99

$

Usually ships in 3-6 days

0

41

Exmark 116-9362

Screw-HH

$2.99

$

In Stock, Qty 17

0

42

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

43

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 12

0

44

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 20+

0

45

Exmark 1-411532

Kit, Support Link W/Pin

$147.99

$

In Stock, Qty 5

0
