TTS481KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB (SN: 313000000 - 313999999) (2013) Hydraulic Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kaw, CARB

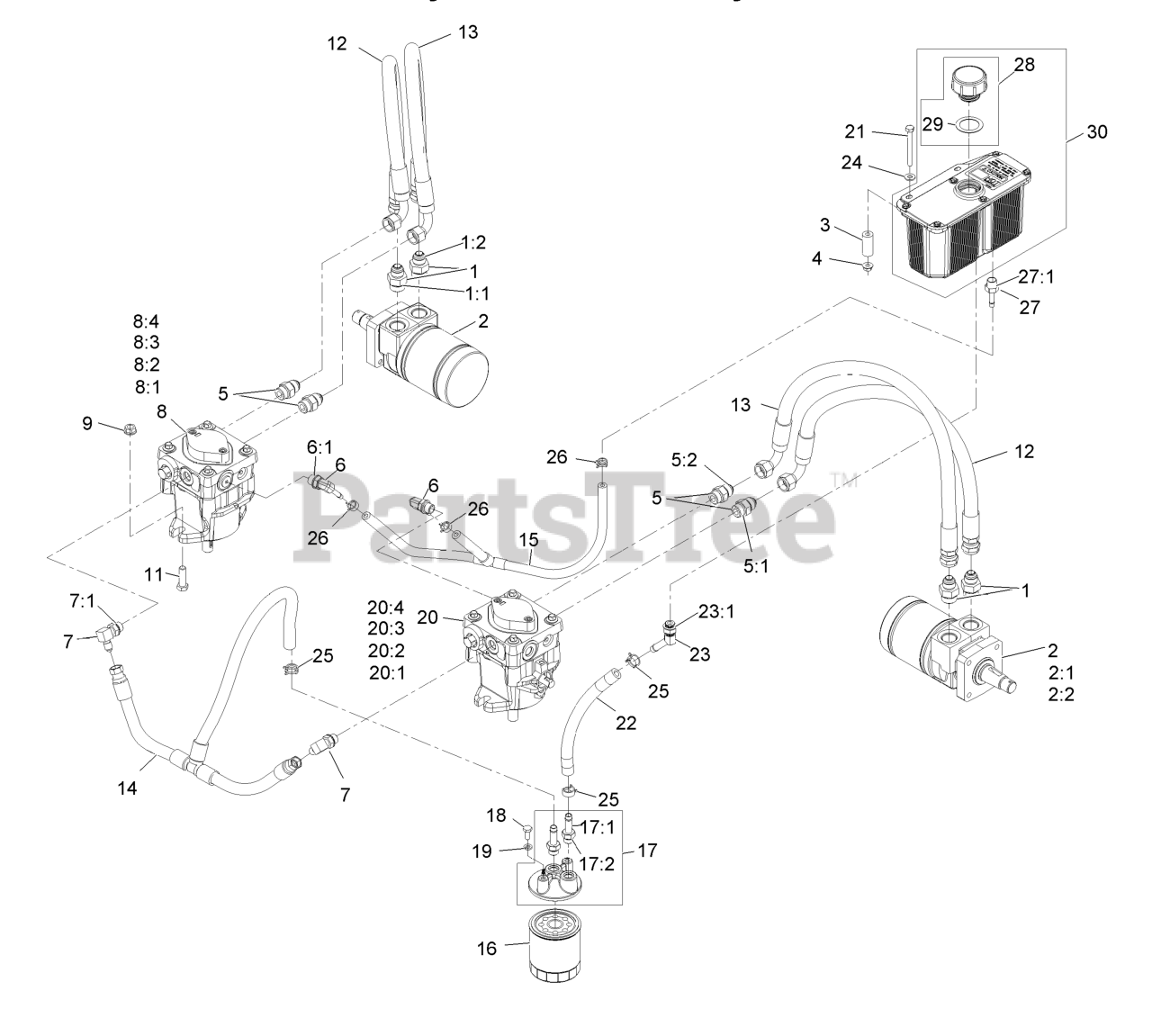

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 4 left!

0

1:1

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

1:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

2:1

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

2:2

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

3

Exmark 103-2191

SPACER

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 12

0

5:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

5:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 2 left!

0

6:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

7:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 116-0942

LH HYD PUMP ASM

$1165.99

$

In Stock, only 1 left!

0

8:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

8:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

8:3

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

8:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

9

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

11

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 119-7827

HYD HOSE ASM

$78.99

$

In Stock, only 2 left!

0

13

Exmark 119-7826

HYD HOSE ASM

$88.99

$

Usually ships in 3-6 days

0

14

Exmark 116-2123

CHARGE HOSE ASM

$60.99

$

Usually ships in 3-6 days

0

15

Exmark 116-0918

CASE DRAIN HOSE ASM

$37.99

$

Usually ships in 3-6 days

0

16

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$49.99

$

In Stock, Qty 13

0

16

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32degF (0degC).

$49.99

$

In Stock, only 1 left!

0

17

Exmark 103-2889

FILTER HEAD ASM

$107.99

$

Usually ships in 3-6 days

0

17:1

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

17:2

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

18

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

20

Exmark 116-0943

RH HYD PUMP ASM

$1165.99

$

Usually ships in 3-6 days

0

20:1

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

20:2

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

20:3

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

20:4

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

21

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

22

Exmark 103-2959

HOSE-CHARGE

$8.49

$

Usually ships in 3-6 days

0

23

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

23:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 8

0

27

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

27:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$32.99

$

In Stock, Qty 20+

0

29

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-1947

HYD RESERVOIR ASM

$263.99

$

Usually ships in 3-6 days

0
