TTS481KA363 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS (SN: 312000000 - 312999999) (2012) Engine Deck Assembly (cont.) Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki FS

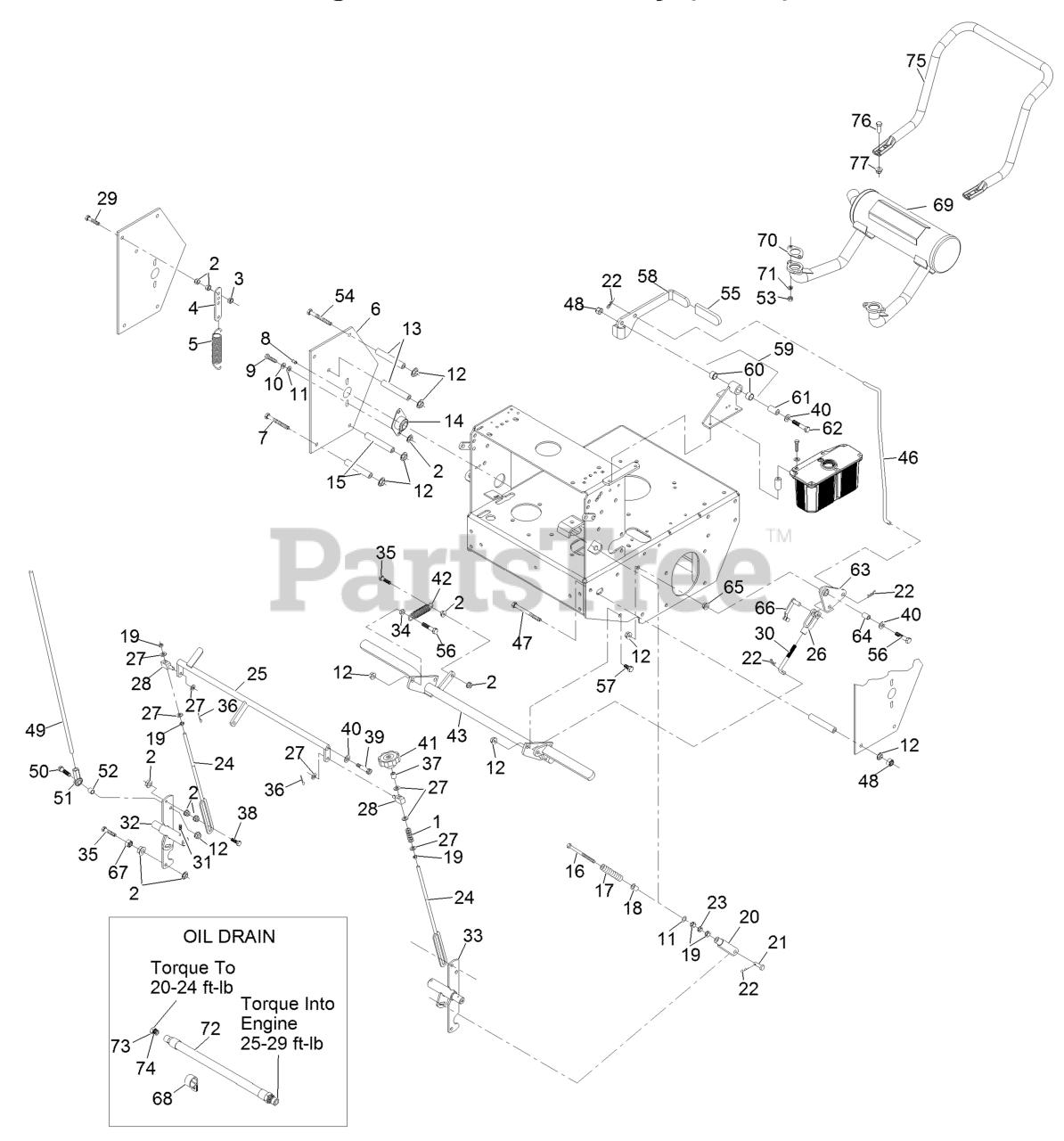

Engine Deck Assembly (cont.) Parts Diagram

  • Title

1

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

5

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

6

Exmark 110-4897-01

SHIELD-CONTROL

$103.99

$

Usually ships in 3-6 days

0

7

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

8

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

11

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-323195-01

SPACER-SHIELD

$7.99

$

In Stock, only 2 left!

0

14

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

15

Exmark 1-323197-01

SPACER-SHIELD

$7.99

$

In Stock, Qty 16

0

16

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

17

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$5.49

$

In Stock, only 1 left!

0

18

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

19

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

20

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

21

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

0

25

Exmark 1-412203-01

CRANK-CONTROL, SPEED

$158.99

$

Usually ships in 3-6 days

0

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

29

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 1-413489

LINKAGE-LOWER

$22.99

$

In Stock, only 1 left!

0

31

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 20+

0

32

Exmark 103-1190-01

SHAFT-CONTROL, LH

$173.99

$

Usually ships in 3-6 days

0

33

Exmark 103-4796-01

SHAFT-CONTROL, RH

$136.99

$

Usually ships in 3-6 days

0

34

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

35

Exmark 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

37

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 2 left!

0

38

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-809056

SCREW-HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$7.99

$

In Stock, only 2 left!

0

40

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

41

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

42

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

43

Exmark 103-2085-03

126-1599
(Superseded to 126-1599)

$174.99

$

Usually ships in 3-6 days

0

46

Exmark 1-413492

LINKAGE,UPPER- TTHP

$57.99

$

In Stock, only 3 left!

0

47

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

49

Exmark 103-1148

LINK,DRIVE (PLTD)

$18.99

$

In Stock, only 3 left!

0

50

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

52

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$6.49

$

In Stock, only 3 left!

0

53

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

54

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

55

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

58

Exmark 103-3495

LEVER,PARK BRK W/DECAL

$80.99

$

Usually ships in 3-6 days

0

59

Exmark 1-414504

BRACKET ASM

$90.99

$

Usually ships in 3-6 days

0

60

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

61

Exmark 1-413344

BUSHING-PIVOT

$19.99

$

In Stock, only 2 left!

0

62

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

63

Exmark 1-414508

BELLCRANK ASM

$62.99

$

Usually ships in 3-6 days

0

64

Exmark 1-303548

BUSHING-PLASTIC

$5.49

$

In Stock, only 2 left!

0

65

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

66

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 14

0

67

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

68

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

69

Exmark 116-3735

MUFFLER-HORIZONTAL

$210.99

$

Usually ships in 3-6 days

0

70

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

71

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

72

Exmark 116-5052

ASM, ENGINE OIL DRAIN HOS

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$52.99

$

In Stock, only 1 left!

0

73

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

74

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

75

Exmark 116-6278-03

GUARD-MUFFLER
(Superseded to 135-4729-03)

$85.99

$

Usually ships in 3-6 days

0

76

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

77

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+
