TTS481GKA48300 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 413950474 - 999999999) (Rev A) (2023) Fuel Tank Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

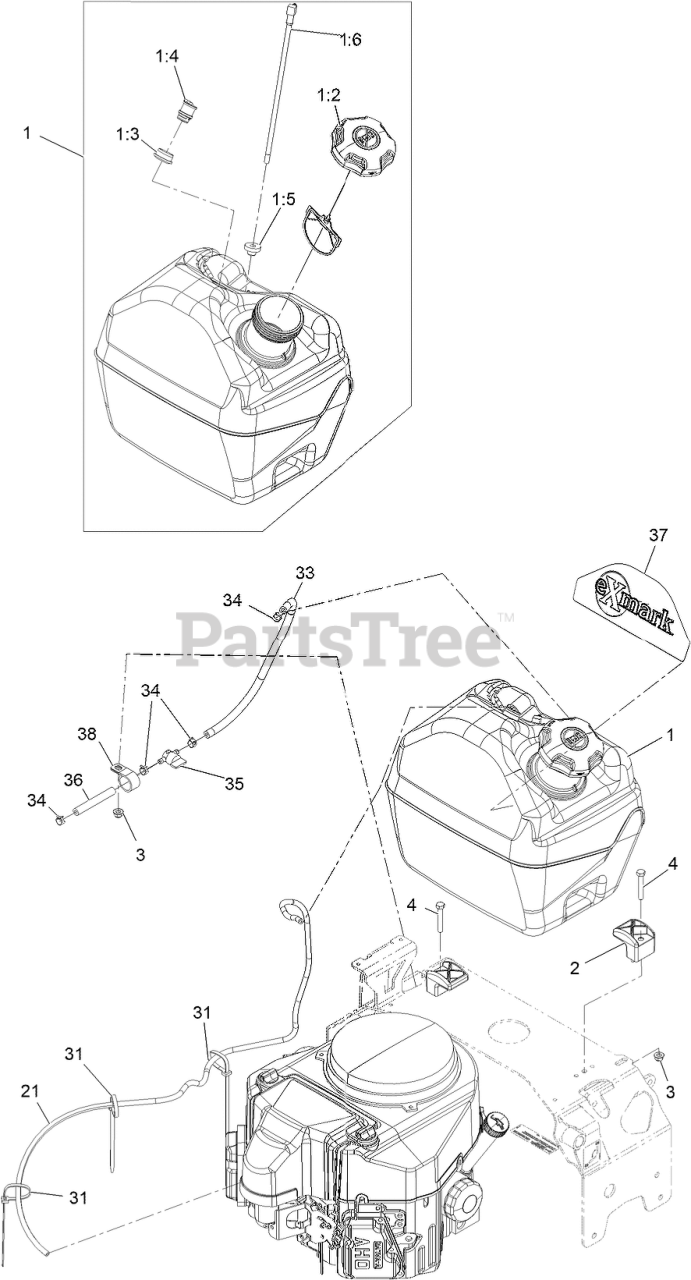

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 140-4343

Fuel Tank ASM, 5 Gal

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$26.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

1:6

Exmark 109-9364

FITTING, FUEL W/LINE AND SCREEN
(Superseded to 116-2459)

$39.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

21

Exmark 116-3716

HOSE-VENT

$16.99

$

Usually ships in 3-6 days

0

31

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

33

Exmark 114-4428

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

34

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 8

0

36

Exmark 105-8342

HOSE-FUEL

$6.49

$

In Stock, only 4 left!

0

37

Exmark 135-2822

Artwork-Exmark Logo Fuel Tank

$

$

Currently unavailable

38

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0
