TTS481GKA48300 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Handle Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

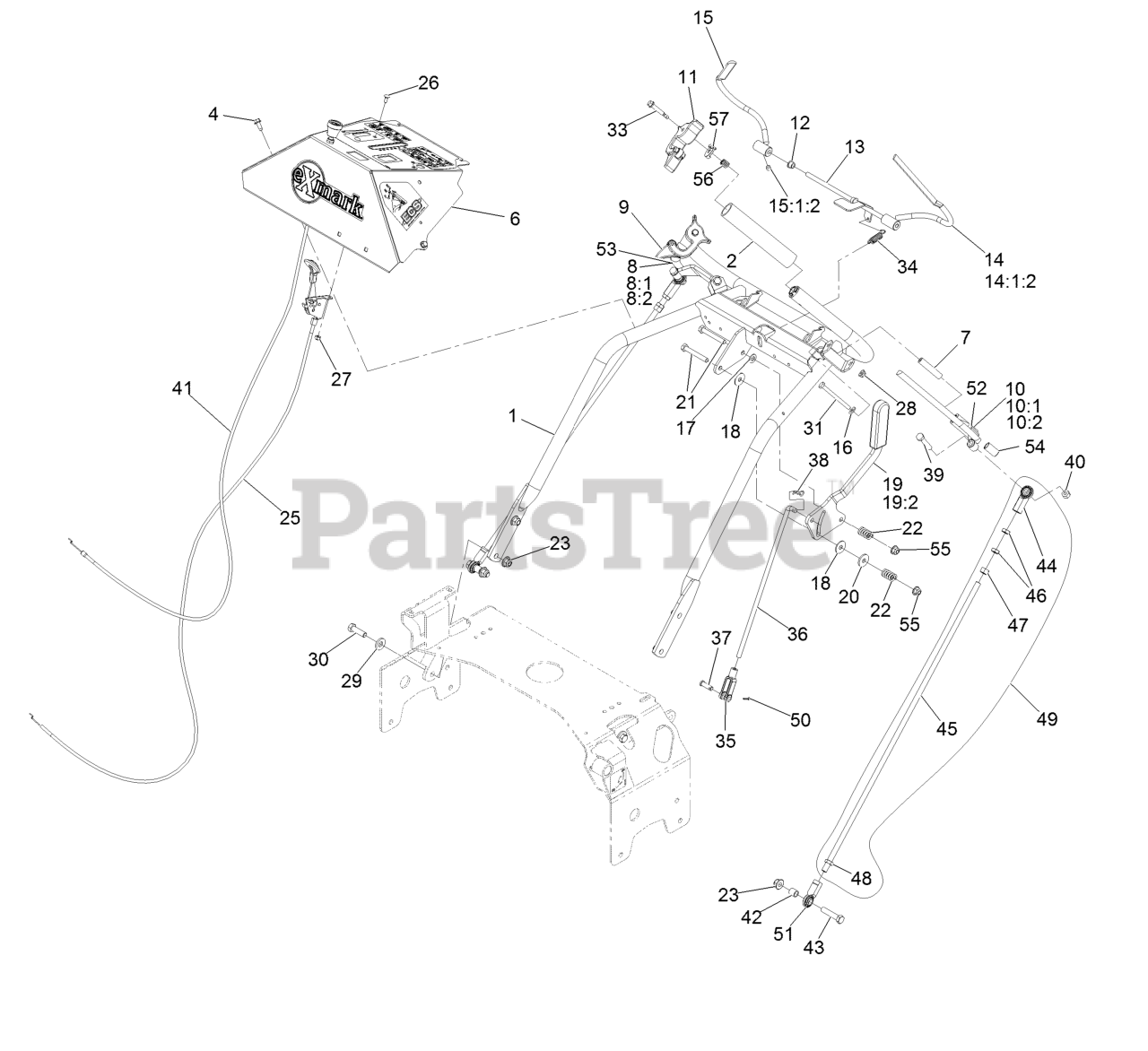

Handle Assembly Parts Diagram

  • Title

1

Exmark 126-2642-03

Weld, Handle

$468.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0815

Grip-Bar, Handle

$12.99

$

In Stock, Qty 11

0

4

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, only 2 left!

0

6

Exmark 126-4706

ASM, Console W/ Decals

$142.99

$

Usually ships in 3-6 days

0

7

Exmark 103-0027

Bushing-Lever, Drive

$21.99

$

In Stock, only 3 left!

0

8

Exmark 103-2513

Asm, Drive Lever RH

$140.99

$

In Stock, only 1 left!

0

8:1

Exmark 116-4082

Wld,RH Drive Lever

$56.99

$

Usually ships in 3-6 days

0

8:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 103-1371

Thumb Latch Asm RH

$32.99

$

In Stock, Qty 6

0

10

Exmark 103-2514

Asm, Drive Lever LH

$140.99

$

In Stock, only 4 left!

0

10:1

Exmark 116-4081

Wld,LH Drive Lever

$56.99

$

In Stock, only 1 left!

0

10:2

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1372

Thumb Latch Asm LH

$32.99

$

In Stock, only 2 left!

0

12

Exmark 1-303365

Bushing-Nylon

$5.49

$

In Stock, Qty 20+

0

13

Exmark 103-0769-03

Rod Weldment, OPC

$47.99

$

In Stock, Qty 20+

0

14

Exmark 116-4079

Wld,LH OPC Lever

$37.99

$

In Stock, Qty 13

0

14:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-4080

Wld,RH OPC Lever

$37.99

$

In Stock, Qty 12

0

15:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-323244

Washer-Friction
(Superseded to 93-1633)

$2.99

$

In Stock, only 4 left!

0

19

Exmark 126-0148

Lever, Shift W/Grip

$56.99

$

In Stock, only 2 left!

0

19:2

Exmark 103-5994

Grip-Handle, Steering

$14.99

$

In Stock, only 2 left!

0

20

Exmark 1-603716

Washer-Friction Disc

$5.49

$

In Stock, Qty 20+

0

21

Exmark 322-11

Screw-HH 5/16-18 X 2 1/4
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

22

Exmark 1-323245

Spring-Compression

$6.99

$

In Stock, Qty 12

0

23

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

25

Exmark 109-3958

Control-Throttle

$43.99

$

In Stock, Qty 5

0

26

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

28

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

29

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

30

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

31

Exmark 321-14

Screw-HH 1/4-20 X 2 3/4

$4.99

$

In Stock, Qty 12

0

33

Exmark 126-2931

Screw-Shoulder

$2.99

$

In Stock, Qty 11

0

34

Exmark 1-303363

Spring-Extension

$6.99

$

In Stock, Qty 14

0

35

Exmark 1-303105

Yoke-Adjustable

$13.99

$

In Stock, only 2 left!

0

36

Exmark 1-413225

Rod, Speed Control

$16.99

$

In Stock, only 3 left!

0

37

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, Qty 17

0

38

Exmark 1-806003

Hairpin-Cotter

$1.99

$

In Stock, Qty 20+

0

39

Exmark 322-9

Screw-HH 5/16-18 X 1 3/4

$3.99

$

In Stock, Qty 20+

0

40

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

41

Exmark 126-2107

Cable, Choke

$46.99

$

In Stock, only 1 left!

0

42

Exmark 103-1166

Spacer-Tube, Pump Link

$6.99

$

In Stock, only 3 left!

0

43

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

44

Exmark 103-2463

Balljoint

$29.99

$

In Stock, only 4 left!

0

45

Exmark 103-1148

Rod,Drive Lever

$21.99

$

In Stock, Qty 5

0

46

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 5

0

47

Exmark 3219-3

Nut-Hex 3/8-24

$1.99

$

In Stock, Qty 20+

0

48

Exmark 3220-16

Nut-Jam 3/8-24 LH

$2.49

$

In Stock, only 2 left!

0

49

Exmark 116-3414

Drive Link ASM

$37.99

$

In Stock, only 2 left!

0

50

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.99

$

In Stock, only 4 left!

0

51

Exmark 103-1167

Joint-Ball End

$34.99

$

In Stock, Qty 8

0

52

Exmark 116-4081

Wld,LH Drive Lever

$56.99

$

In Stock, only 1 left!

0

53

Exmark 116-4082

Wld,RH Drive Lever

$56.99

$

Usually ships in 3-6 days

0

54

Exmark 126-9366

Bushing, Sleeve

$2.99

$

Usually ships in 3-6 days

0

55

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

56

Exmark 1-633349

Spring-Compression

$5.49

$

In Stock, Qty 16

0

57

Exmark 126-2921

Latch, Ecs

$12.99

$

In Stock, Qty 8

0
