TTS481GKA48300 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 315000000 - 315999999) (2015) Fuel Tank Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

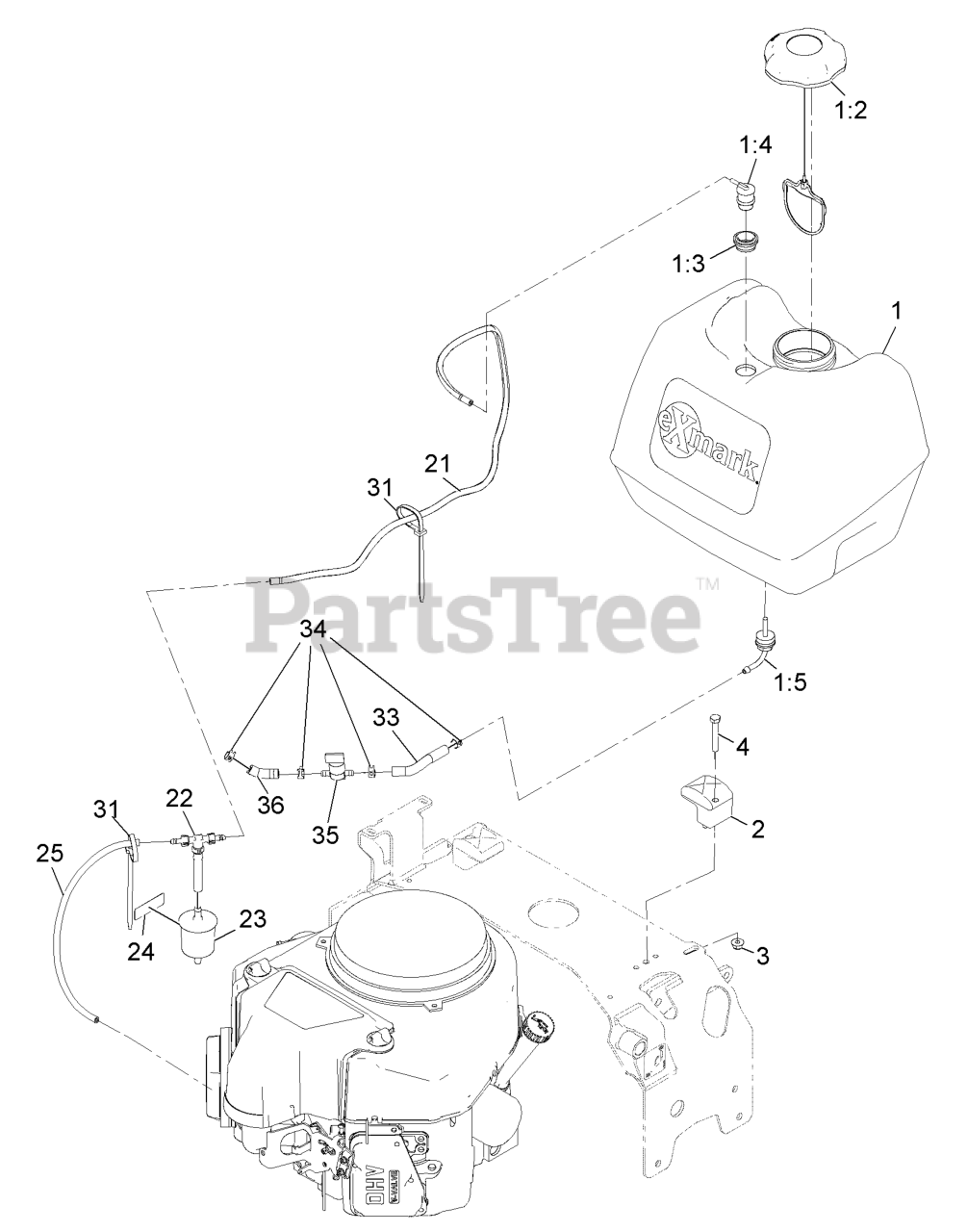

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 126-1525

ASM, FUEL TANK
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$36.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

21

Exmark 126-1679

HOSE, EMISSIONS

$14.99

$

Usually ships in 3-6 days

0

22

Exmark 116-5464

TEE AND CHECK

$46.99

$

In Stock, only 1 left!

0

23

Exmark 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

24

Exmark 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0

25

Exmark 115-7872

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

31

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

33

Exmark 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

34

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

36

Exmark 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0
