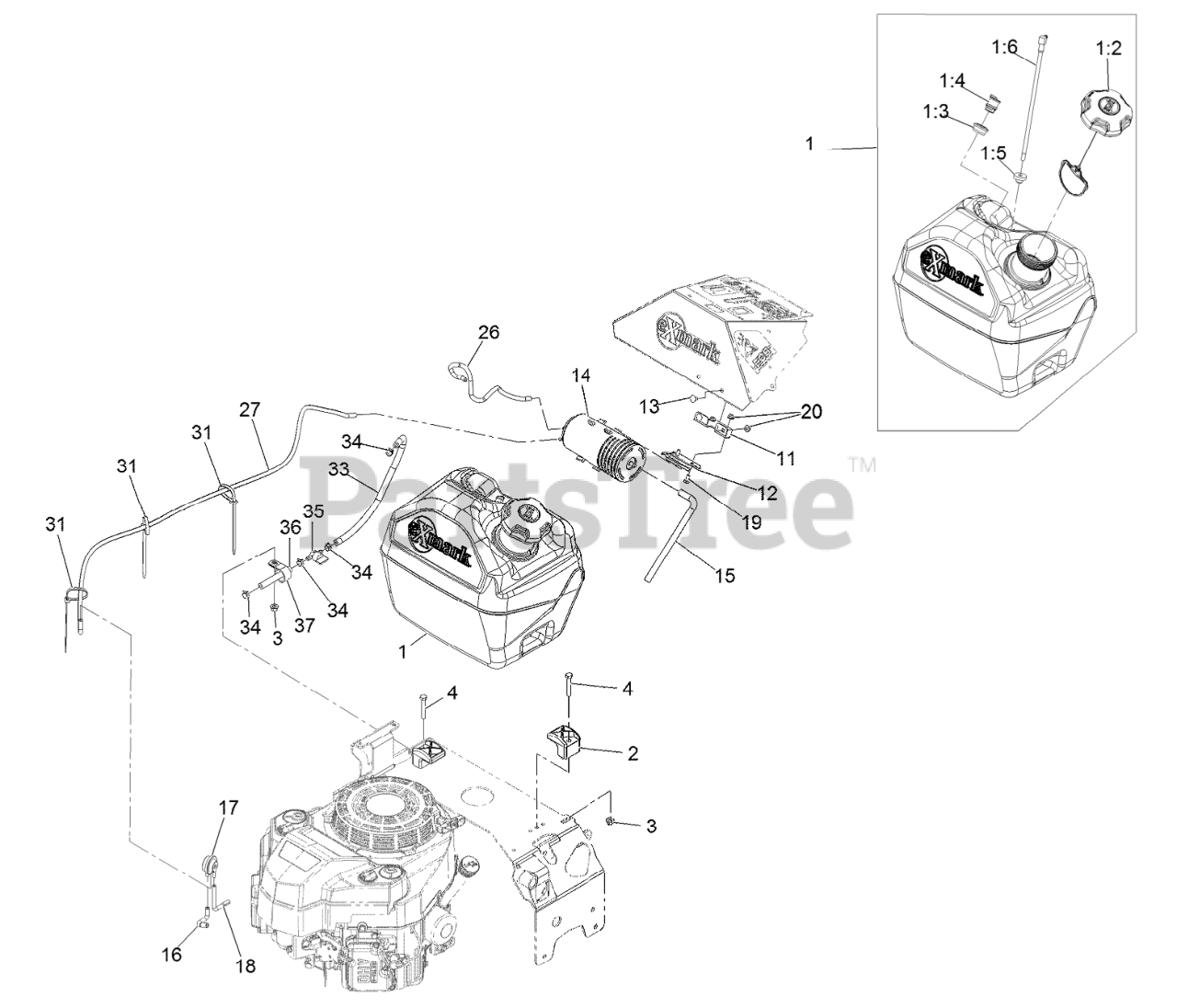

TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019) Fuel Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

Fuel Assembly Parts Diagram

  • Title
1

Exmark 135-2855

ASM, FUEL TANK 5 GAL
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

1:6

Exmark 109-9364

116-2459
(Superseded to 116-2459)

$41.99

$

In Stock, only 2 left!

0

2

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

11

Exmark 115-4486-01

BRACKET-CANISTER, CARBON

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

14

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

15

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

16

Exmark 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

18

Exmark 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

20

$1.49

$

In Stock, Qty 20+

0

26

Exmark 116-4801

HOSE-EMISSIONS

$8.49

$

Usually ships in 3-6 days

0

27

Exmark 116-3116

HOSE-VENT, FORMED

$15.99

$

Usually ships in 3-6 days

0

31

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

33

Exmark 114-4428

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

34

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

36

Exmark 105-8342

HOSE-FUEL

$6.49

$

In Stock, only 4 left!

0

37

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0
